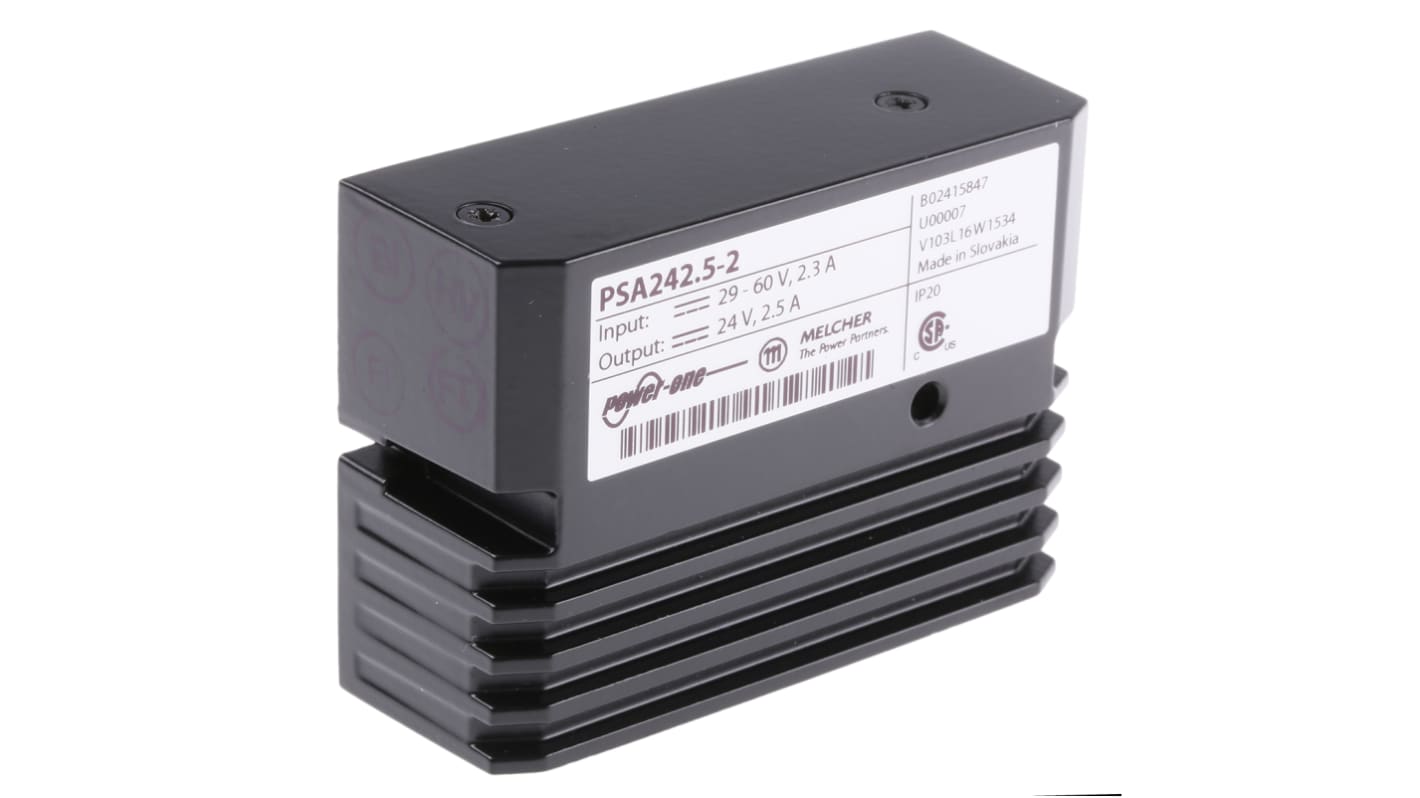

BEL POWER SOLUTIONS INC Switching Regulator, 29 → 60V dc Input, 24V dc Output, 2.5A

  • RS Stock No. 466-7540
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PSA242.5-2G
  • ผู้ผลิต / Manufacturer BEL POWER SOLUTIONS INC
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
ไม่สอดคล้อง
COO (Country of Origin): SK
รายละเอียดสินค้า / Product Details

Positive Switching Regulators

Wide input voltage range
High current output
High efficiency
Low input to output differential voltage
Very good dynamic properties
Input undervoltage lock-out
Parallel configurations possible
Continuous no-load and short-circuit proof
No derating

Standards

UL 1950, UL 1012, EN60950

//media.rs-online.com/t_line/L466751-01.gif
//media.rs-online.com/t_line/LF466751-01.gif
คุณสมบัติ / Specifications
คุณสมบัติ Value
Input Voltage 29 → 60V dc
Output Voltage 24V dc
Number of Outputs 1
Output Current 2.5A
Power Rating 60W
Mounting Type Screw Mount
Minimum Temperature -10°C
Maximum Temperature +50°C
Length 50.2mm
Width 70.2mm
Depth 25.2mm
