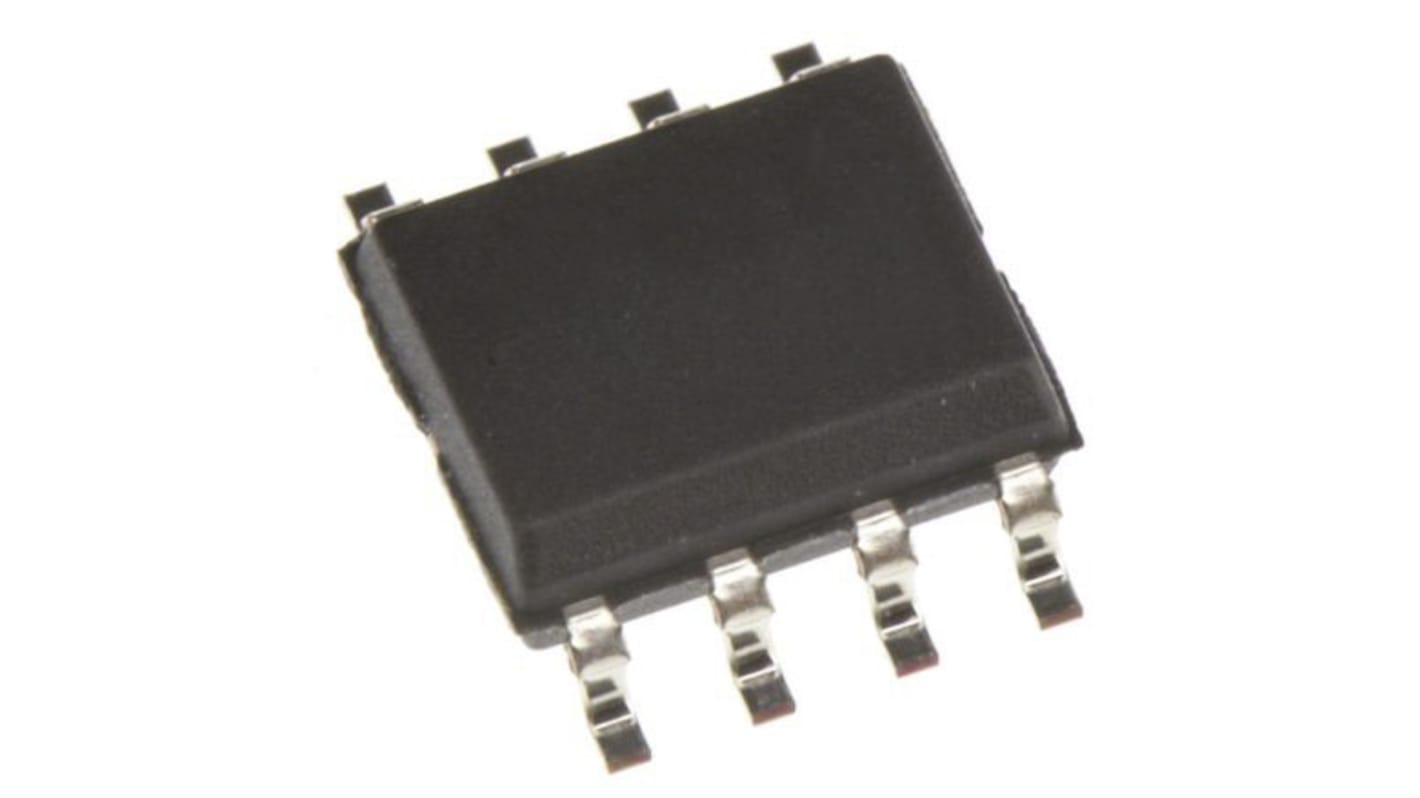

Maxim Integrated Switching Regulator, Surface Mount, 4.8 → 5.2V dc Output Voltage, 2.5V dc Input Voltage, 1
- RS Stock No.:
- 190-7989P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX756CSA+
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
88 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (Supplied in a Tube)
THB209.03
(exc. VAT)
THB223.66
(inc. VAT)
Units | Per unit |
2 + | THB209.03 |
- RS Stock No.:
- 190-7989P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX756CSA+
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
Operates Down to 0.7V Input Supply Voltage
87% Efficiency at 200mA
60μA Quiescent Current
20μA Shutdown Mode with Active Reference and LBI Detector
500kHz Maximum Switching Frequency
±1.5% Reference Tolerance Over Temperature
Low-Battery Detector (LBI/LBO)
8-Pin DIP and SO Packages
Applications
2-Cell and 3-Cell Battery-Operated Equipment
3.3V to 5V Step-Up Conversion
Glucose Meters
Medical Instrumentation
Palmtop Computers
Personal Data Communicators/Computers
Portable Data-Collection Equipment
87% Efficiency at 200mA
60μA Quiescent Current
20μA Shutdown Mode with Active Reference and LBI Detector
500kHz Maximum Switching Frequency
±1.5% Reference Tolerance Over Temperature
Low-Battery Detector (LBI/LBO)
8-Pin DIP and SO Packages
Applications
2-Cell and 3-Cell Battery-Operated Equipment
3.3V to 5V Step-Up Conversion
Glucose Meters
Medical Instrumentation
Palmtop Computers
Personal Data Communicators/Computers
Portable Data-Collection Equipment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Output Voltage | 4.8 → 5.2V dc |
Input Voltage | 2.5V dc |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Efficiency | 87% |
Maximum Temperature | +70°C |
Minimum Temperature | 0°C |
Width | 4mm |
Special Features | Low-Battery Detector |
Length | 5mm |
Depth | 1.5mm |
Power Signal Conversion Type | DC-DC |
Switching Frequency Range | 500kHz |
