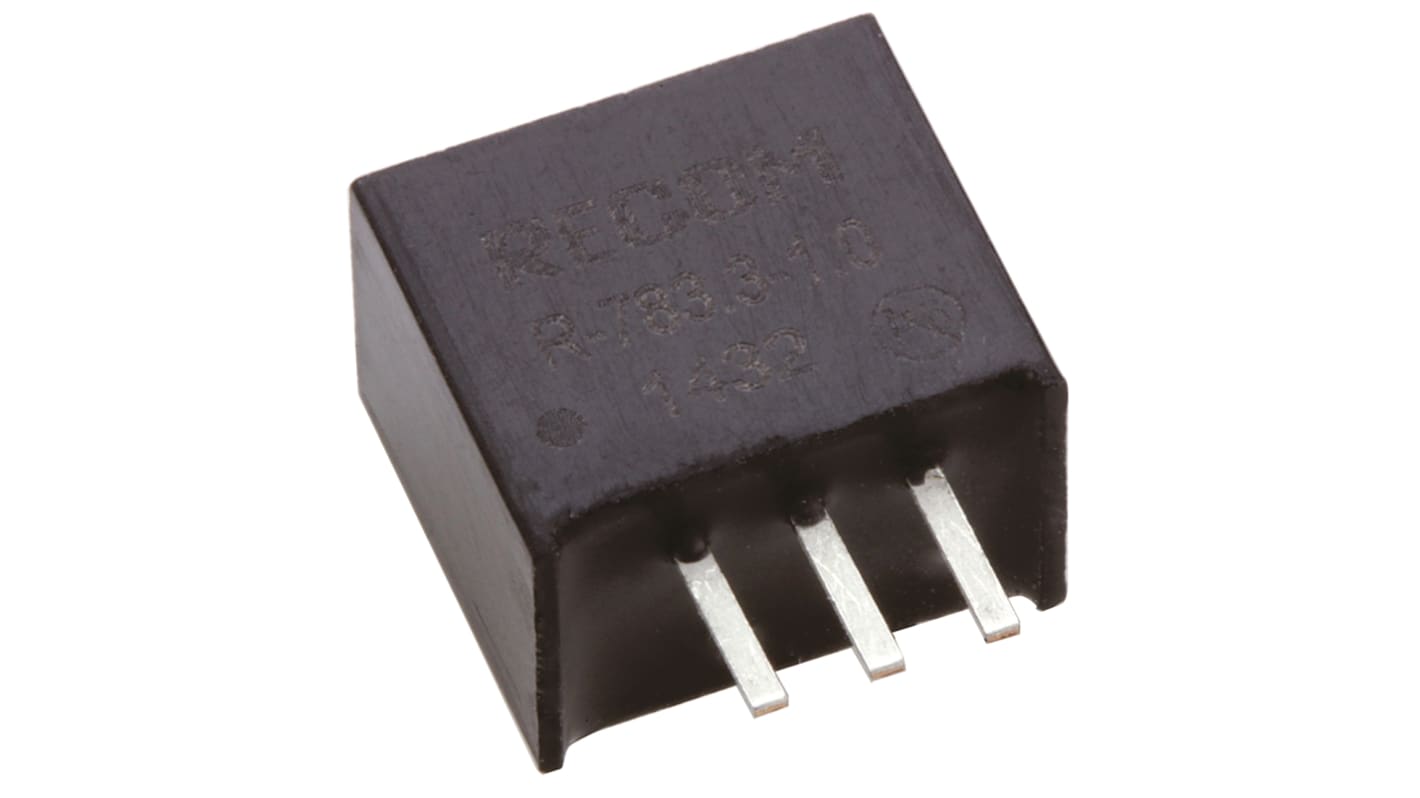

Recom Switching Regulator, Through Hole, 3.3V dc Output Voltage, 4.75 → 18V dc Input Voltage, 1A Output Current,
- RS Stock No.:
- 166-8989
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R-783.3-1.0
- ผู้ผลิต / Manufacturer:
- Recom
1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price 1 Tube of 42
THB14,319.00
(exc. VAT)
THB15,321.33
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 1 | THB14,319.00 | THB340.929 |
2 - 3 | THB14,003.97 | THB333.428 |
4 + | THB13,703.28 | THB326.269 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 166-8989
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R-783.3-1.0
- ผู้ผลิต / Manufacturer:
- Recom
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
รายละเอียดสินค้า / Product Details
R78xx 1.0 Series
Non-isolated
Medical safety approval EN-60601-1-2
No need for heat sinks
Pin-out compatible with LM78XX linear regulators
High efficiency
Low ripple and noise
Very low profile
Wide input range, 4.75-18V
Short circuit protection, thermal shutdown
SIP3 package
Medical safety approval EN-60601-1-2
No need for heat sinks
Pin-out compatible with LM78XX linear regulators
High efficiency
Low ripple and noise
Very low profile
Wide input range, 4.75-18V
Short circuit protection, thermal shutdown
SIP3 package
Note
De-rate above 60°C operating temperature.
MTBF to MIL-HDBK 217F.
MTBF to MIL-HDBK 217F.
Standards
EN-55022, EN-55024, EN-60601-1-2, EN-60950-1
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Output Voltage | 3.3V dc |
Output Current | 1A |
Input Voltage | 4.75 → 18V dc |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Package | SIP |
Power Rating | 3.3W |
Efficiency | 84% |
Ripple And Noise | 30mV Pk-Pk |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Series | R-78-1.0 |
Line Regulation | ±0.4% |
Weight | 1.9g |
MTBF | 13338000h |
Depth | 10.2mm |
Width | 7.55mm |
Length | 11.5mm |
Load Regulation | ±0.6% |
