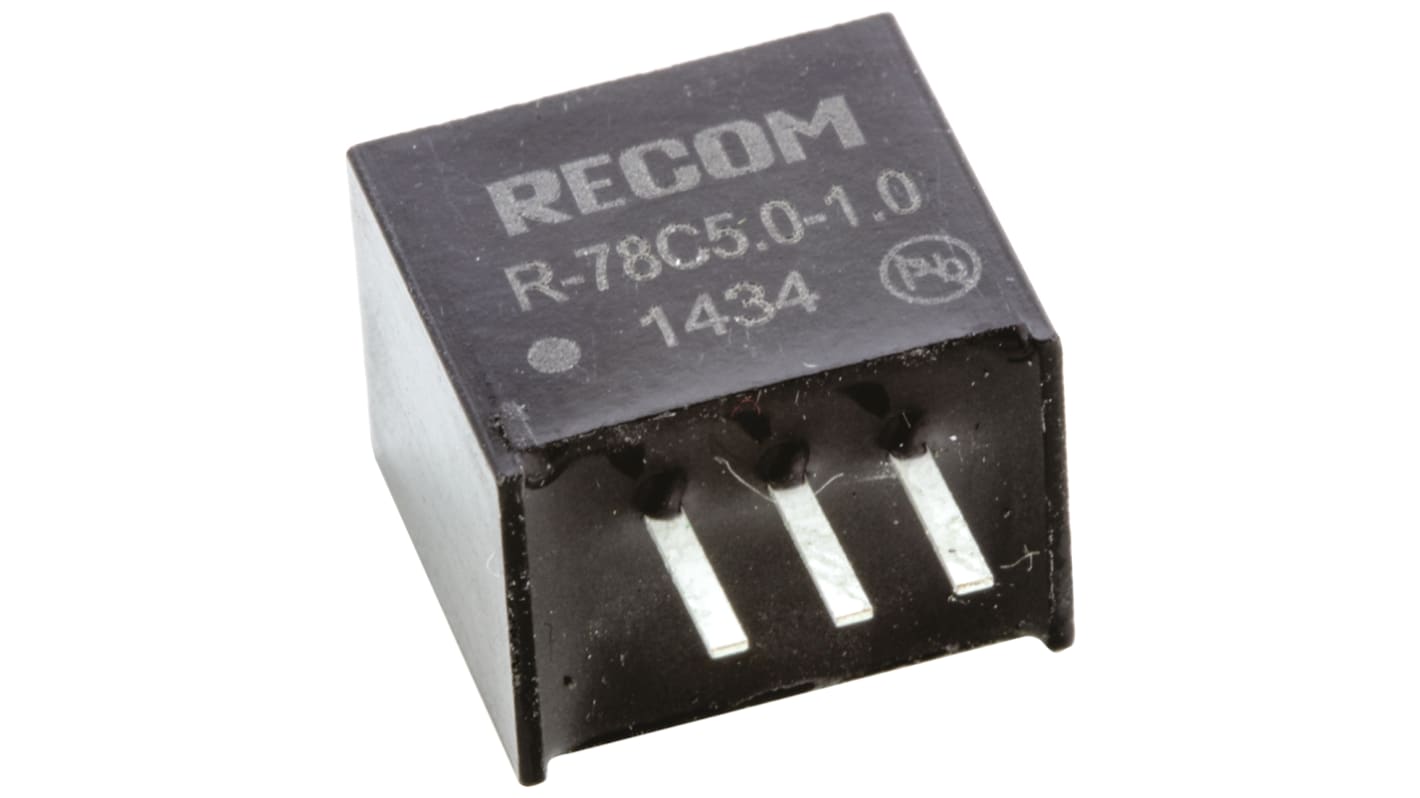

Recom Switching Regulator, Through Hole, 5V dc Output Voltage, 8 → 42V dc Input Voltage, 1A Output Current, 1
- RS Stock No.:
- 166-6669
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R-78C5.0-1.0
- ผู้ผลิต / Manufacturer:
- Recom
1 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
3 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price 1 Tube of 42
THB15,858.87
(exc. VAT)
THB16,968.99
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 1 | THB15,858.87 | THB377.592 |
| 2 - 3 | THB15,509.97 | THB369.285 |
| 4 + | THB15,176.94 | THB361.356 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 166-6669
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R-78C5.0-1.0
- ผู้ผลิต / Manufacturer:
- Recom
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
รายละเอียดสินค้า / Product Details
R-78Cxx 1.0L Series Single Output DC/DC Converter
R-78C 1.0 1A SIP3 single output DC to DC converter which is pin compatible with LM78XX linear regulators. The high efficiency of these SIP3 single output DC to DC switching regulators means that there is no need for heatsinks as very little energy is wasted.
Features and Benefits
High efficiency of 96%
Low profile design: L11.6mm x W8.5mm x H10.4 mm
Wide input voltage range
Short circuit protection and thermal shutdown
Low ripple and noise
EMC compliance to EN55022 Class B
Low profile design: L11.6mm x W8.5mm x H10.4 mm
Wide input voltage range
Short circuit protection and thermal shutdown
Low ripple and noise
EMC compliance to EN55022 Class B
Note
MTBF to MIL-HDBK 217F
Power derates above 68°C
Power derates above 68°C
Standards
General safety: EN 60950-1:2006 + A11:2009 + A1:2010
Standby power: EN62301:2005
Standby power: EN62301:2005
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Output Voltage | 5V dc |
| Output Current | 1A |
| Input Voltage | 8 → 42V dc |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package | SIP 3 |
| Power Rating | 5W |
| Efficiency | 85% |
| Ripple And Noise | 100mV Pk-Pk |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Series | R-78C-1.0 |
| Line Regulation | ±0.2% |
| Power Signal Conversion Type | DC-DC |
| Load Regulation | ±0.4% |
| Length | 11.6mm |
| Width | 8.5mm |
| Depth | 10.4mm |
| Weight | 2g |
| MTBF | 3880000h |
