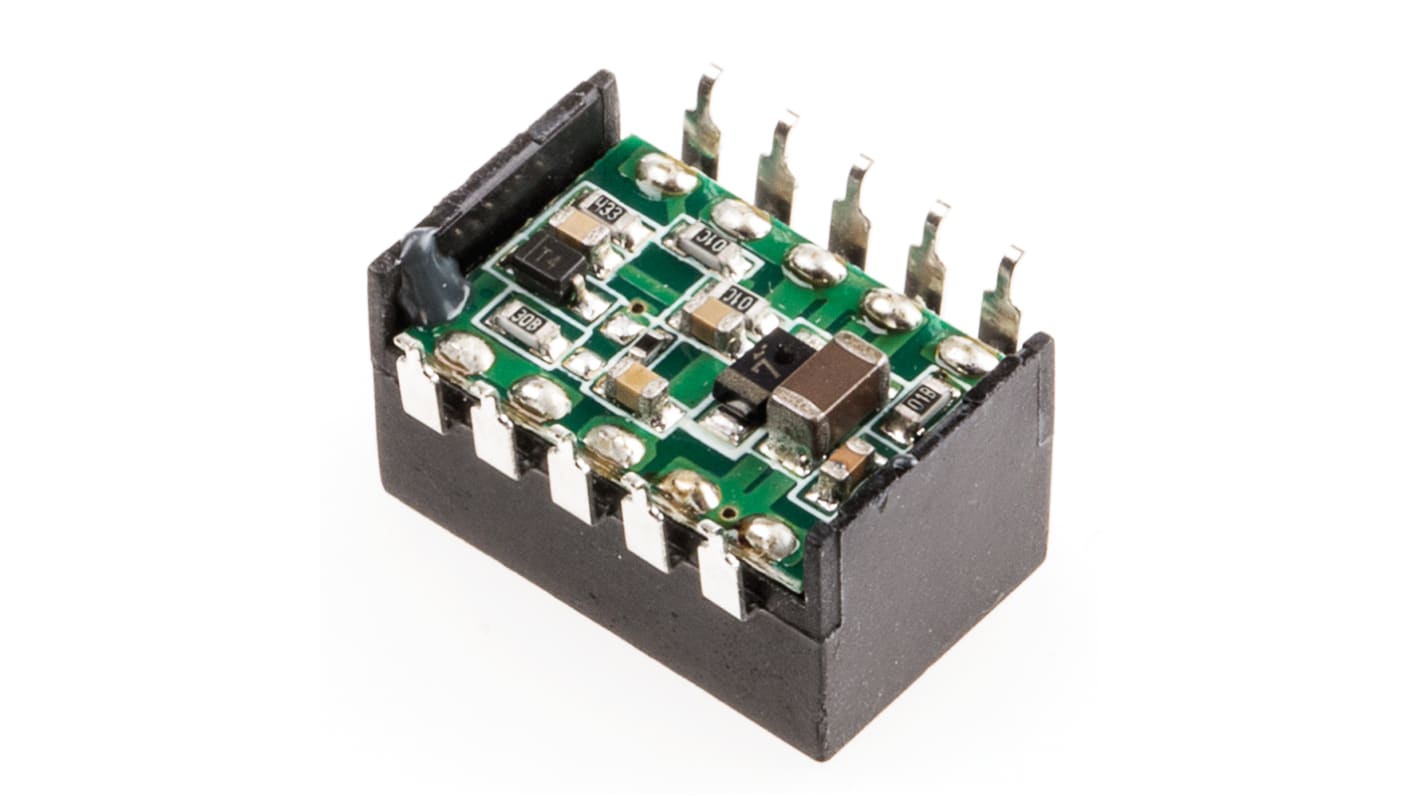

Recom Switching Regulator, Surface Mount, 6.5V dc Output Voltage, 8 → 32V dc Input Voltage, 500mA Output
- RS Stock No.:
- 166-6622
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R-78AA6.5-0.5SMD
- ผู้ผลิต / Manufacturer:
- Recom
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 13/09/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price 1 Tube of 33
THB11,899.47
(exc. VAT)
THB12,732.43
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 1 | THB11,899.47 | THB360.59 |
2 - 3 | THB11,637.68 | THB352.657 |
4 + | THB11,387.79 | THB345.085 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 166-6622
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R-78AA6.5-0.5SMD
- ผู้ผลิต / Manufacturer:
- Recom
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
รายละเอียดสินค้า / Product Details
RECOM Switching Regulator, Surface Mounting, 500mA Output Current - R-78AA-0.5 Series - R-78AA6.5-0.5SMD
Whether you're working on an industrial or medical project, this RECOM switching regulator keeps things safe and sound. It takes an input voltage between 8 and 32V DC and delivers a 6.5V DC output, ensuring your device receives a reliably steady power supply. An efficiency rating of 95% means very little energy is lost during conversion, so you won't have nuisance heat to deal with. As this is a surface-mounting unit, installation takes just a jiffy. To seal the deal, this regulator comes in a flame-resistant plastic casing that reduces the risk of fire damage.
Features & Benefits
Mean time between failures of over 29 million hours at +25°C indicates long-term reliability
Low ripple and noise of 20mV Pk-Pk to ensure a stable output voltage
Light 2.7g weight won't strain your setup
Low ripple and noise of 20mV Pk-Pk to ensure a stable output voltage
Light 2.7g weight won't strain your setup
Applications
Communications industry
Automotive electronics
Robotics systems
Automotive electronics
Robotics systems
What size is this switching regulator?
This switching regulator has dimensions 15.3 (L) x 9.6 (W) x 8.8mm (D), so you can easily squeeze it into a tight spot.
Is this regulator suitable for use in extreme temperatures?
You can trust this unit to get on with its job reliably in temperatures between -40°C and +85°C.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Output Voltage | 6.5V dc |
Output Current | 500mA |
Input Voltage | 8 → 32V dc |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Package | SMD |
Efficiency | 95% |
Ripple And Noise | 20mV Pk-Pk |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Series | R-78AA-0.5 |
Line Regulation | 0.2% |
MTBF | 29253000h |
Load Regulation | 0.7% |
Standards Met | EN 60950-1 |
Length | 15.3mm |
Weight | 2.7g |
Protection Features | Short Circuit Protection |
Application | Industrial, Medical |
Depth | 8.8mm |
Width | 9.6mm |
Switching Frequency Range | 280 → 380kHz |
Power Signal Conversion Type | DC-DC |
Output Voltage Adjustment Range | 3.3 → 11V dc |
Allowed Circuit Configurations | Series |
Maximum Input Current | 100mA |
