XP Power Switching Regulator, Surface Mount, 1.5V dc Output Voltage, 4.75 → 32V dc Input Voltage, 500mA Output
- RS Stock No.:
- 161-8869
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STR05S1V5
- ผู้ผลิต / Manufacturer:
- XP Power
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 10/03/2025, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price 1 Tube of 10
THB2,974.25
(exc. VAT)
THB3,182.45
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 + | THB2,974.25 | THB297.425 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 161-8869
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STR05S1V5
- ผู้ผลิต / Manufacturer:
- XP Power
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
รายละเอียดสินค้า / Product Details

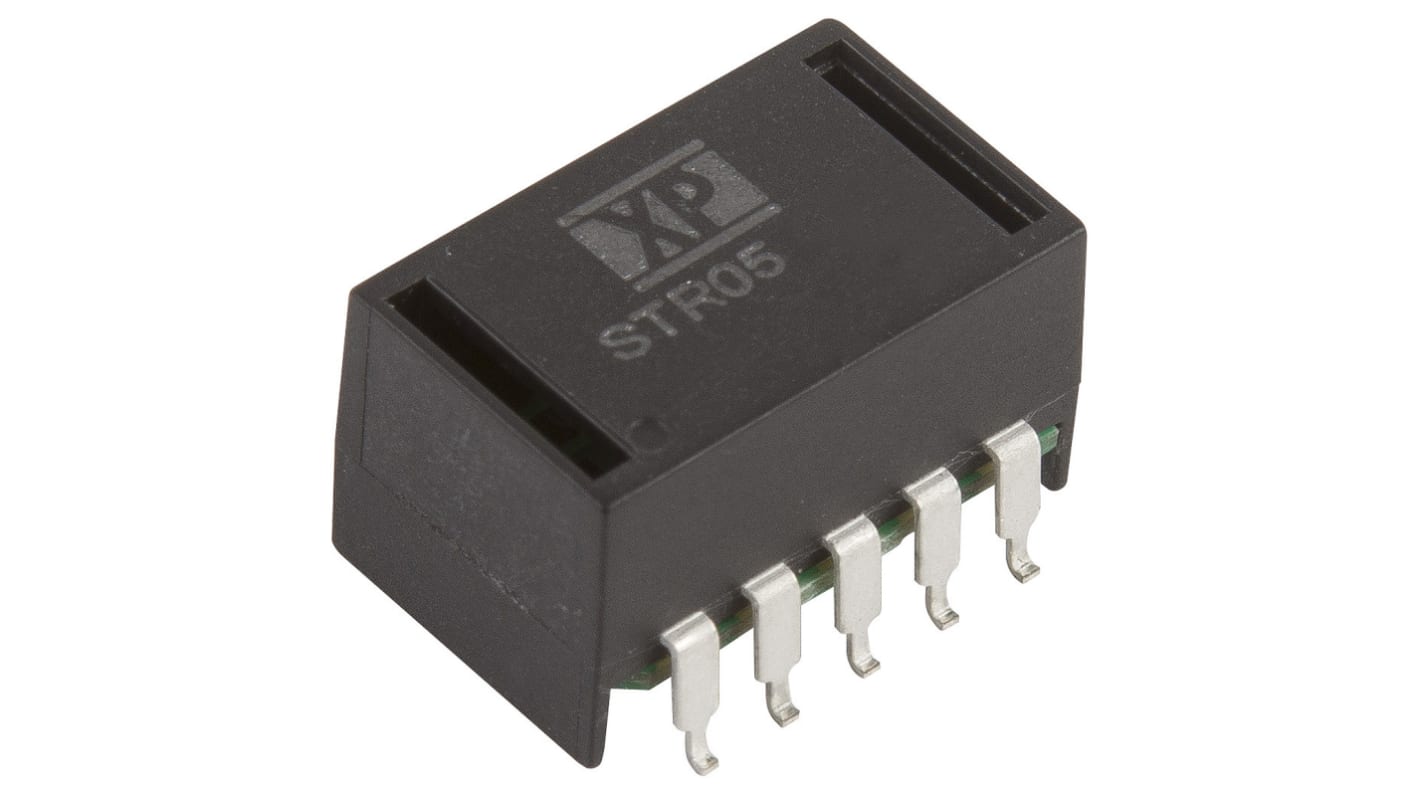

XP Power - STR Series of Switching Regulators
The STR series from XP Power offers a highly reliable range of 0.5 Amp, regulated single output DC-DC converters. The range has been designed in a compact SMD package and has a high efficiency of up to 97%.
0.5 Amp
Regulated single output
Compact SMD package
-40°C to +100 °C Operating Temperature
Remote On/Off
Output voltage trim
Wide input range
3-year warranty
Regulated single output
Compact SMD package
-40°C to +100 °C Operating Temperature
Remote On/Off
Output voltage trim
Wide input range
3-year warranty
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Output Voltage | 1.5V dc |
| Output Current | 500mA |
| Input Voltage | 4.75 → 32V dc |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Package | SMD |
| Power Rating | 0.75W |
| Efficiency | 63% |
| Ripple And Noise | 30mV Pk-Pk |
| Maximum Temperature | +100°C |
| Minimum Temperature | -40°C |
| Series | STR |
| Line Regulation | ±0.4% |
| Width | 9.6mm |
| Power Signal Conversion Type | DC-DC |
| Protection Features | Short Circuit Protection |
| Switching Frequency Range | 280 → 380kHz |
| Weight | 1.7g |
| MTBF | 2Mh |
| Rated Output Power | 0.75W |
| Maximum Input Current | 5mA |
| Output Voltage Adjustment Range | 1.4-2.5V |
| Depth | 8.8mm |
| Load Regulation | ±0.6% |
| Special Features | Wide Input Range |
| Length | 15.3mm |
