TRACOPOWER Switching Regulator, Surface Mount, 3.3V dc Output Voltage, 4.6 → 32 V dc, 4.6 → 42 V dc Input
- RS Stock No.:
- 124-7704
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TSRN 1-2433SM
- ผู้ผลิต / Manufacturer:
- TRACOPOWER
4 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price 1 Tube of 10
THB4,293.73
(exc. VAT)
THB4,594.29
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 1 | THB4,293.73 | THB429.373 |
| 2 - 3 | THB4,199.25 | THB419.925 |
| 4 + | THB4,109.10 | THB410.91 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 124-7704
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TSRN 1-2433SM
- ผู้ผลิต / Manufacturer:
- TRACOPOWER
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
รายละเอียดสินค้า / Product Details

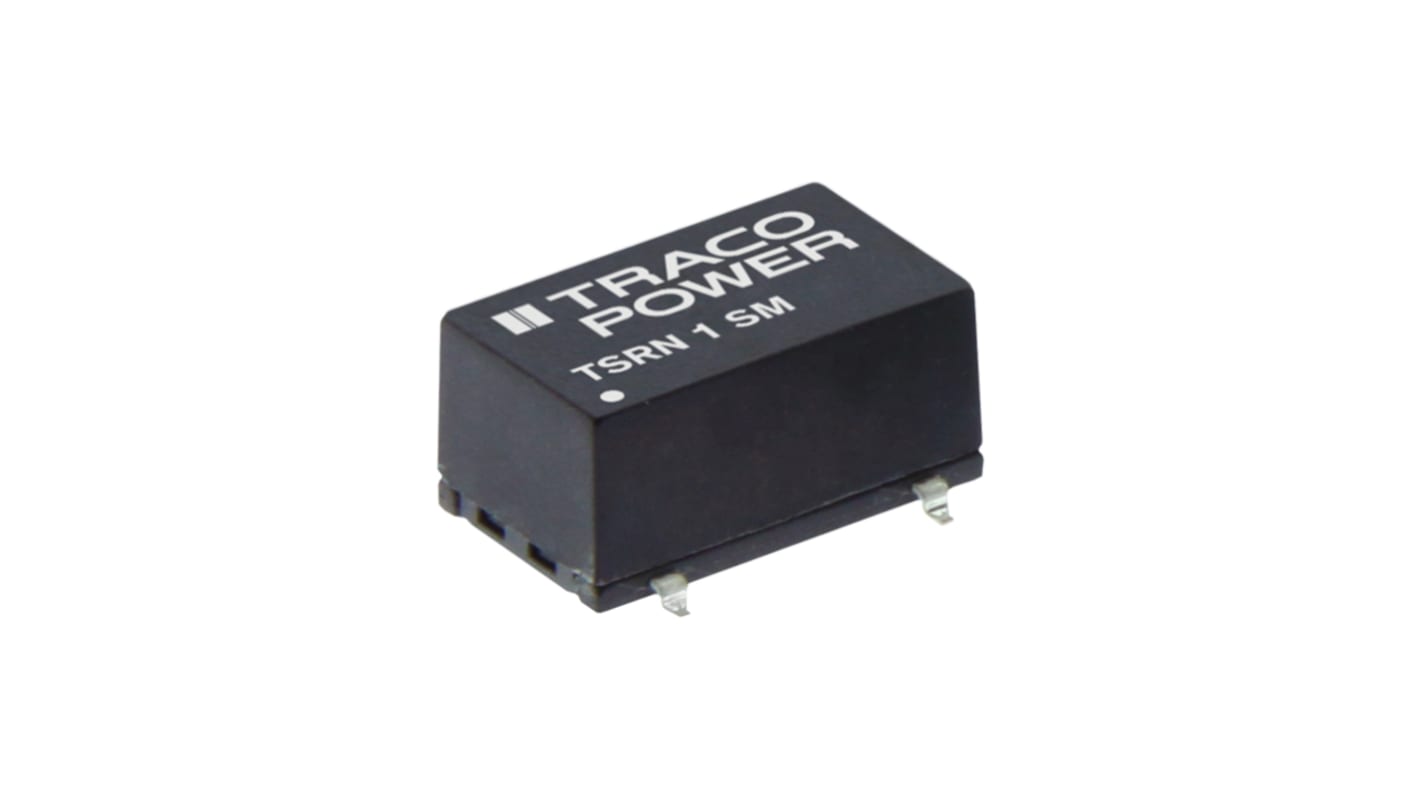

Traco Power Switching Regulator, SMD-10 Format, Level 1 Moisture Sensitivity - TSRN-1SM Series - TSRN 1-2433SM
Efficiently step down direct current with this switching regulator from Traco Power. It's a handy option for turning inputs between 4.6 and 42V DC into ±3.3V DC outputs needed to energise your low-powered machinery. Thanks to an efficiency rating of 88%, you can trust it converts power with minimal waste. A light weight of just 1.7g minimises strain on your setup, while neat dimensions of 15.2 (L) x 9.3 (W) x 7.6mm (D) ensure you can fit this little gadget into busy systems.
Features & Benefits
• Mean time between failures of 14 million hours for dependable long-term performance
• ±0.2% line regulation and ±0.6% load regulation mean you get a consistent power supply
• UL 94-V0-rated housing self-extinguishes within 10 seconds in the event of a fire
• Remote on/off function for convenient long-distance control
• ±0.2% line regulation and ±0.6% load regulation mean you get a consistent power supply
• UL 94-V0-rated housing self-extinguishes within 10 seconds in the event of a fire
• Remote on/off function for convenient long-distance control
Applications
• Industrial automation
• Textile manufacture
• Process control
• Textile manufacture
• Process control
Does this device perform reliably in harsh industrial conditions?
Yes. This switching regulator gets on with its job in a temperature range between -40°C and +85°C, so it's ideal for use in challenging settings.
Do I need to fit a heatsink with this switching regulator?
As it produces minimal waste heat, it's able to stay cool through natural convection, so there's no need for a heatsink.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Output Voltage | 3.3V dc |
| Output Current | 1 A, 600 mA |
| Input Voltage | 4.6 → 32 V dc, 4.6 → 42 V dc |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Package | SMD |
| Efficiency | 77%, 80% |
| Ripple And Noise | 50mV Pk-Pk |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
| Line Regulation | ±0.2% |
| Weight | 1.7kg |
| Depth | 7.2mm |
| Width | 9.3mm |
| Length | 15.2mm |
| Load Regulation | ±0.6% |
| MTBF | 6000000h |
