Weller WMRP + WDH50 Electric Soldering Iron, 40W for use with WD1M; WD2M Soldering Stations

  • RS Stock No. 395-143
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. T0052919099N
  • ผู้ผลิต / Manufacturer Weller
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
รายละเอียดสินค้า / Product Details

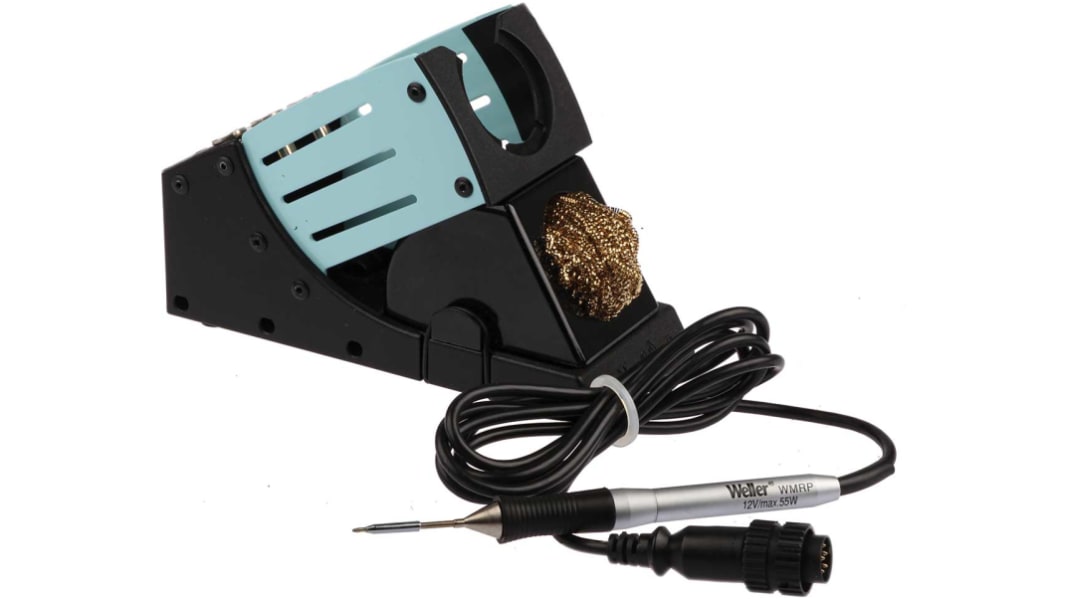

WMRP Micro Soldering Iron Set with WDH50 Soldering Iron Rest.

Weller offers you the WMRP Micro soldering iron set complete with the WDH50 soldering iron rest/soldering iron stand and the RTM 013 (RT 3) micro chisel soldering tip. The soldering iron set is excellent for work that need a high energy level plus is small enough for soldering work when using a microscope. Soldering tips are easily changed through the active tip cartridge system even when the soldering iron is still hot. The versatile soldering iron set heats up quickly and had a standby function plus is compatible with the WR 3M re-work soldering station and the WT 2M soldering station.

Features and Benefits.

  • Soldering set / Kit, Iron, stand and solder tip.

  • 12 V rating

  • 40 W power (55 W with the RT11).

  • Heating time 3 seconds.

  • Active tip technology.

  • RT Tip range.

  • Temperature range 100°C to 450°C.

  • ESD safe

  • WT Compatible.

What is Included in the Soldering Kit?

  • WMRP Micro Soldering Iron.

  • WDH 50 soldering iron safety rest (stop and go function).

  • RT Micro standard solder chisel tip (diameter 1.3 mm).

Replacements Available.

  • WDH 50 model, Soldering Iron Safety rest – Stock number 185671.

  • WMRP model, Electric Soldering Iron – Stock number 6204898.

  • RT 3 straight Chisel Soldering Iron Tip – Stock number 4986734.

Compatible Soldering Stations Available.

  • WR 3M 3-Channel Power Unit Soldering Station, 360 W – 186630.

  • WT 2M 2-Channel Power Unit Soldering Station, 150 W – 1763371.

Station Irons - Weller

คุณสมบัติ / Specifications
คุณสมบัติ Value
Model Number WMRP + WDH50
Power Type Electric
Type Soldering Iron
Wattage 40W
Input Voltage 24V
Tip Series RT
For Use With WD1M; WD2M Soldering Stations
มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 11,442.33
(exc. VAT)
THB 12,243.29
(inc. VAT)
Units
Per unit
1 +
THB11,442.33
