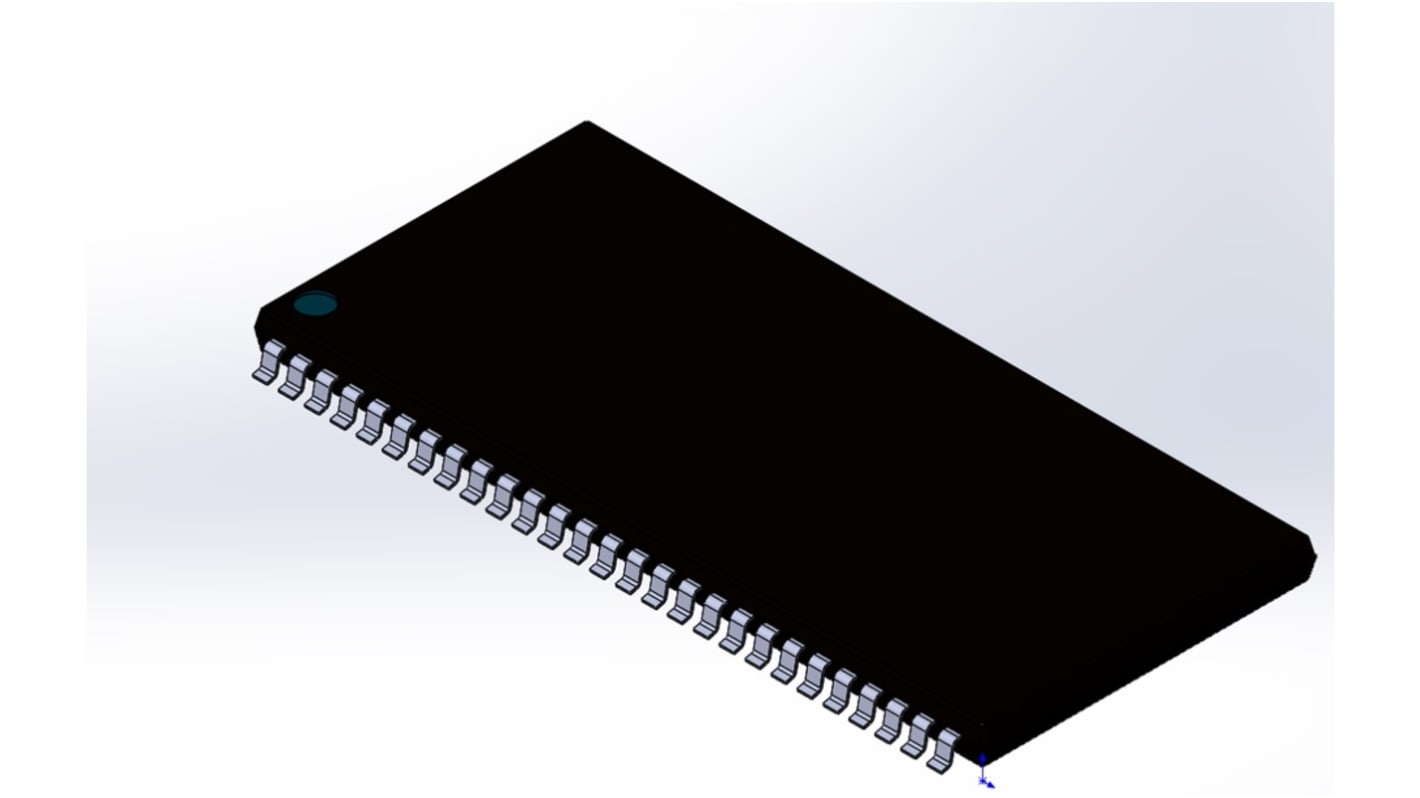

Alliance Memory AS4C8M16SA-6TIN, SDRAM 128Mbit Surface Mount, 166MHz, 3 V to 3.6 V, 54-Pin TSOP
- RS Stock No.:
- 230-8438
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- AS4C8M16SA-6TIN
- ผู้ผลิต / Manufacturer:
- Alliance Memory
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 14/06/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tray of 108)
THB113.053
(exc. VAT)
THB120.967
(inc. VAT)
| Units | Per unit | Per Tray* |
| 108 - 216 | THB113.053 | THB12,209.724 |
| 324 - 432 | THB110.226 | THB11,904.408 |
| 540 - 972 | THB107.471 | THB11,606.868 |
| 1080 - 1944 | THB104.784 | THB11,316.672 |
| 2052 + | THB102.164 | THB11,033.712 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 230-8438
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- AS4C8M16SA-6TIN
- ผู้ผลิต / Manufacturer:
- Alliance Memory
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
The Alliance Memory 128Mb SDRAM is a high-speed CMOS synchronous DRAM containing 128 Mbits. It is internally configured as 4 Banks of 2M word x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Read and write accesses to the SDRAM are burst oriented
accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of a BankActivate command which is then followed by a Read or Write command.
Auto Refresh and Self Refresh
4096 refresh cycles/64ms
CKE power down mode
Single +3.3V 0.3V power supply
Interface: LVTTL
4096 refresh cycles/64ms
CKE power down mode
Single +3.3V 0.3V power supply
Interface: LVTTL
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Memory Size | 128Mbit |
| Organisation | 8M x 16 |
| SDRAM Class | DDR |
| Data Rate | 166MHz |
| Data Bus Width | 16bit |
| Address Bus Width | 12bit |
| Number of Bits per Word | 16bit |
| Maximum Random Access Time | 5ns |
| Number of Words | 8 M |
| Mounting Type | Surface Mount |
| Package Type | TSOP |
| Pin Count | 54 |
| Dimensions | 22.35 x 10.29 x 1.2mm |
| Height | 1.2mm |
| Length | 22.35mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Operating Supply Voltage | 3.6 V |
| Width | 10.29mm |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -40 °C |
