Wieland Dual-Channel Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock Safety Relay, 24V dc, 7 Safety Contacts
- RS Stock No.:
- 122-2494
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R1.188.2040.0
- ผู้ผลิต / Manufacturer:
- Wieland
- RS Stock No.:
- 122-2494
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R1.188.2040.0
- ผู้ผลิต / Manufacturer:
- Wieland
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details

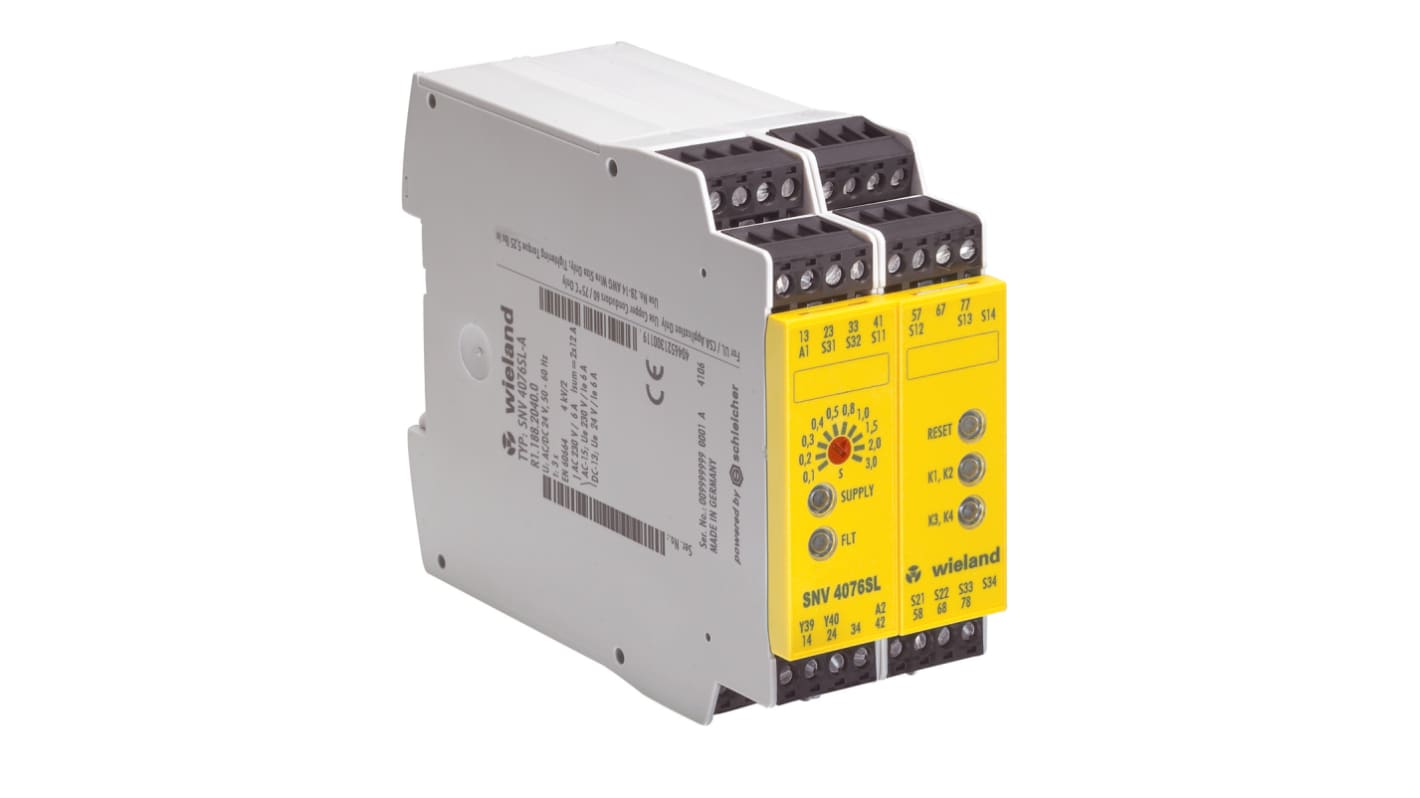

SNV 4076SL Safety Relay with Timed Delay
Suitable for applications that require a safe timing sequence
Meet all requirements of the currently valid safety standards EN 62061, EN ISO 13849-1, Cat 4, SIL 3, PL e
Can be used as emergency stop and safety gate monitor
Single-channel or two-channel activation through contacts or semiconductors
Automatic and manual reset with reset button monitoring
3 immediate enables, 3 enables OFF-delayed, without re-triggering
Controlled stop and time monitored door lock
Cross monitoring
Meet all requirements of the currently valid safety standards EN 62061, EN ISO 13849-1, Cat 4, SIL 3, PL e
Can be used as emergency stop and safety gate monitor
Single-channel or two-channel activation through contacts or semiconductors
Automatic and manual reset with reset button monitoring
3 immediate enables, 3 enables OFF-delayed, without re-triggering
Controlled stop and time monitored door lock
Cross monitoring
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Supply Voltage | 24V dc |
Number of Channels | 2 |
Safety Contacts | 7 |
Function | Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock |
Reset Method | Automatic, Manual, Monitored |
Range | safeRELAY |
Safety Category ISO 13849-1 | 4 |
PL ISO 13849-1 | e |
Terminal Type | Screw |
Series | SNV 4076SL |
Depth | 96.5mm |
Width | 114mm |
Performance Level | e |
Length | 45mm |
