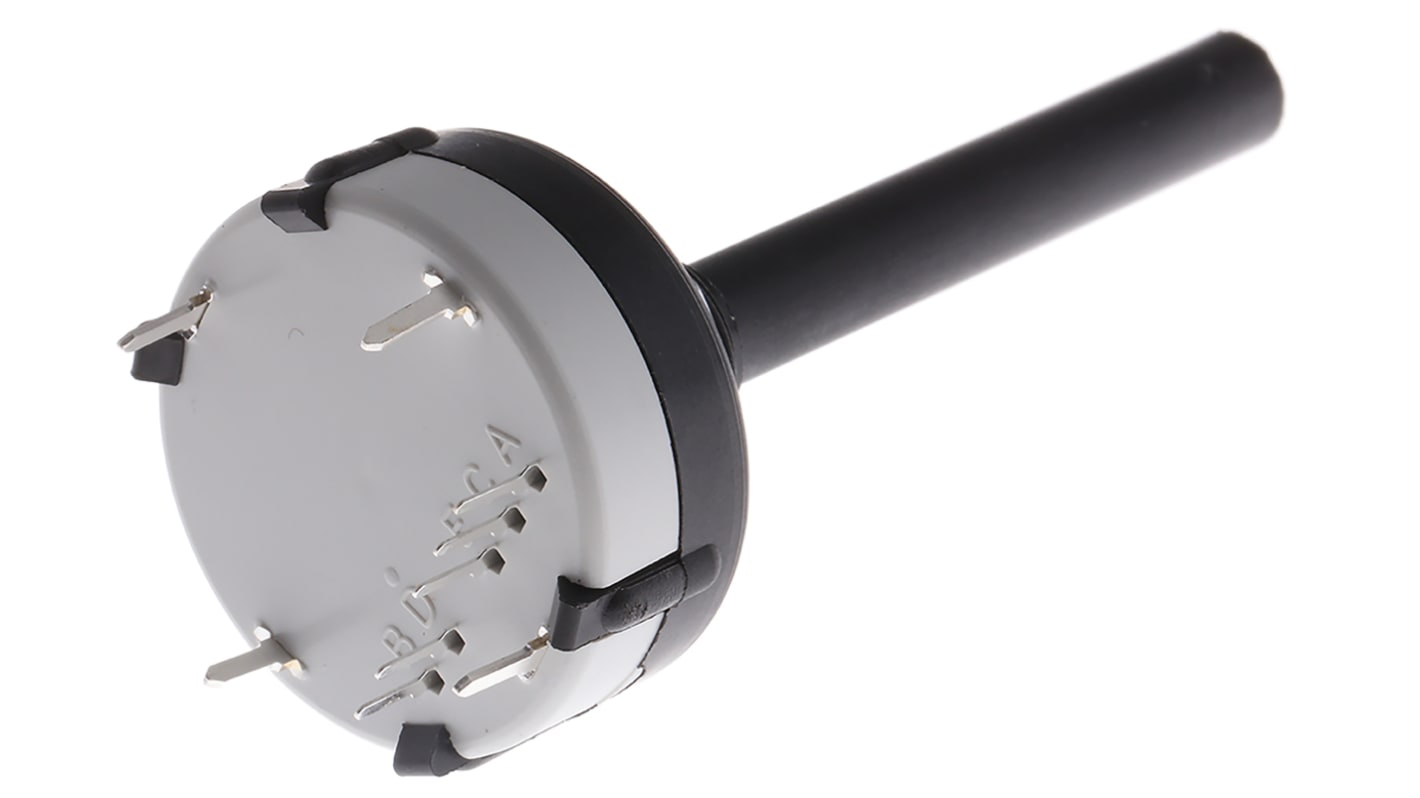

Lorlin, 16 Position, Hexadecimal SPST Rotary Switch, 150 mA @ 50 V, Through Hole

RS Stock No.:: 655-3162
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: BCK1001
ผู้ผลิต / Manufacturer:: Lorlin

Lorlin, 16 Position, Hexadecimal SPST Rotary Switch, 150 mA @ 50 V, Through Hole

204 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)

เพิ่ม / Added

ราคา / Price Each

THB313.50

(exc. VAT)

THB335.44

(inc. VAT)

Units	Per unit
1 - 49	THB313.50
50 - 99	THB304.09
100 - 249	THB294.96
250 +	THB286.10

RS Stock No.:: 655-3162
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: BCK1001
ผู้ผลิต / Manufacturer:: Lorlin

ข้อมูลทางเทคนิค / Technical Data Sheets

BCK binary coded rotary switch Datasheet

Legislation and Compliance

COO (Country of Origin):: GB

รายละเอียดสินค้า / Product Details

Binary Coded Rotary Switch - BCK & BCKS (IP65) Series

Lorlin BCK and IP65 sealed BCKS binary coded rotary switches. These panel mount, binary coded rotary switches have silver plated contacts and are available with an option of adjustable rotation limit stops (restricts number of positions) or non stop continuous rotation.

Features and Benefits:

• Contacts rated 150mA @ 50Vac/dc
• PCB terminals
• Proof voltage 250Vac
• UL-VO rated 27.5mm diameter body
• Binary coded hexadecimal, code 033
• 22.5º indexing
• Adjustable stop and continuous rotation options
• Metric shaft 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread

Note

The BCKS series are sealed to IP65, see stock numbers 733-5063, 739-2915, 739-2924 and 733-5072.

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Contact Configuration	SP
Contact Current Rating	150 mA @ 50 V
Number of Switch Positions	16
Number of Contacts	1
Voltage Rating	250 V ac, 250V dc
Output Coding	Hexadecimal
Depth	27.5mm
Width	27.5mm
Diameter	27.5mm
Dimensions	27.5 (Dia.) x 64.1mm
Mounting Type	PCB
Mounting Hole Size	27.5 mm
Terminal Type	Through Hole
Application	Electromechanical
Maximum Operating Temperature	+85°C
Actuator Colour	Black
Minimum Operating Temperature	-30°C
Contact Material	Gold Plated Silver
Case Material	Polyamide
Height	64.1mm
Mechanical Life	10000Operations
