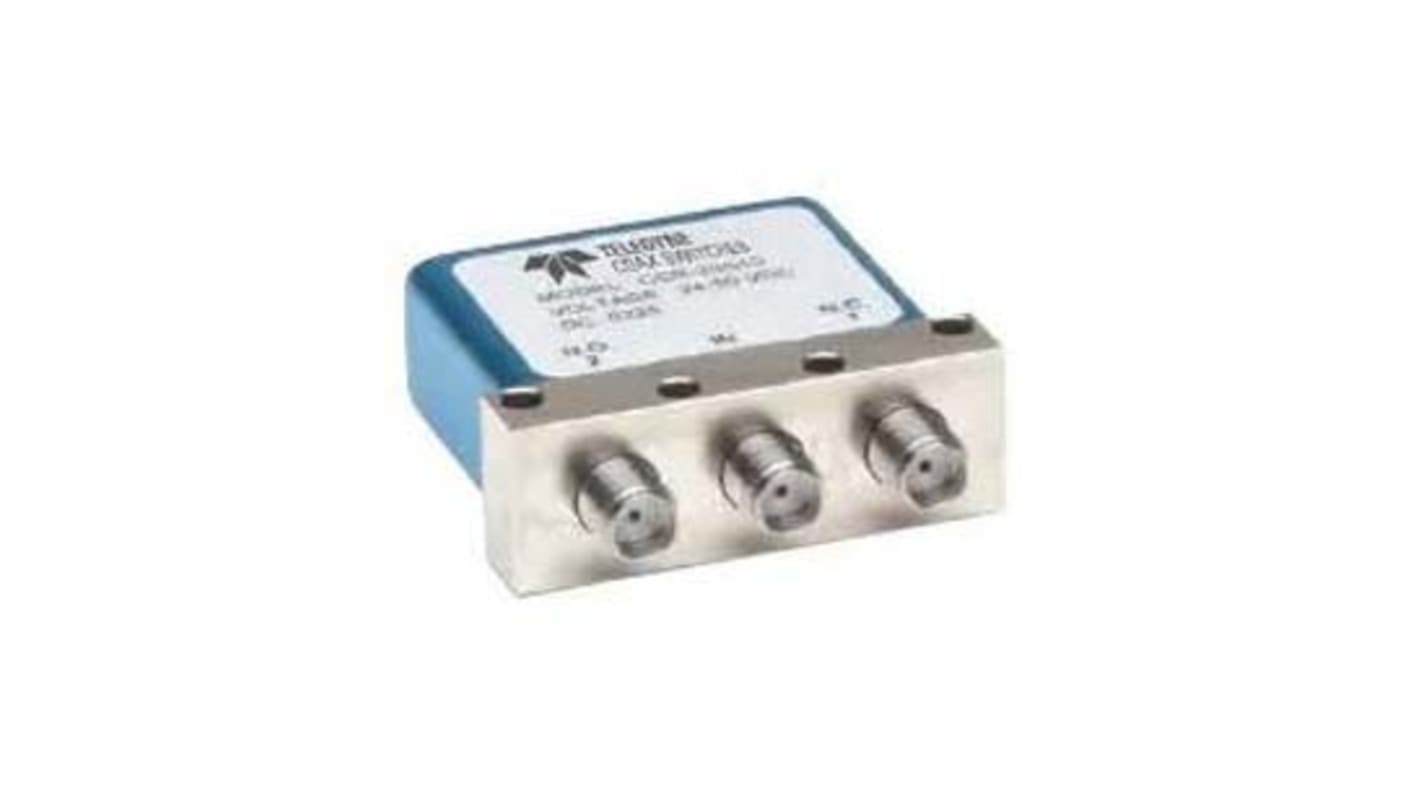

Teledyne CCR-33S3O-N RF Switch SPDT 20ms SMA Female 50Ω 34.04 x 13.21 x 46.23mm 18GHz

  • RS Stock No. 885-8554
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. CCR-33S3O-N
  • ผู้ผลิต / Manufacturer Teledyne
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
ไม่สอดคล้อง
COO (Country of Origin): TW
รายละเอียดสินค้า / Product Details

Teledyne - CCR33 Series

Professional range of Teledyne solid state relays from the CCR series. The relays are designed to switch a microwave signal from a common input to either of the two outputs.

SPDT
Various voltages available
Failsafe actuator

คุณสมบัติ / Specifications
คุณสมบัติ Value
Switch Configuration SPDT
Switching Speed 20ms
Port to Port Isolation 60dB
Maximum Insertion Loss 0.5dB
Connector Type SMA Female
Output Impedance 50Ω
Dimensions 34.04 x 13.21 x 46.23mm
Weight 46.8g
Height 46.23mm
Length 34.04mm
Maximum Frequency 18GHz
Maximum Operating Temperature +65°C
Minimum Operating Temperature -40°C
Model Number p CCR-33
Width 13.21mm
Minimum Frequency 0 GHz
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 24/11/2020, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 6,067.65
(exc. VAT)
THB 6,492.39
(inc. VAT)
Units
Per unit
1 +
THB6,067.65
