RS PRO 8 Pin Relay Socket, DIN Rail, 300V for use with RS PRO RKL Relays DPDT

  • RS Stock No. 121-7825
  • ผู้ผลิต / Manufacturer RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
รายละเอียดสินค้า / Product Details

RS Pro General Purpose Relay Sockets

RS Pro professional range of DIN Rail mount relay sockets.

Screw connection
Supplied with metal retaining clip

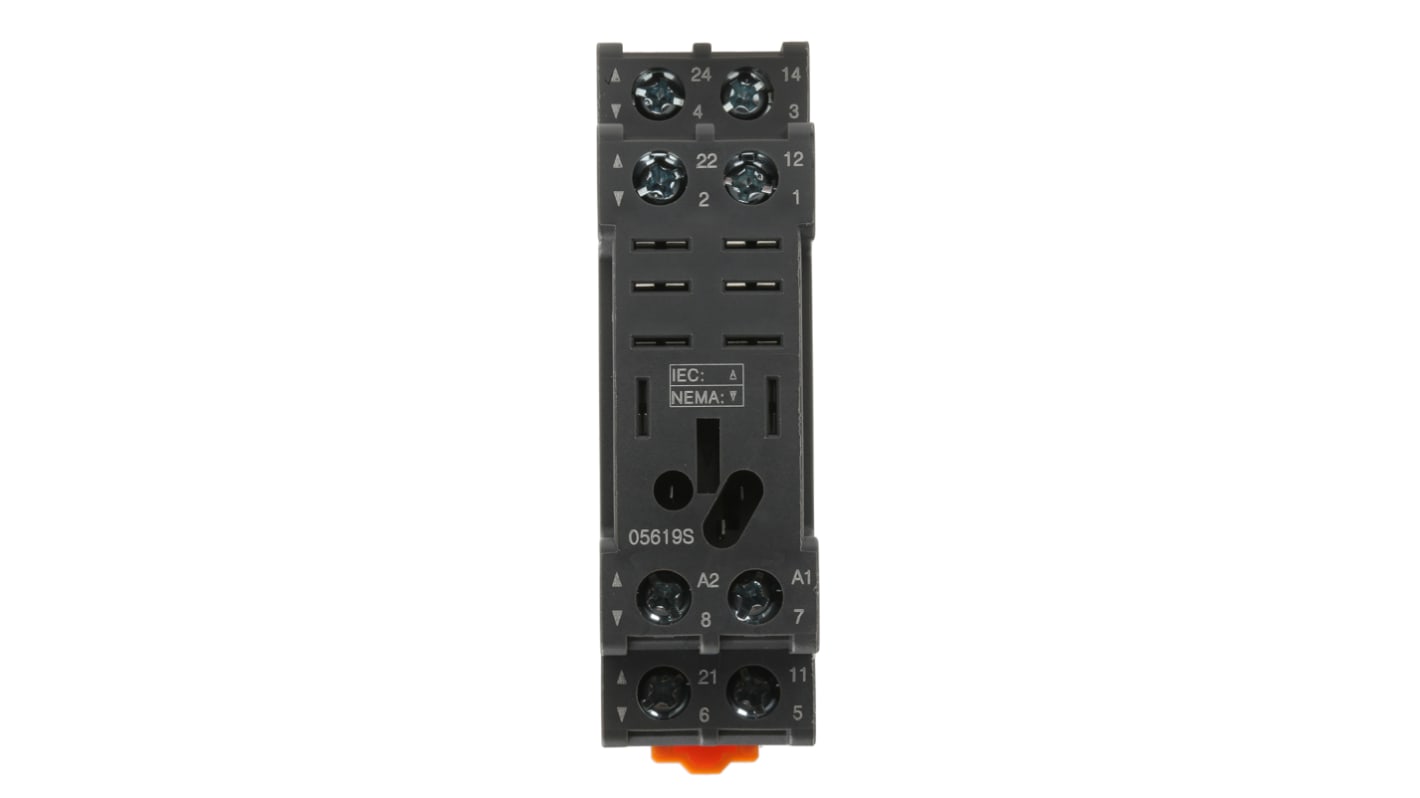

RS PRO Relay Socket

The RS PRO 8-pin DIN rail mount socket has screw terminal leads. It has a contact terminal current rating of 16A and voltage rating of 300V. The socketed relay is retained and ejected using a simple clip. This relay socket is used for RS PRO RKL relay series.

Features and Benefits

• Screw torque is 1.2Nm
• Operating temperature ranges between -40°C and 85°C

Applications

• Office equipment
• Temperature controllers
• Programmable logic controllers

Certifications

• CE certified

คุณสมบัติ / Specifications
คุณสมบัติ Value
Voltage 300V
For Use With RS PRO RKL Relays DPDT
Accessory Type DIN Rail Mount Socket
Number of Contacts 8
Current Rating 16A
Mounting Type DIN Rail
Termination Type Screw
31 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 165.98
(exc. VAT)
THB 177.60
(inc. VAT)
Units
Per unit
1 +
THB165.98
