- RS Stock No.:
- 496-6443
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- HSDL-9100-021
- ผู้ผลิต / Manufacturer:
- Broadcom
160 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 5)
THB106.774
(exc. VAT)
THB114.248
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 620 | THB106.774 | THB533.87 |
625 - 1245 | THB104.104 | THB520.52 |
1250 + | THB102.502 | THB512.51 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 496-6443
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- HSDL-9100-021
- ผู้ผลิต / Manufacturer:
- Broadcom
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

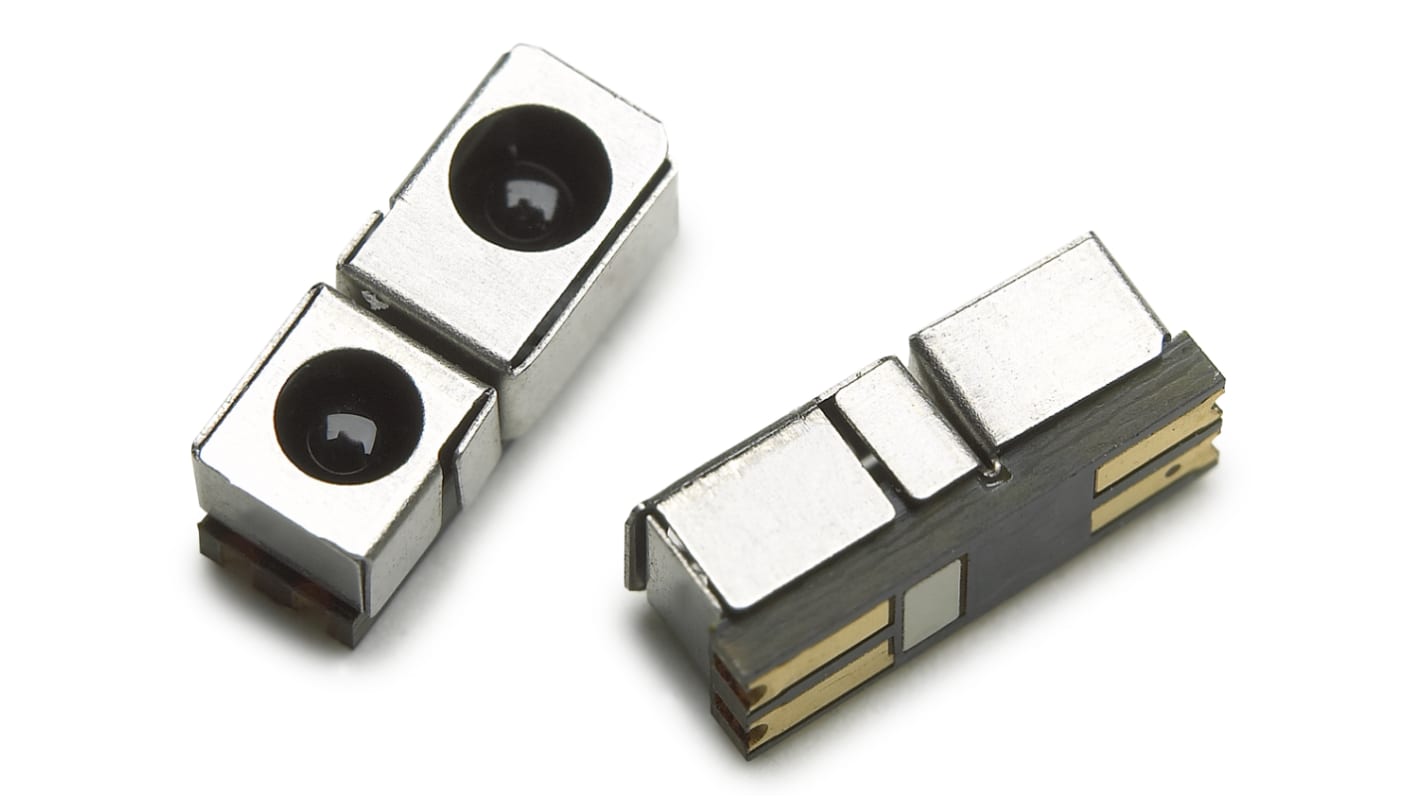

HSDL-9100 Proximity Sensor
The HSDL-9100 series from Avago Technologies are a family of proximity sensors in a surface-mounted (SMD) package. It combines an analogue-output reflective sensor with an IR emitter and photodiode. They are all housed within a compact metal package which offers excellent optical isolation, reducing cross-talk.
Suitable applications for the HSDL-9100 include; mobile phones, notebooks, industrial control, printers, home appliances and vending machines.
Suitable applications for the HSDL-9100 include; mobile phones, notebooks, industrial control, printers, home appliances and vending machines.
Features of the HSDL-9100:
Compact metal package
Detects objects from near-zero to 60mm range
High signal to noise ratio
Low optical crosstalk
Low dark current
Miniature 4-pin SMT package
Compact metal package
Detects objects from near-zero to 60mm range
High signal to noise ratio
Low optical crosstalk
Low dark current
Miniature 4-pin SMT package
Reflective Optical Sensors, Avago Technologies
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Peak Sensor Distance | 5mm |
Output Device | Photodiode |
Typical Rise Time | 50ns |
Typical Fall Time | 50ns |
Number of Pins | 4 |
Mounting Type | Surface Mount |
Package Type | SMD |
Dimensions | 6.9 x 2.78 x 2.7mm |
Height | 2.7mm |
Length | 6.9mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Width | 2.75mm |
Operating Temperature Range | -40 → +85°C |
