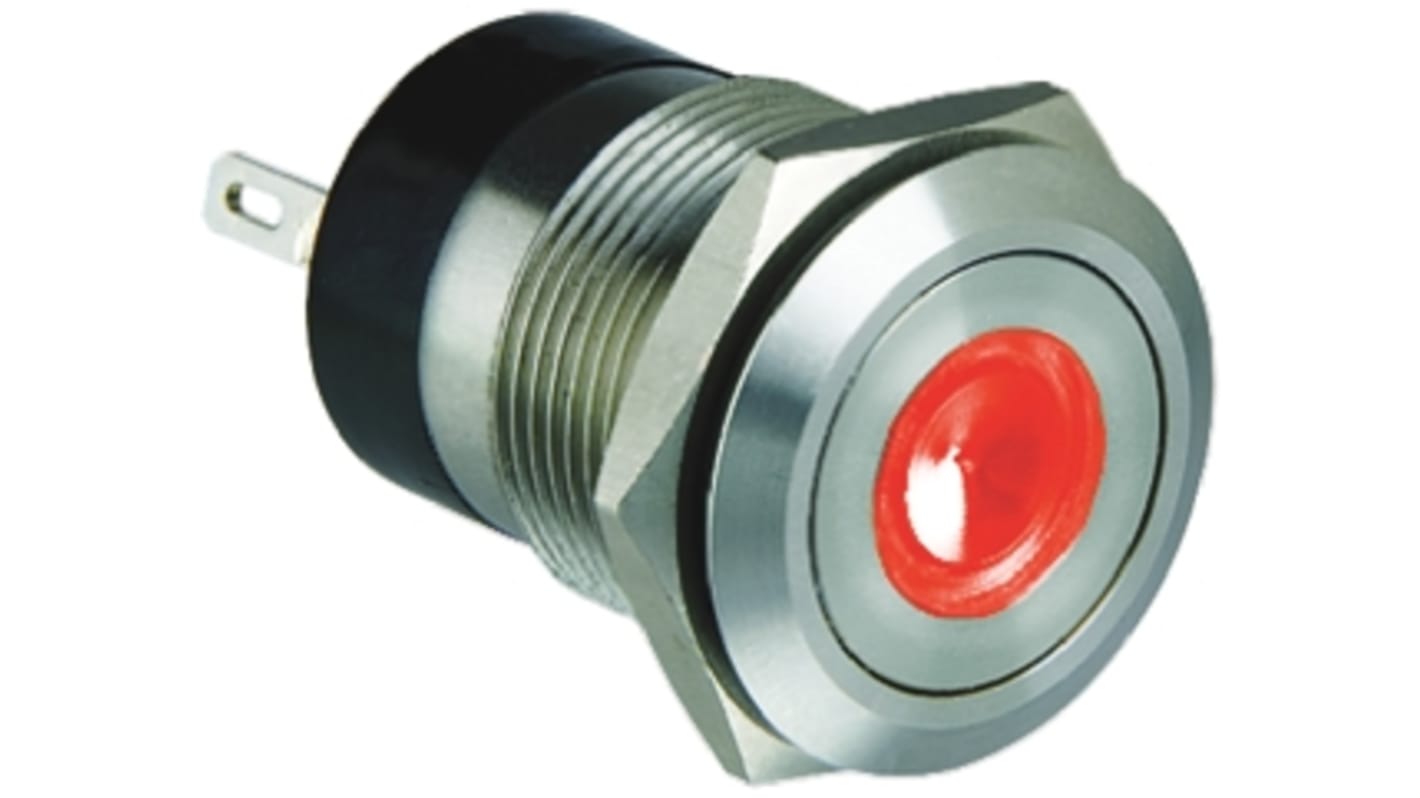

1-pole on-off switch Momentary Push Button Switch, IP66, 19.2mm, Panel Mount

  • RS Stock No. 729-5306
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. MPI001/28/RD/12
  • ผู้ผลิต / Manufacturer Bulgin
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
รายละเอียดสินค้า / Product Details

Vandal Resistant Switches IP66

Manufactured from Stainless Steel, Bulgin’s range of vandal resistant security switches are designed with a high resistance to wear and tear.

Available with Red, Green and Blue, dot and ring LED illumination
Fitted with integral supply resistor for 6V, 12V and 24V variants
Flying lead or 2.8 mm solder tag termination options
Internal TVS protection
Fully sealed to IP66
Overall length: 35mm + 300mm (flying leads), 32.7mm (2.8mm tags)
Panel cut out; 19.2 mm

Note

If the illumination voltage is not stated an appropriate resistor must be series connected by the user depending on the voltage for each colour as listed on the datasheet.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated Yes
Contact Configuration Single Pole Single Throw (SPST)
Panel Cut Out Size 19.2 (Dia.)mm
Panel Cut Out Diameter 19.2mm
LED Colour Red
IP Rating IP66
Actuator Colour Silver
Voltage Rating 24V dc
Contact Current Rating 50 mA @ 24 V dc
Actuator Shape Flat
Terminal Type Tab
Actuator Type Button
Case Colour Silver
39 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 902.80
(exc. VAT)
THB 966.00
(inc. VAT)
Units
Per unit
1 - 9
THB902.80
10 - 49
THB803.71
50 - 99
THB704.10
100 - 249
THB605.02
250 +
THB505.92
ตัวเลือกบรรจุภัณฑ์ / Packaging Options :
