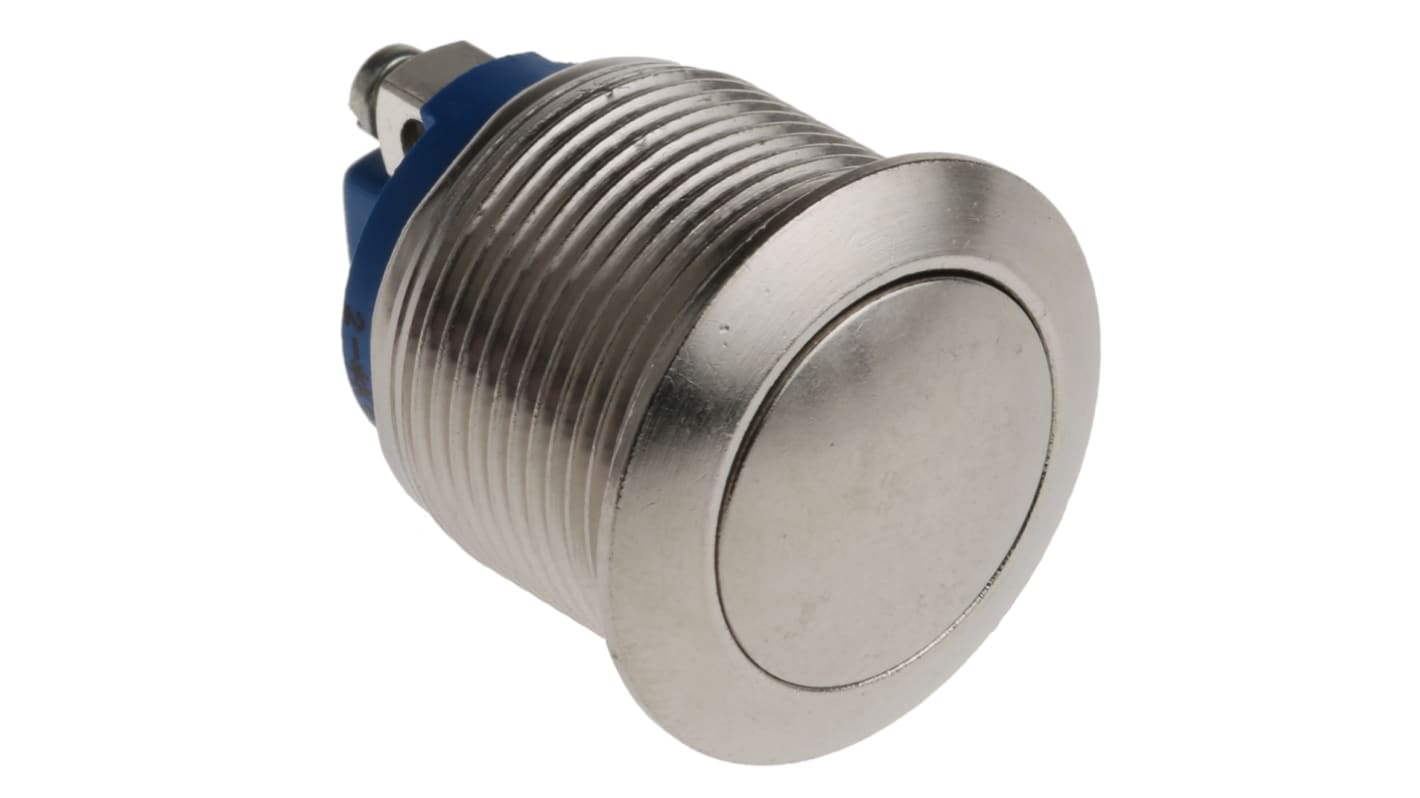

1-pole on-off switch Momentary Push Button Switch, Panel Mount, Screw Mount

  • RS Stock No. 179-0906
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. AV191003C900
  • ผู้ผลิต / Manufacturer APEM
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
รายละเอียดสินค้า / Product Details

AV Series Security Pushbutton Switches

Brought to you by Apem, this Security Pushbutton Switch features a mechanical stop which protects the contact mechanism and provides a high degree of impact resistance. With a robust Polybutylene housing, nickel plated brass bushings and silver-plated contacts, this AV series security switch is designed for reliability and durability over a long length of service.

Features and Benefits:

• IP54 Environmental Protection
• Momentary switch operation
• Mechanical life of 100000 Cycles

Available in this range:

• Stock No: 278-1133 is a 16mm screw terminal curved push-button switch
• Stock No: 278-1149 is a 16mm screw terminal flat push-button switch
• Stock No: 190-0715 is a 16mm solder terminal flat push-button switch
• Stock No: 179-0906 is a 19mm screw terminal curved push-button switch
• Stock No: 179-0912 is a 19mm screw terminal flat push-button switch
• Stock No: 190-0721 is a 19mm solder terminal illuminated push-button switch (Red)
• Stock No: 174-6381 is a 22mm screw terminal curved push-button switch
• Stock No: 179-0899 is a 22mm screw terminal flat push-button switch

//media.rs-online.com/t_line/L0223694-10.gif
คุณสมบัติ / Specifications
คุณสมบัติ Value
Switch Operation Momentary
Mounting Type Panel Mount, Screw Mount
Illuminated No
Contact Configuration 1-pole on-off switch
Panel Cut Out Size 22.2 (Dia.)mm
Panel Cut Out Diameter 19.2mm
Actuator Colour Silver
Voltage Rating 24/48V dc
Contact Current Rating 2 A @ 48 V dc
Actuator Shape Round
Terminal Type Screw
Actuator Type Button
1322 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 663.45
(exc. VAT)
THB 709.89
(inc. VAT)
Units
Per unit
1 - 9
THB663.45
10 - 49
THB631.38
50 - 99
THB597.16
100 - 249
THB560.91
250 +
THB522.54
