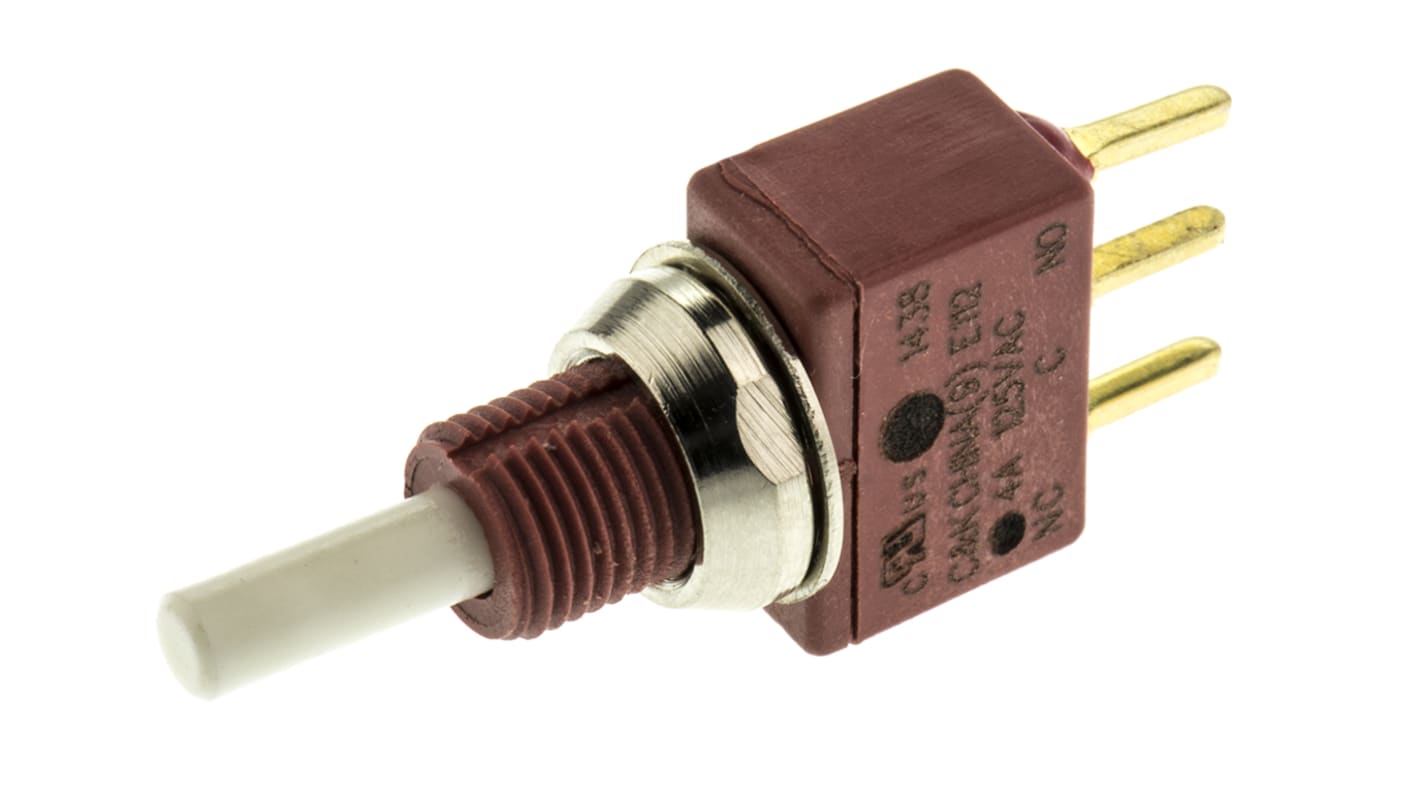

C & K Push Button Switch, Momentary, PCB, 6.35mm Cutout, SPDT
- RS Stock No.:
- 174-6088
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- E112LYCQE
- ผู้ผลิต / Manufacturer:
- C & K
63 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB348.15
(exc. VAT)
THB372.52
(inc. VAT)
| Units | Per unit |
| 1 - 9 | THB348.15 |
| 10 - 49 | THB337.70 |
| 50 - 99 | THB327.25 |
| 100 - 249 | THB320.28 |
| 250 + | THB313.31 |
- RS Stock No.:
- 174-6088
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- E112LYCQE
- ผู้ผลิต / Manufacturer:
- C & K
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
Momentary SPDT
Waterproof and suitable for immersion washing and wave soldering
Vertical versions available with or without mounting bracket
The E112LYCQE (174-6088) has a threaded bush for panel mounting and an 8.58 mm long pushbutton
Vertical with bracket (174-6101)
Right angle horizontal (174-6094)
Right angle vertical (174-6117)
Gold contacts
Sealed case material; Glass-filled nylon 6//6 (UL 94 V-0)
Dielectric strength: 1000Vrms
Insulation resistance: 1000 MOhm
Vertical versions available with or without mounting bracket
The E112LYCQE (174-6088) has a threaded bush for panel mounting and an 8.58 mm long pushbutton
Vertical with bracket (174-6101)
Right angle horizontal (174-6094)
Right angle vertical (174-6117)
Gold contacts
Sealed case material; Glass-filled nylon 6//6 (UL 94 V-0)
Dielectric strength: 1000Vrms
Insulation resistance: 1000 MOhm
Approvals
7777
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 6.35mm |
| Mounting Type | PCB |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Contact Current Rating | 4 A @ 28 V dc |
| Contact Material | Silver Plated Coin Silver |
| Manufacturer Part No. | E112LYCQE |
| Terminal Type | Through Hole |
