1-pole on-off switch Momentary Push Button Switch, IP67, Panel Mount

  • RS Stock No. 174-4060
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. 17.17252.30
  • ผู้ผลิต / Manufacturer EOZ
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
รายละเอียดสินค้า / Product Details

DJET miniature pushbuttons

These DJET series toggle and pushbutton switches are ideal for use across a number of industries and environments such as:-

• Outdoor applications
• Telecommunications
• Military Equipment
• Aviation Equipment
• Medical Equipment
• Power Supplies

How are they fitted?

The switches are mounted by pushing them through the mounting hole in the front panel and then secured with a fixing nut.

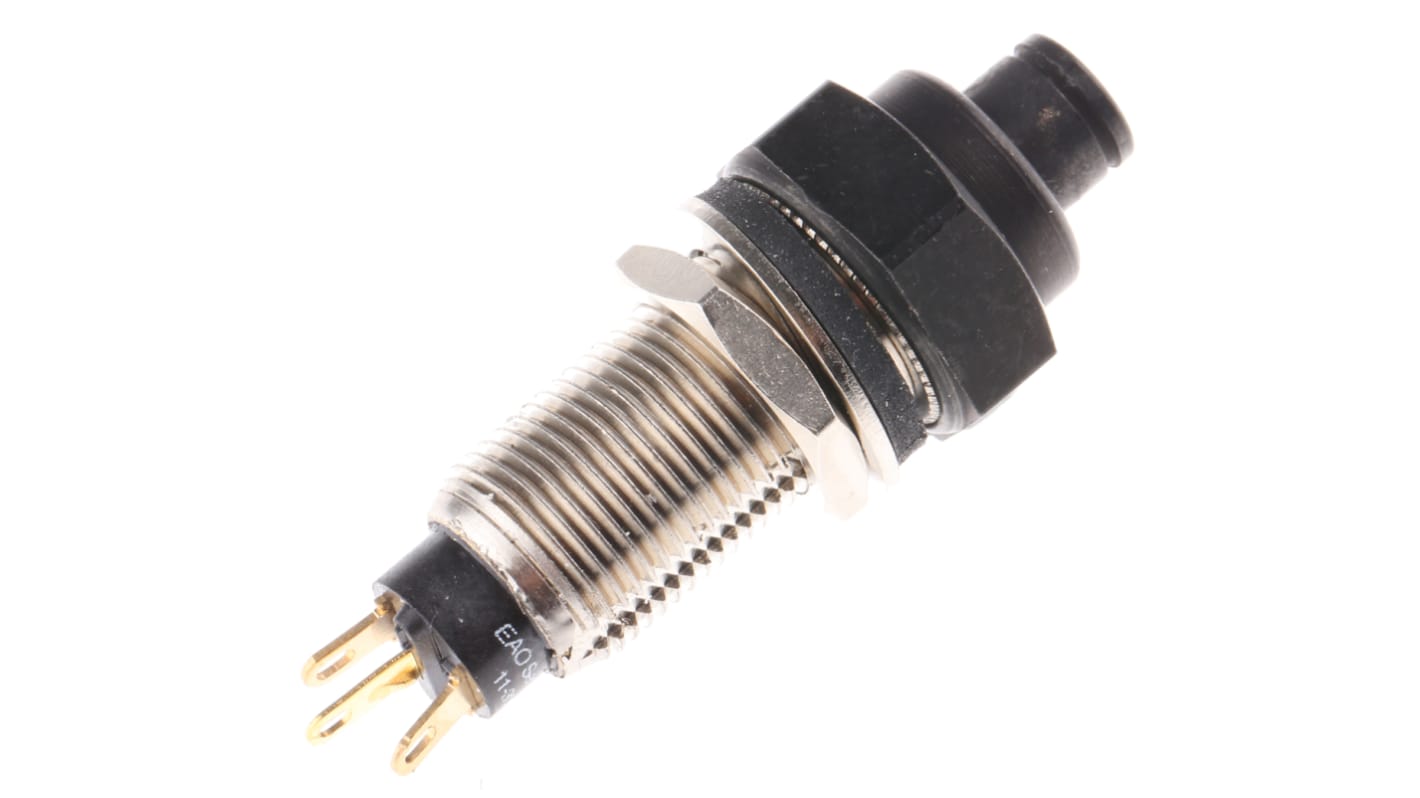

This 17.17252.30 momentary push button switch, has a mat black finish and a protection rating of IP67.

Features and Benefits

• Gold contact material which offers the best corrosion resistance.
• IP67 front sealing – totally protected against dust and protected against the effects of temporary immersion in liquids between 15cm and 1m. Duration of test 30 minutes.
• Single pole switch which controls just one circuit.
• Momentary push button switch only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
• Fit in to a mounting hole of 10 mm diameter.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated No
Contact Configuration Single Pole Single Throw (SPST)
Panel Cut Out Size 10 (Dia.)mm
Panel Cut Out Diameter 10mm
IP Rating IP67
Voltage Rating 12 - 220 V ac
Contact Current Rating 2.5 A @ 110 V ac
Actuator Shape Cylinder
Terminal Type Solder
Actuator Type Plunger
26 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 2,811.80
(exc. VAT)
THB 3,008.63
(inc. VAT)
Units
Per unit
1 - 9
THB2,811.80
10 - 49
THB2,703.63
50 - 99
THB2,586.76
100 - 249
THB2,458.99
250 +
THB2,317.80
