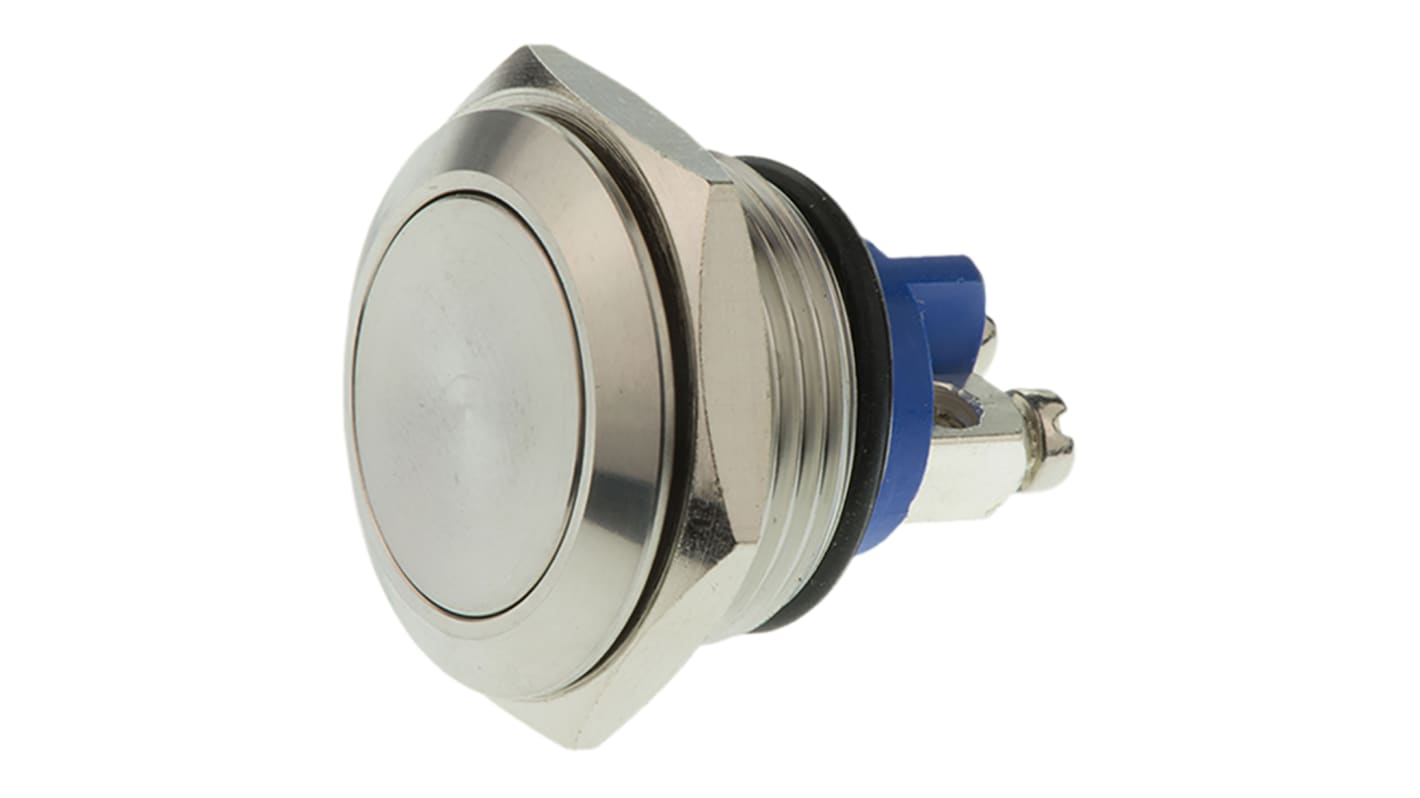

Schurter MCS ES 18 Series Push Button Switch, Momentary, Through Hole, 19mm Cutout, SPST, IP65, IP67
- RS Stock No.:
- 173-9927
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1301.9560
- ผู้ผลิต / Manufacturer:
- Schurter
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 29/04/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Box of 40)
THB819.765
(exc. VAT)
THB877.149
(inc. VAT)
| Units | Per unit | Per Box* |
| 40 - 40 | THB819.765 | THB32,790.60 |
| 80 - 120 | THB801.73 | THB32,069.20 |
| 160 + | THB784.515 | THB31,380.60 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 173-9927
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1301.9560
- ผู้ผลิต / Manufacturer:
- Schurter
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
Signal Switching Push-button Switch
Stainless steel momentary pushbutton switch
Panel sealed to IP65
Screw terminals
Contact rating: 50mA @ 24V d.c.
Minimum switching voltage: 50mV d.c.
Contact resistance: 10mΩ
Gold contacts
Mechanical life 500000 operations
Electrical life 300000 operations
Depth behind panel 33, max. panel thickness 6mm, panel cut-out 18mm
Panel sealed to IP65
Screw terminals
Contact rating: 50mA @ 24V d.c.
Minimum switching voltage: 50mV d.c.
Contact resistance: 10mΩ
Gold contacts
Mechanical life 500000 operations
Electrical life 300000 operations
Depth behind panel 33, max. panel thickness 6mm, panel cut-out 18mm
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 19mm |
| Mounting Type | Through Hole |
| Contact Configuration | SPST |
| Push Button Style | Round |
| IP Rating | IP65, IP67 |
| Series | MCS ES 18 |
| Contact Current Rating | 50 mA @ 24 V dc |
| Manufacturer Part No. | 1301.9560 |
