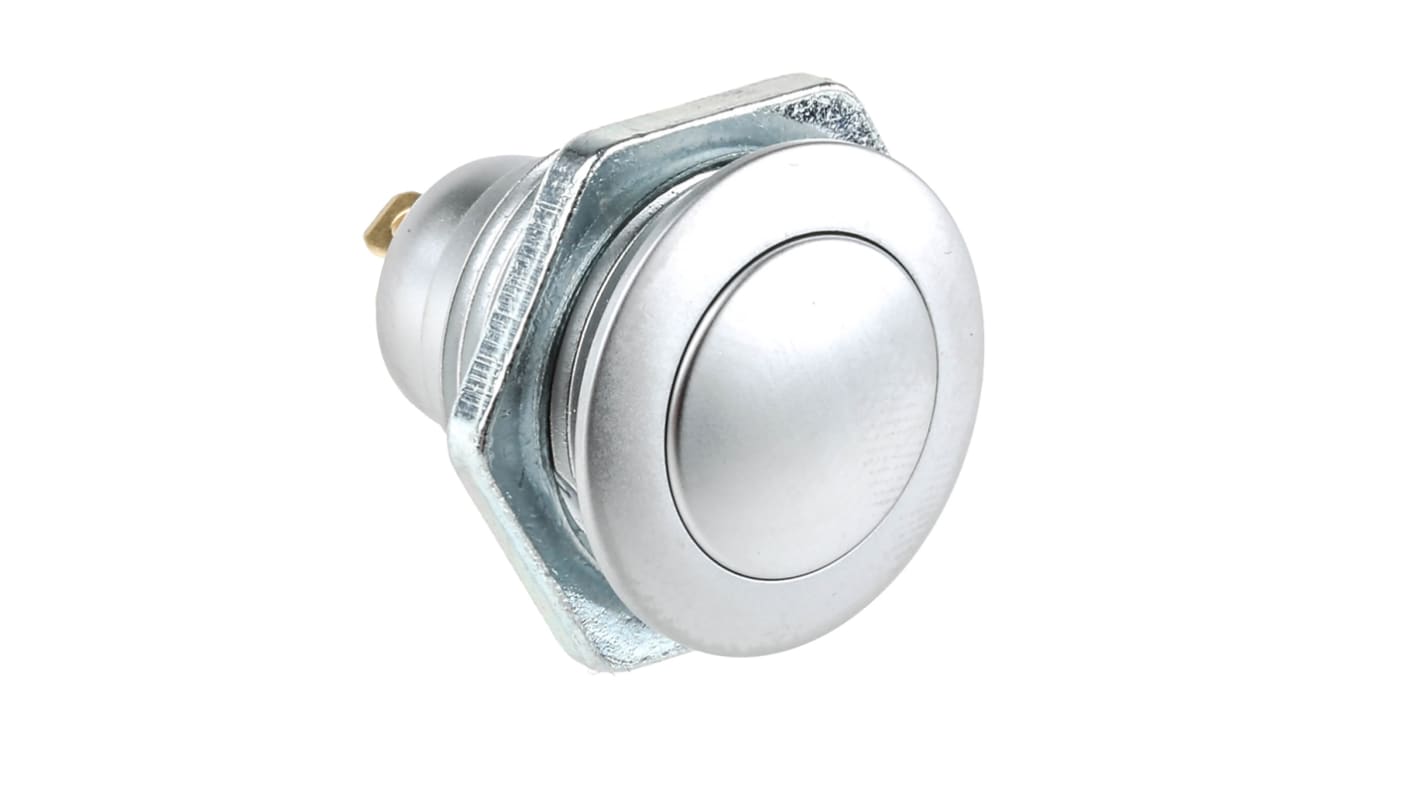

ITW Switches 57M Series Push Button Switch, Momentary, Panel Mount, 16.1mm Cutout, SPST, Clear LED, 48V dc, IP67
- RS Stock No.:
- 173-8567
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 57M 110N
- ผู้ผลิต / Manufacturer:
- ITW Switches
350 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Box of 50)
THB397.423
(exc. VAT)
THB425.243
(inc. VAT)
| Units | Per unit | Per Box* |
| 50 - 50 | THB397.423 | THB19,871.15 |
| 100 - 150 | THB388.679 | THB19,433.95 |
| 200 + | THB380.333 | THB19,016.65 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 173-8567
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 57M 110N
- ผู้ผลิต / Manufacturer:
- ITW Switches
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
รายละเอียดสินค้า / Product Details
57M Series Panel-sealed Metal
Miniature metal bodied pushbutton switches panel-sealed to IP67
Chrome plated zinc alloy housing and actuator
Gold-plated contacts and terminations
SPNO contacts rated 250mA @ 12Vdc, 100mA 48Vdc
18.5mm bezel diameter, 16mm mounting hole
Suitable for panel thickness of 0.5 to 3.0mm
Gold-plated contacts and terminations
SPNO contacts rated 250mA @ 12Vdc, 100mA 48Vdc
18.5mm bezel diameter, 16mm mounting hole
Suitable for panel thickness of 0.5 to 3.0mm
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
ITW Sealed
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 16.1mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Chrome |
| Contact Configuration | SPST |
| Voltage Rating | 48V dc |
| Push Button Style | Round |
| LED Colour | Clear |
| IP Rating | IP67 |
| Series | 57M |
| Contact Current Rating | 250 mA @ 12 V dc |
| Contact Material | Gold Plated |
| Manufacturer Part No. | 57M 110N |
| Contact DC Voltage Rating | 48V |
| Case Colour | Stainless Steel |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Solder |
| Maximum Operating Temperature | +85°C |
