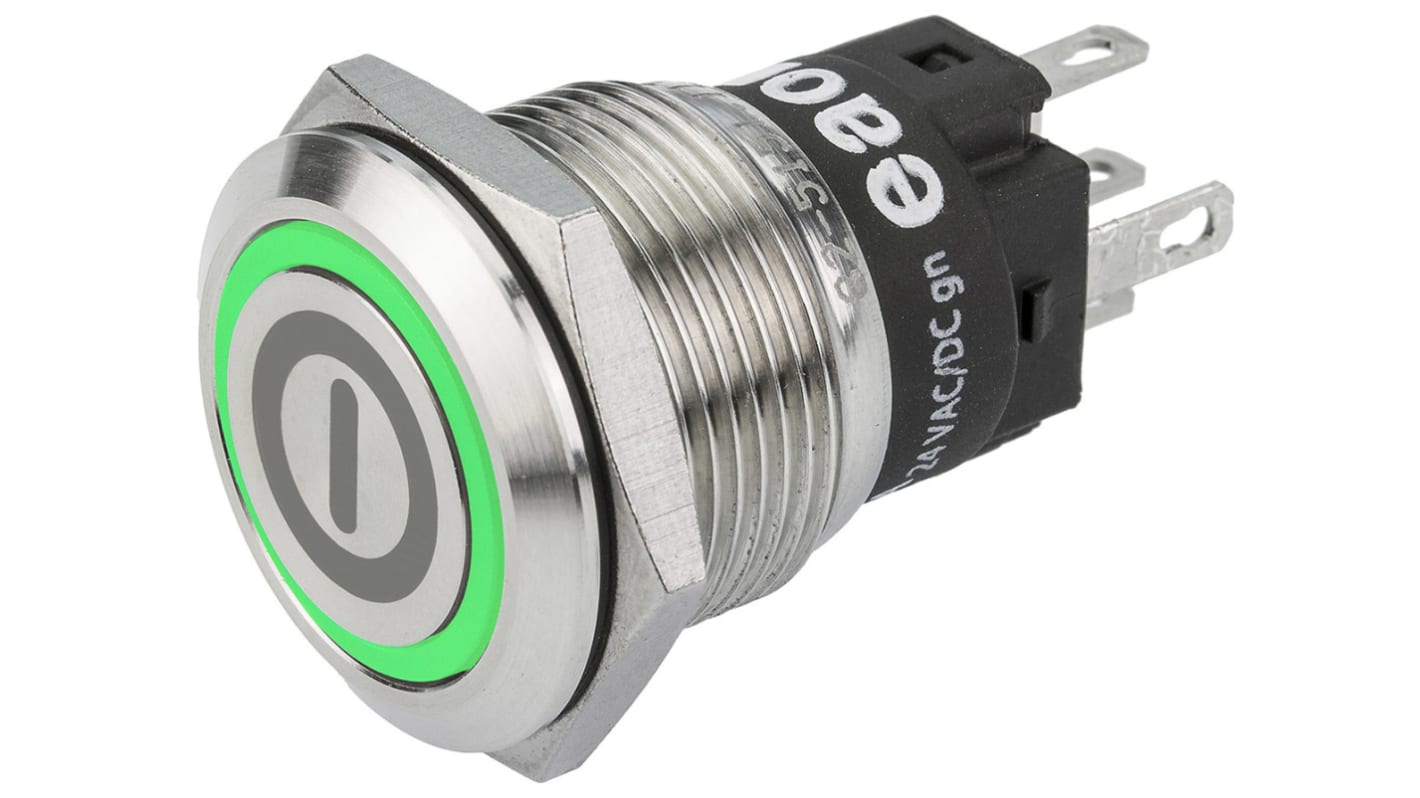

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, Green LED, 240V, IP65, IP67
- RS Stock No.:
- 124-4519
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 82-5151.1134.B001
- ผู้ผลิต / Manufacturer:
- EAO
33 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB844.11
(exc. VAT)
THB903.20
(inc. VAT)
Units | Per unit |
1 - 9 | THB844.11 |
10 - 24 | THB829.42 |
25 - 49 | THB815.43 |
50 - 149 | THB800.53 |
150 + | THB786.79 |
- RS Stock No.:
- 124-4519
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 82-5151.1134.B001
- ผู้ผลิต / Manufacturer:
- EAO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
รายละเอียดสินค้า / Product Details
EAO Series 82 Stainless Steel Illuminated Anti-Vandal Switch
EAO Series 82 of robust stainless steel housed vandal resistant switches. Series 82 have been designed to adhere to IK10 impact resistance & IP67 sealing requirements, making them suitable for exposed public applications. The series 82 are offered with either silver alloyed or gold-plated contacts, to offer reliable switching for low voltages & currents.
Features and Benefits
Vandal resistant: IK10 impact resistance & frontal protection up to IP67.
Optional illumination & laser marking options available.
Excellent, crisp tactile feedback.
> 1 million cycles of operation.
Typical Applications
Exposed public areas.
Medical equipment.
Audio and video equipment.
Building management.
Machinery & factory equipment.
Vandal resistant: IK10 impact resistance & frontal protection up to IP67.
Optional illumination & laser marking options available.
Excellent, crisp tactile feedback.
> 1 million cycles of operation.
Typical Applications
Exposed public areas.
Medical equipment.
Audio and video equipment.
Building management.
Machinery & factory equipment.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Switch Operation | Momentary |
Illuminated | Yes |
Panel Cut Out Diameter | 19mm |
Mounting Type | Panel Mount |
Push Button Colour | Silver |
Contact Configuration | SPDT |
Voltage Rating | 240V |
Push Button Style | Round |
LED Colour | Green |
IP Rating | IP65, IP67 |
Series | 82 |
Contact Current Rating | 3A |
Contact Material | Silver Alloy |
Contact AC Voltage Rating | 240V |
Manufacturer Part No. | 82-5151.1134.B001 |
Contact DC Voltage Rating | 240V |
Case Colour | Silver |
Legend | ON / OFF |
Terminal Type | Plug In, Solder |
Operating Temperature Range | -30°C to +70°C |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -30°C |
