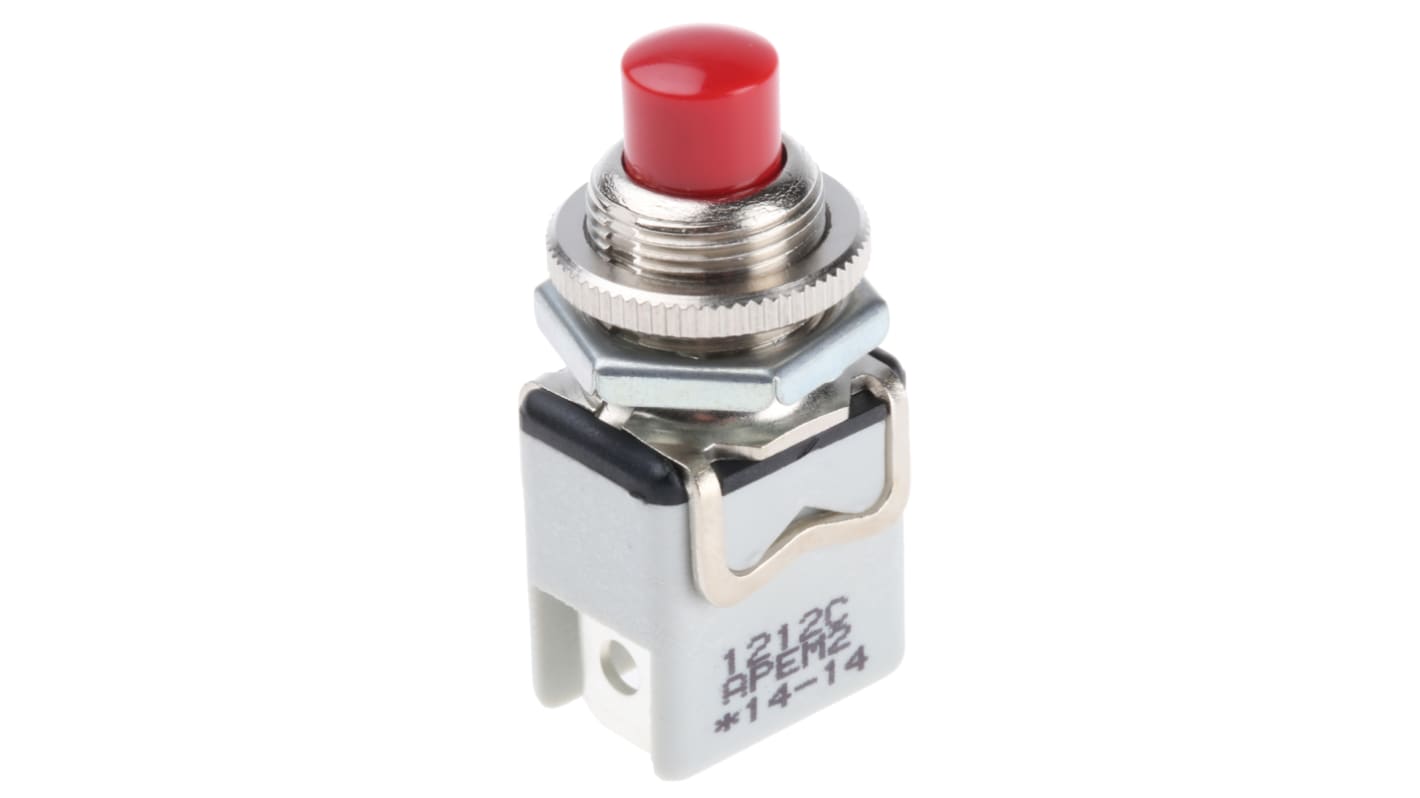

APEM 1NC Momentary Push Button Switch, 12.2 (Dia.)mm, Panel Mount, 250V ac

  • RS Stock No. 103-6274
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. 1212C RED
  • ผู้ผลิต / Manufacturer APEM
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
รายละเอียดสินค้า / Product Details

1200 Series Singel Push-Button, 12mm

From Apem, this 1200 series push-button switch is single pole with a momentary action and a low-resistance plunger style actuator. Panel mounting and featuring 0.250in faston terminals, this Apem switch is easy to install.

A push button boot (stock no: 103-6303) and chrome panel nut cap (stock no: 103-6319) are available separately.

• Contact rating of 4A @ 250Vac, 8A @ 125Vac, 4A @ 24Vdc
• Contact resistance of 10mΩ
• Insulation resistance of 1000MΩ min. @ 500Vdc
• Dielectric strength of 2000Vrms
• Silver Contact material
• Mechanical life of 10000 operations
• Operating temperature of -20 to +55°C
• Panel cut-out: 12.2mm dia.
• Depth behind panel: 22mm
• Bush thread M12 x 0.75
• Chrome button version with conical panel "nut"

Features and Benefits:

Approvals

UL; CSA; VDE

คุณสมบัติ / Specifications
คุณสมบัติ Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated No
Contact Configuration 1NC
Panel Cut Out Size 12.2 (Dia.)mm
Panel Cut Out Diameter 12.2mm
Actuator Colour Red
Voltage Rating 250V ac
Contact Current Rating 2 A @ 24 V dc
Actuator Shape Cylinder
Terminal Type Solder, Tab
Actuator Type Plunger
497 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 219.01
(exc. VAT)
THB 234.34
(inc. VAT)
Units
Per unit
1 - 9
THB219.01
10 - 49
THB194.90
50 - 99
THB170.80
100 - 249
THB146.68
250 +
THB122.56
