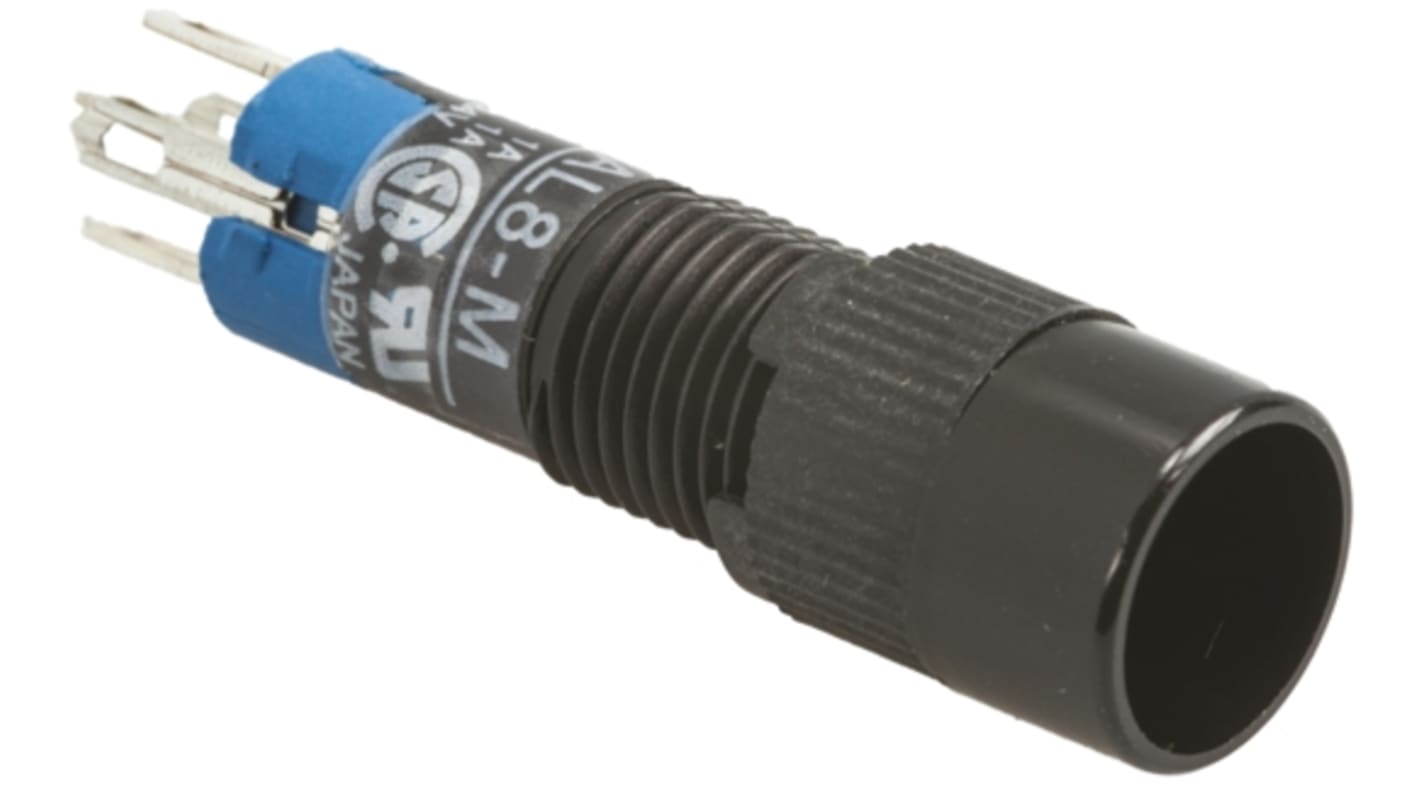

Idec Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 8mm Cutout, SPDT, 250V, IP40

RS Stock No.:: 664-777
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: AL8M-M100
ผู้ผลิต / Manufacturer:: Idec

Idec Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 8mm Cutout, SPDT, 250V, IP40

427 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)

เพิ่ม / Added

ราคา / Price Each

THB454.95

(exc. VAT)

THB486.80

(inc. VAT)

Units	Per unit
1 - 9	THB454.95
10 - 49	THB441.30
50 - 99	THB427.64
100 - 249	THB418.54
250 +	THB409.44

RS Stock No.:: 664-777
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: AL8M-M100
ผู้ผลิต / Manufacturer:: Idec

ข้อมูลทางเทคนิค / Technical Data Sheets

Datasheet - A Series Miniature Control Units

Legislation and Compliance

COO (Country of Origin):: JP

รายละเอียดสินค้า / Product Details

8mm Sub-miniature Illuminated Push-button Switches

8mm contact indicators for panel mounting
LED illumination, Suitable LEDs are supplied separately
Indicators are available in both square and round styles
Solder Tab terminals

LEDs

A range of LEDs specifically for use with this sub-miniature indicator series
Current should be limited to 20mA by use of a suitable external resistor as detailed at the beginning of the Optoelectronics/Indicators section. VF @ IF 20mA=1.7V (red), 2.1V (green) and 2.2V (yellow)

Note: When not illuminated, the green LED appears to be yellow.

Lenses

Two-part lenses comprising a diffuser and a coloured transparent front cover. Diffuser may be marked to indicate switch function, etc

Note

Square and round bezel indicators do not include a lens, switch or LED. Suitable lenses need to be ordered separately.

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Switch Operation	Momentary
Illuminated	Yes
Panel Cut Out Diameter	8mm
Mounting Type	Panel Mount
Contact Configuration	Single Pole Double Throw (SPDT)
Voltage Rating	250V
IP Rating	IP40
Contact Current Rating	100 mA @ 50 V ac
Manufacturer Part No.	AL8M-M100
Terminal Type	Solder
