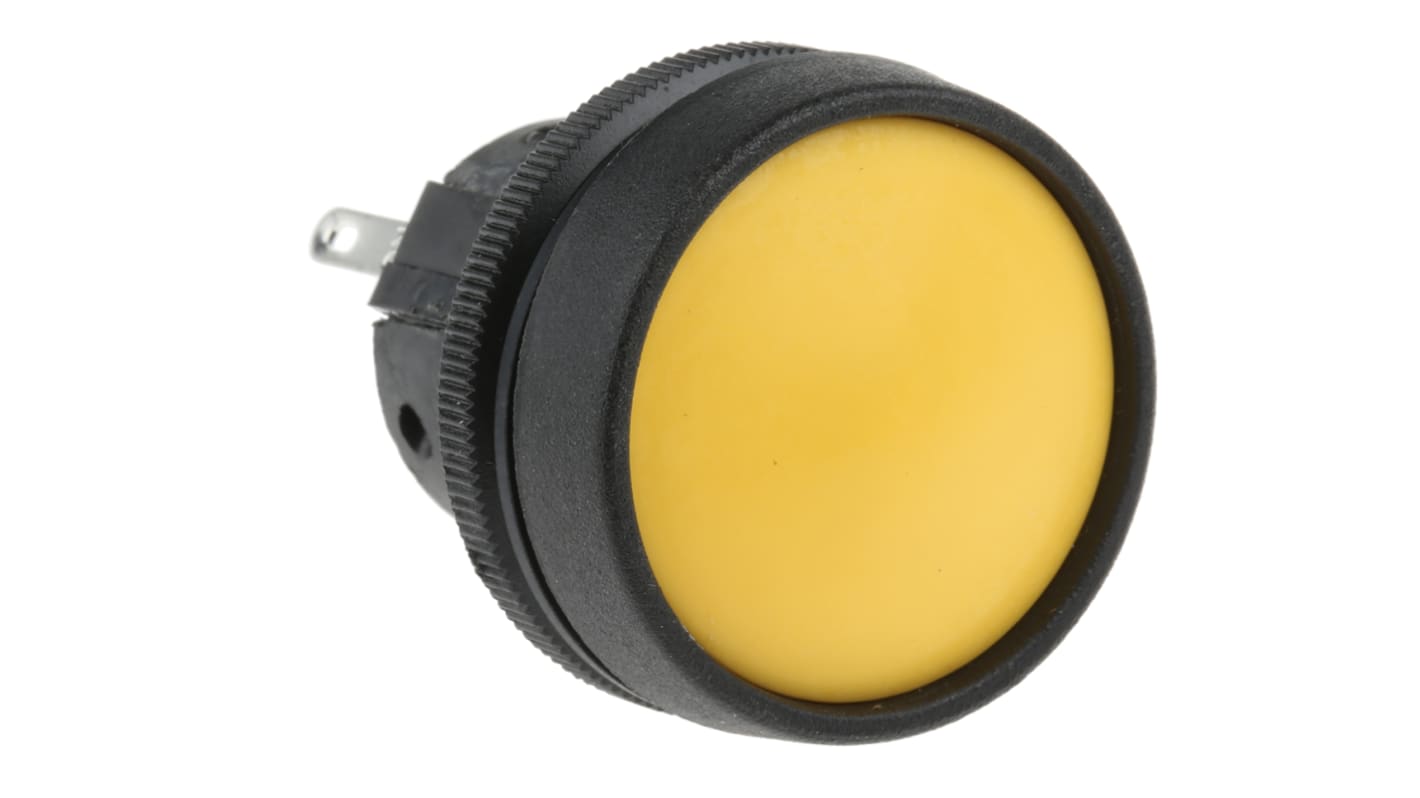

ITW Switches 76-91 Series Push Button Switch, Momentary, Panel Mount, 22.5mm Cutout, SPDT, Clear LED, 250V ac, IP67
- RS Stock No.:
- 350-311
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 76-9115/439088
- ผู้ผลิต / Manufacturer:
- ITW Switches
150 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB762.93
(exc. VAT)
THB816.34
(inc. VAT)
| Units | Per unit |
| 1 - 9 | THB762.93 |
| 10 - 49 | THB747.68 |
| 50 - 99 | THB732.72 |
| 100 - 499 | THB718.07 |
| 500 + | THB590.98 |
- RS Stock No.:
- 350-311
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 76-9115/439088
- ผู้ผลิต / Manufacturer:
- ITW Switches
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- BZ
รายละเอียดสินค้า / Product Details
Flush Mount Pushbutton Switches, IP67 Sealed
The 76-91 Flexibutton Series from ITW, have been designed to cover a wide range of demanding environmental applications. Such as:-
• Field equipment
• Dairy
• Mining
• Hydraulic vehicles
• Marine Instrumentation
• Exterior security call points
• Car wash machinery
• Dairy
• Mining
• Hydraulic vehicles
• Marine Instrumentation
• Exterior security call points
• Car wash machinery
Features and Benefits
• Waterproof panel sealed to IP67 – approved to BS5420 (IEC144).
• The body of the flexibutton is flame retardant to UL94-VO.
• Robust construction making them ideal for use in harsh environments.
• Six button colours are available with solder/quick contact terminals as standard.
• Maximum panel thickness 4 mm.
• The body of the flexibutton is flame retardant to UL94-VO.
• Robust construction making them ideal for use in harsh environments.
• Six button colours are available with solder/quick contact terminals as standard.
• Maximum panel thickness 4 mm.
Supplied with
Locknut and sealing washer
This 76-9115/439088 is a momentary, panel mount push button switch.
Features and Benefits
• Yellow indicator colour
• Momentary 1 pole
• Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position.
• Momentary 1 pole
• Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 22.5mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Yellow |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| LED Colour | Clear |
| IP Rating | IP67 |
| Series | 76-91 |
| Contact Current Rating | 10 A @ 250 V ac |
| Contact Material | Fine Silver |
| Manufacturer Part No. | 76-9115/439088 |
| Case Colour | Stainless Steel |
| Contact DC Voltage Rating | 5V |
| Contact AC Voltage Rating | 250V |
| Terminal Type | Solder |
| Operating Temperature Range | -40 → +80°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
