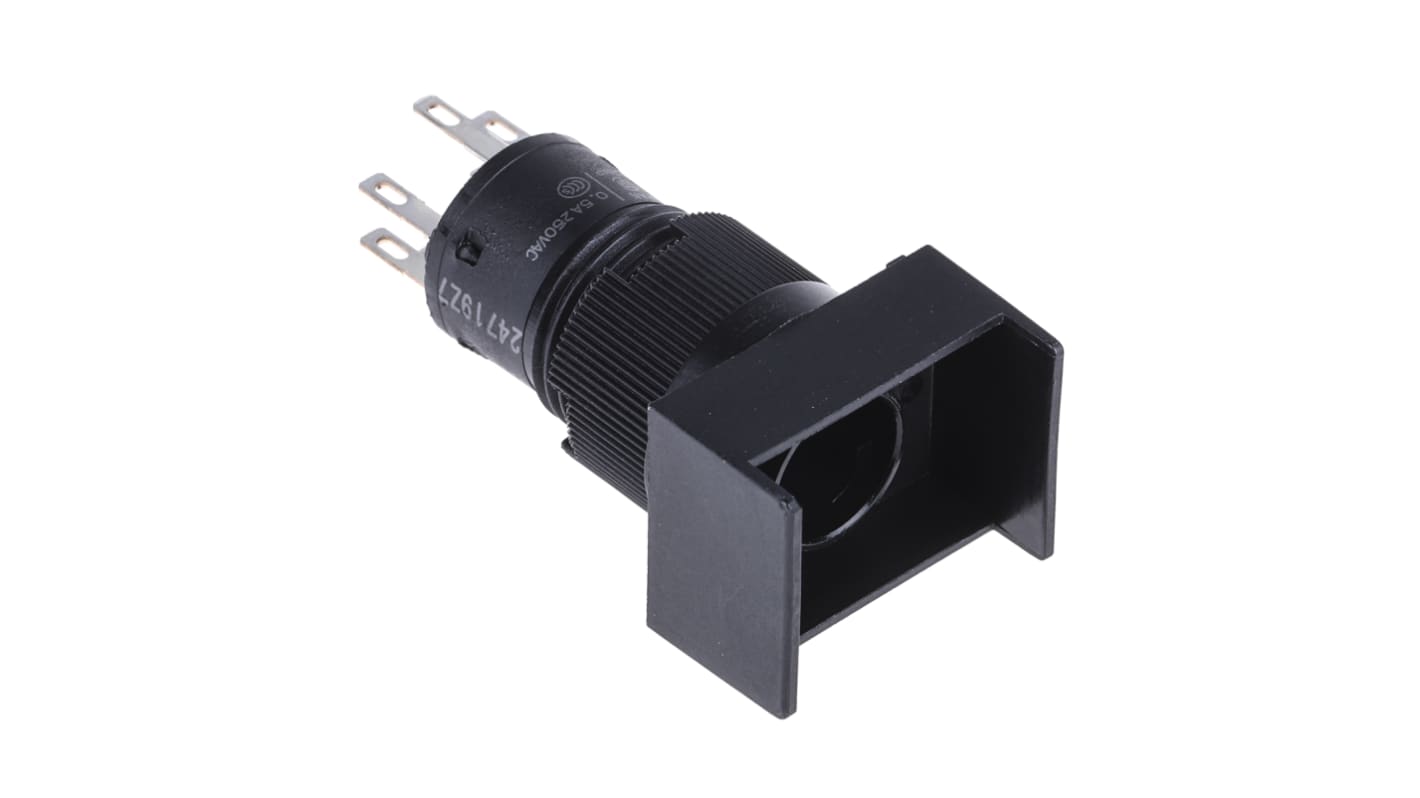

Omron Illuminated Push Button Switch, Latching, Panel Mount, 12mm Cutout, SPST, 250V ac, IP40
- RS Stock No.:
- 198-567
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- A3CJ-7021
- ผู้ผลิต / Manufacturer:
- Omron
127 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB1,074.90
(exc. VAT)
THB1,150.14
(inc. VAT)
| Units | Per unit |
| 1 - 9 | THB1,074.90 |
| 10 - 49 | THB1,031.91 |
| 50 + | THB988.91 |
- RS Stock No.:
- 198-567
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- A3CJ-7021
- ผู้ผลิต / Manufacturer:
- Omron
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
Panel Mounting Illuminated Switches and Indicators
Each switch has two sets of SPST contacts, one normally open and one normally closed, permitting a wide variety of switching functions to be carried out
A complete assembly requires a switch unit (or indicator), a lens and a lamp, each of which must be ordered separately
The lenses contain a removable legend plate, which may be marked by the user
Lamps can be changed from front of panel
Matching indicators
A complete assembly requires a switch unit (or indicator), a lens and a lamp, each of which must be ordered separately
The lenses contain a removable legend plate, which may be marked by the user
Lamps can be changed from front of panel
Matching indicators
Approvals
UL, CSA
Approvals
UL; CSA
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | Yes |
| Panel Cut Out Diameter | 12mm |
| Mounting Type | Panel Mount |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Voltage Rating | 250V ac |
| Push Button Style | Rectangular |
| IP Rating | IP40 |
| Contact Current Rating | 500 mA @ 250 V ac |
| Manufacturer Part No. | A3CJ-7021 |
| Terminal Type | Solder |
