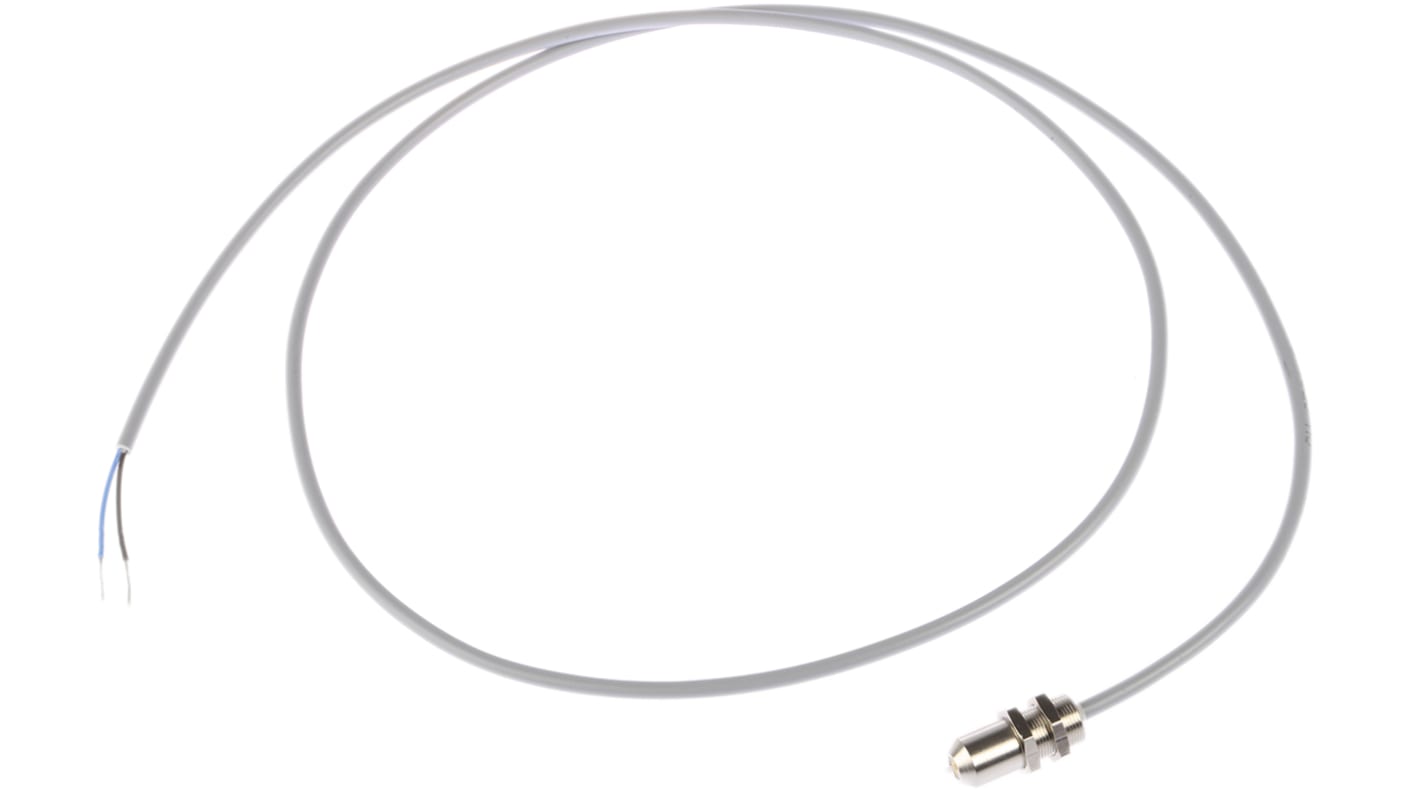

Baumer Barrel Nickel Plated Brass 10 Hz Position Sensor, 2 (dc) mA, 50 (ac) mA, 24 V ac, IP50

  • RS Stock No. 341-418
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. MY COM A 75/80
  • ผู้ผลิต / Manufacturer Baumer
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
รายละเอียดสินค้า / Product Details

My-Com Precision Position Switches

High precision measuring and control switches which can be used in a mass production environment as a control gauge to measure length, diameter or centralisation. They may also be used to detect small expansions due to temperature and pressure changes.

Nickel plated brass housing
Activating force 75g
Repeatability ±0.001mm
Hysteresis ±0.002mm
Mechanical life 106 operations
Switching frequency 10Hz
Ruby or sapphire switches
Temperature range -20 → +75°C

Note

Stock no. 446-0254 is not illustrated, this is a Plug-In termination and requires an M8 3pin lead. For a suitable lead see Stock no. 290-4437 typically. Pre-Wired types are terminated with 800mm of PVC cable.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Body Style Barrel
Switching Frequency 10 Hz
Terminal Type Wire Lead
Switching Current 2 (dc) mA, 50 (ac) mA
Maximum AC Voltage 24V
Maximum DC Voltage 15V
Supply Voltage 24 V ac
Housing Material Nickel Plated Brass
IP Rating IP50
Length 21.5mm
Maximum Operating Temperature +75°C
Minimum Operating Temperature -20°C
7 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 6,912.75
(exc. VAT)
THB 7,396.64
(inc. VAT)
Units
Per unit
1 - 5
THB6,912.75
6 +
THB6,719.53
