รายละเอียดสินค้า / Product Details

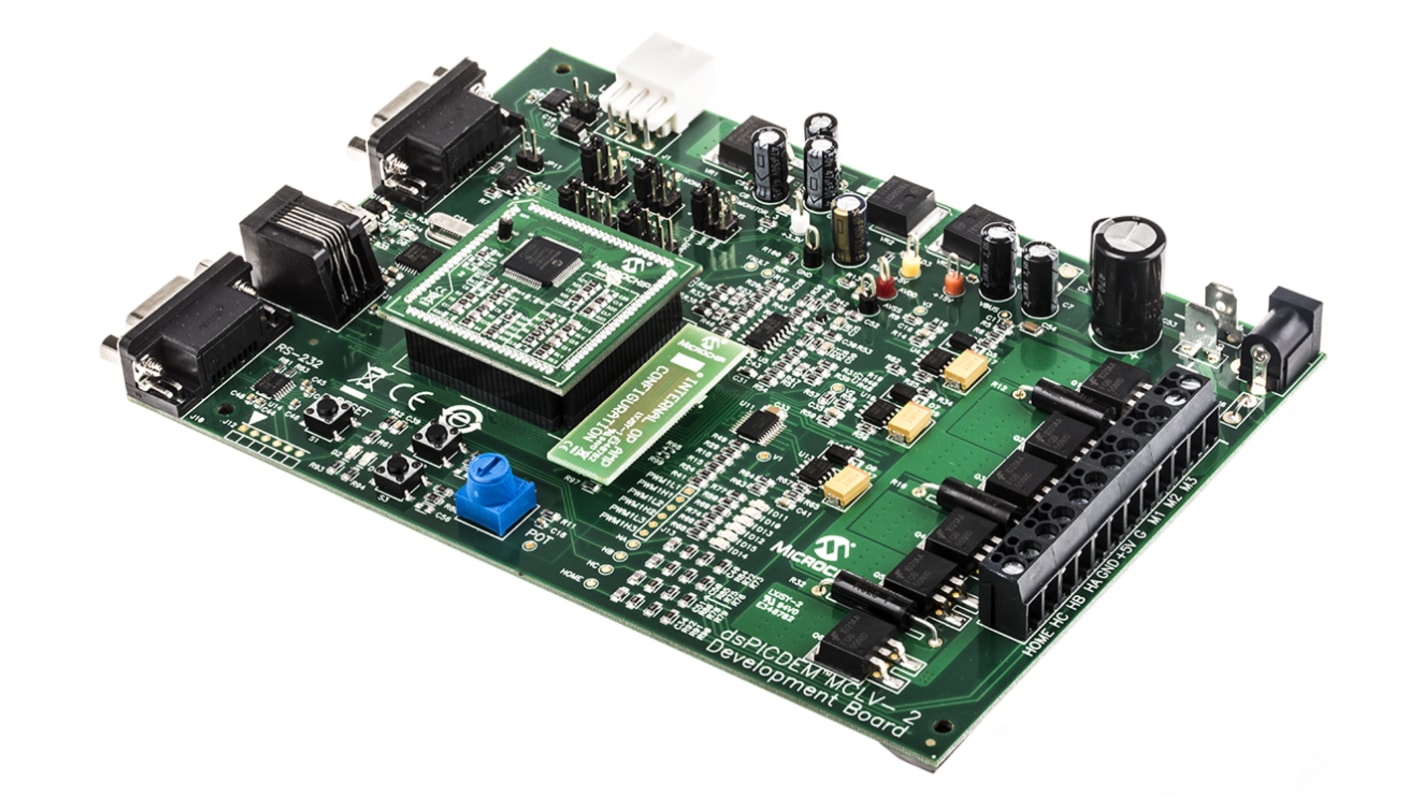

dsPICDEM MCLV Development Board
The dsPICDEM™ MCLV Development Board provides a method of evaluating and developing sensored or sensorless Brushless DC (BLDC) and permanent magnet synchronous motor control applications
Features and Benefits:
MCLV supports SOIC28 & 100-pin Plug-In-Modules (PIM) with dsPIC33F devices (RS 660-1268)
MCLV-2 supports SOIC28 & 100-pin Plug-In-Modules (PIM) with dsPIC33F & dsPIC33E devices (RS 798-9578)
The board is capable of controlling BLDC motors rated up to 48V @ 15A
Multiple serial communication channels: USB, CAN, LIN and RS-232
MCLV-2 supports SOIC28 & 100-pin Plug-In-Modules (PIM) with dsPIC33F & dsPIC33E devices (RS 798-9578)
The board is capable of controlling BLDC motors rated up to 48V @ 15A
Multiple serial communication channels: USB, CAN, LIN and RS-232
Applications:
The dsPICDEM MCLV board can be used in many applications where a brushless motor or magnet sync motor need to be controlled, such as:
- Power tools
- Sewing machines
- Toys
- Electronic locks
- Low-cost drones
Whats in the box?
- 1x dsPICDEM MCLV-2 Development board
- 1x dsPIC33EP256MC506 Internal OpAmp PIM
- 2x Matrix boards to config the MCLV-2 – Internal & external
Supplied with
dsPIC33FJ32MC204 PIM (MCLV board)
dsPIC33EP256MC506 PIM (MCLV-2 board)
dsPIC33EP256MC506 PIM (MCLV-2 board)
dsPIC® Development Tools
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Power Management Function | BLDC Motor |
Kit Classification | Development Board |
Kit Name | dsPICDEM MCLV-2 |
