- RS Stock No.:
- 249-8777
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STR-FAN65004C-GEVB
- ผู้ผลิต / Manufacturer:
- onsemi
- RS Stock No.:
- 249-8777
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STR-FAN65004C-GEVB
- ผู้ผลิต / Manufacturer:
- onsemi
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

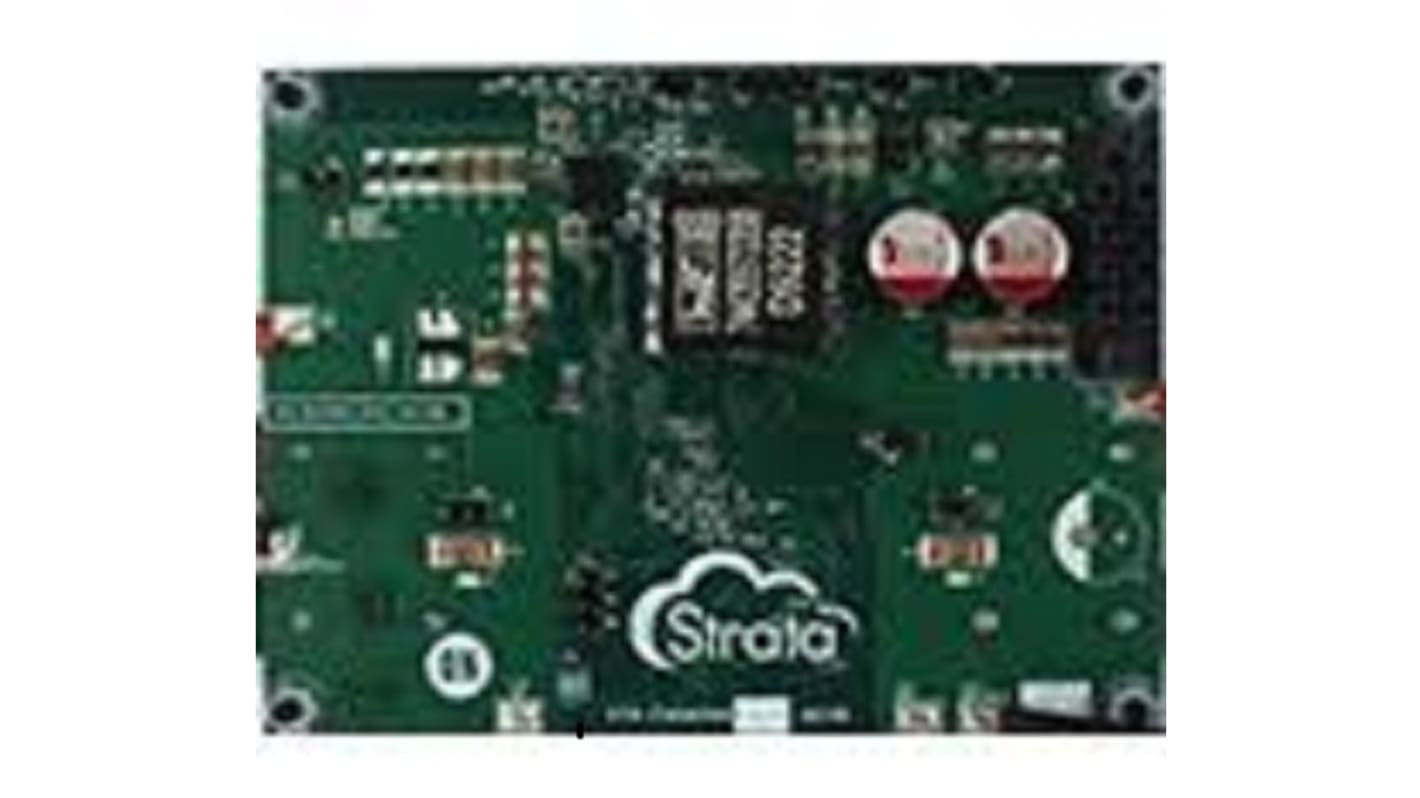

The ON Semiconductor evaluation board belonging to the STR-FAN6500XX-GEVB family, which provides an easy to use evaluation platform within the Strata Development Environment for the FAN65004B, FAN65004C, FAN65005A, and FAN65008B synchronous buck regulators from ON Semiconductor.
Voltage input range from 4.5 to 65 V
Fixed frequency voltage mode PWM control with input voltage feed-forward
Adjustable switching frequency from 100 kHz to 1 MHz
Selectable CCM PWM mode of PFM Mode for light loads
Wide array of protection circuits including OCP, TSD, OVP, UVP and SCP
Continuous 6 A output current
Fixed frequency voltage mode PWM control with input voltage feed-forward
Adjustable switching frequency from 100 kHz to 1 MHz
Selectable CCM PWM mode of PFM Mode for light loads
Wide array of protection circuits including OCP, TSD, OVP, UVP and SCP
Continuous 6 A output current
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Power Management Function | Buck Regulator |
For Use With | FAN65004C |
Kit Classification | Evaluation Kit |
Kit Name | STR-FAN65004C-GEVB: Strata Enabled FAN65004C 65V Sync Buck |
