- RS Stock No.:
- 222-1958
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX17644BEVKIT#
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
ผลิตภัณฑ์ที่เลิกผลิตแล้ว
- RS Stock No.:
- 222-1958
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX17644BEVKIT#
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

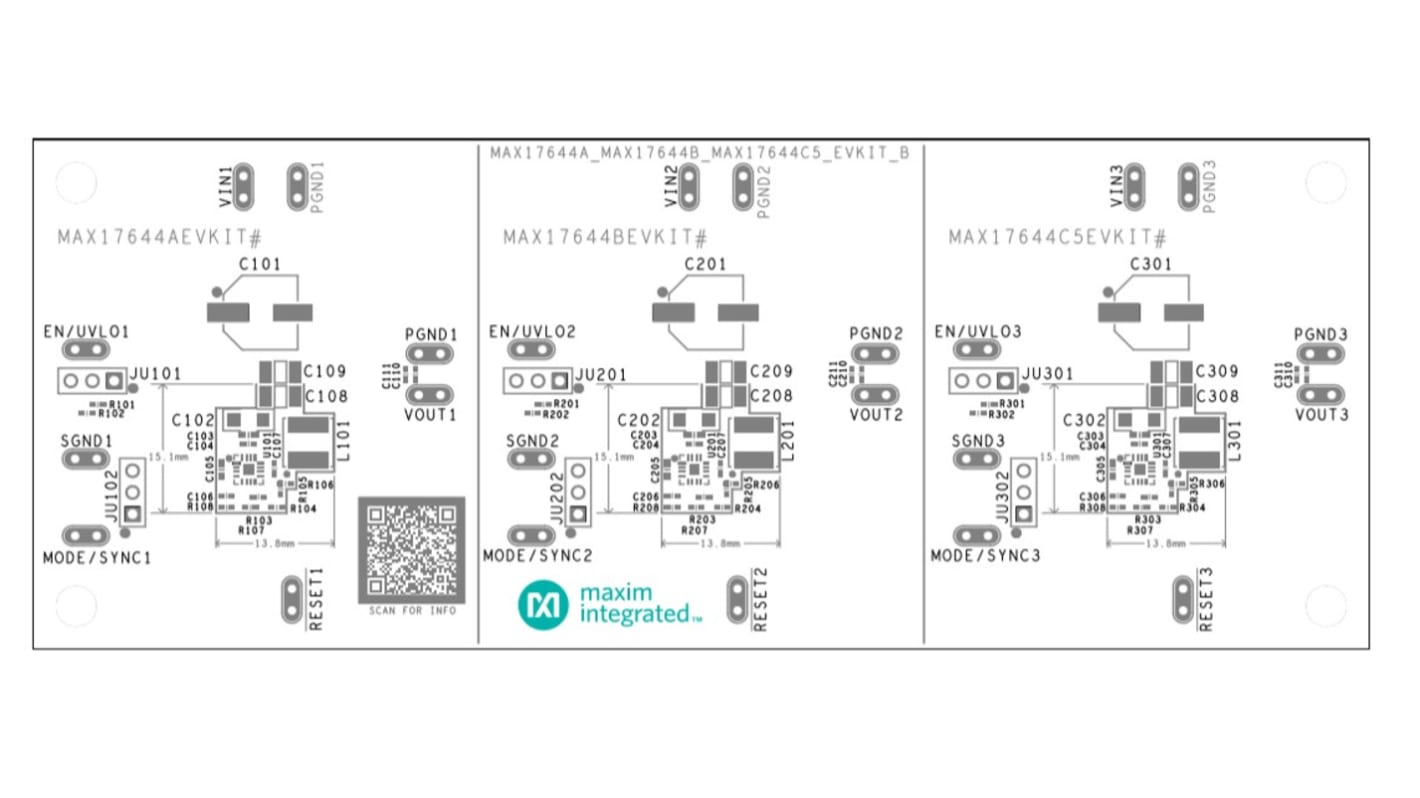

The Maxim Integrated MAX17644 evaluation kit (comprising the MAX17644AEVKIT#, MAX17644BEVKIT#, and MAX17644C5EVKIT# EV kits) provides proven designs to evaluate the MAX17644A, MAX17644B, and MAX17644C high-efficiency, high-voltage Himalaya synchronous DC-DC converters. The MAX17644BEVKIT# EV kit delivers up to 2.7A, with a fixed 5V output (VOUT2). The EV kit is configured to operate at 500kHz (fSW2) switching frequency over a 6.5V to 36V input voltage range.
Wide 4.5V to 36V input voltage range
Selectable PWM, PFM, and DCM modes of operation
Adjustable soft-start time
Overcurrent and overtemperature protection
Proven PCB layout
Fully assembled and tested
Selectable PWM, PFM, and DCM modes of operation
Adjustable soft-start time
Overcurrent and overtemperature protection
Proven PCB layout
Fully assembled and tested
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Power Management Function | DC-DC Converter |
For Use With | MAX17644B |
Kit Classification | Evaluation Kit |
Featured Device | MAX17644 |
Kit Name | MAX17644BEVKIT# |
