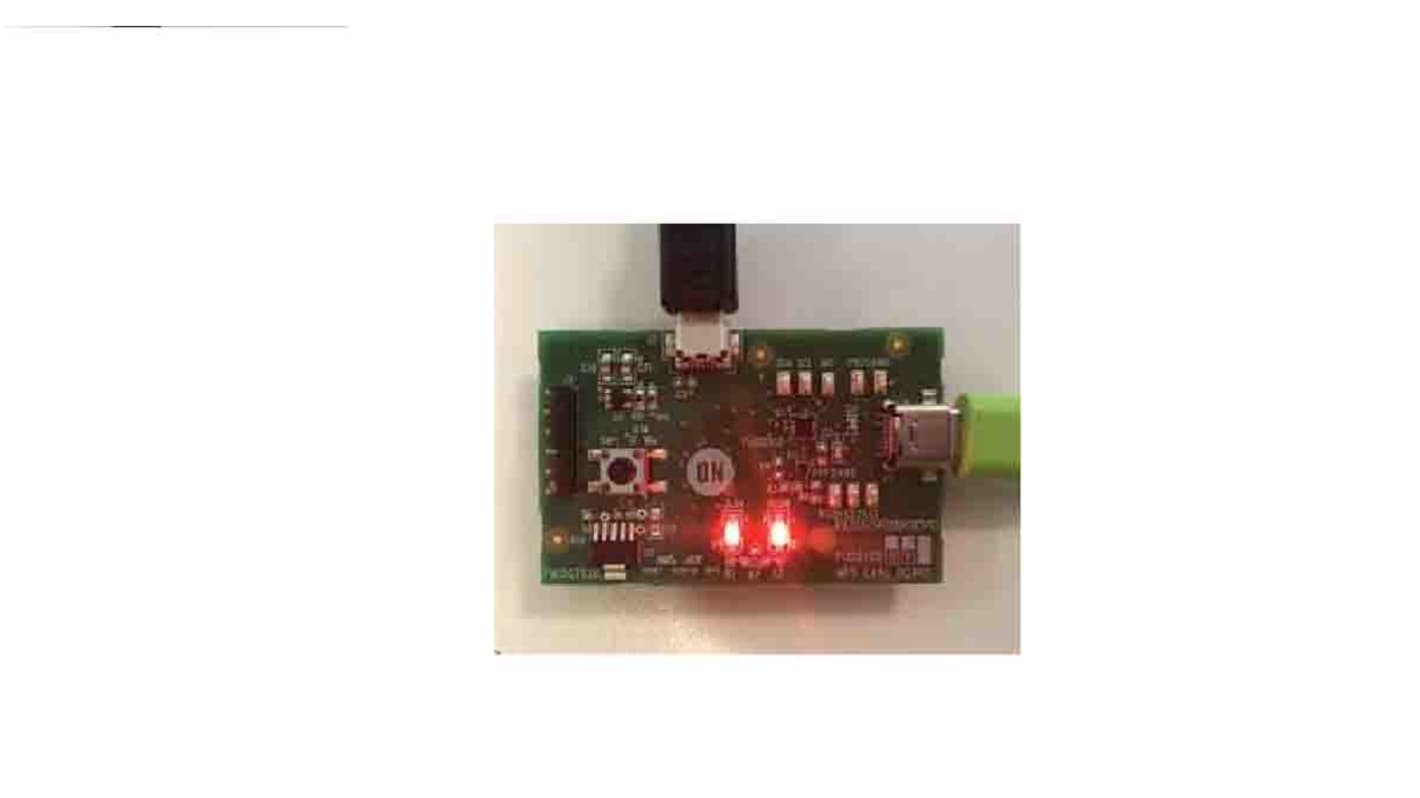

onsemi FUSB3307MX-PPS-GEVB USB Type-C Source Controller Supporting USB Power Delivery 3.0 w/PPS and a 4-Switch Buck

The ON Semiconductor evaluation boards contain a USB Type-C source controller supporting USB Power Delivery (PD) 3.0 with PPS (Programmable Power Supply) based on USB PD 3.0 standards, as well as a 4-stage buck boost controller, delivering VBUS levels from 3.3V to 21V, and supporting nominal current loads up to 5A. has a VBAT connector for a DC power supply. It connects to the input switch of the NCV81599 DC to DC 4-Switch buck boost controller. The FUSB3307 is used for CV/CC control by providing feedback compensation to the NCV81599 controller.

Type-C source only
Detects cable marker identity and offers 3A or 5A power objects
VCONN supply
CV/CC Control with CATH pin
Cable fault detection
External NFET for VBUS control
Easily accessible test points for rapid evaluation and performance measurements
