- RS Stock No.:
- 184-0933
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MIKROE-3116
- ผู้ผลิต / Manufacturer:
- MikroElektronika
- RS Stock No.:
- 184-0933
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MIKROE-3116
- ผู้ผลิต / Manufacturer:
- MikroElektronika
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
12-bit resolution
± 1 LSB max DNL
± 1 LSB max INL (MCP3204/3208-B
± 2 LSB max INL (MCP3204/3208-C
4 (MCP3204) or 8 (MCP3208) input channels
analogue inputs programmable as single-ended or pseudo-differential pairs
On-chip sample and hold
SPI serial interface (modes 0,0 and 1,1
Single supply operation: 2.7V – 5.5V
100 ksps max. sampling rate at VDD = 5V
50 ksps max. sampling rate at VDD = 2.7V
Low power CMOS technology:
- 500 nA typical standby current, 2 μA max.
- 400 μA max. active current at 5V
Industrial temp range: -40°C to +85°C
Available in PDIP, SOIC and TSSOP packages
Applications
Sensor Interface
Process Control
Data Acquisition
Battery Operated Systems
± 1 LSB max DNL
± 1 LSB max INL (MCP3204/3208-B
± 2 LSB max INL (MCP3204/3208-C
4 (MCP3204) or 8 (MCP3208) input channels
analogue inputs programmable as single-ended or pseudo-differential pairs
On-chip sample and hold
SPI serial interface (modes 0,0 and 1,1
Single supply operation: 2.7V – 5.5V
100 ksps max. sampling rate at VDD = 5V
50 ksps max. sampling rate at VDD = 2.7V
Low power CMOS technology:
- 500 nA typical standby current, 2 μA max.
- 400 μA max. active current at 5V
Industrial temp range: -40°C to +85°C
Available in PDIP, SOIC and TSSOP packages
Applications
Sensor Interface
Process Control
Data Acquisition
Battery Operated Systems
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|

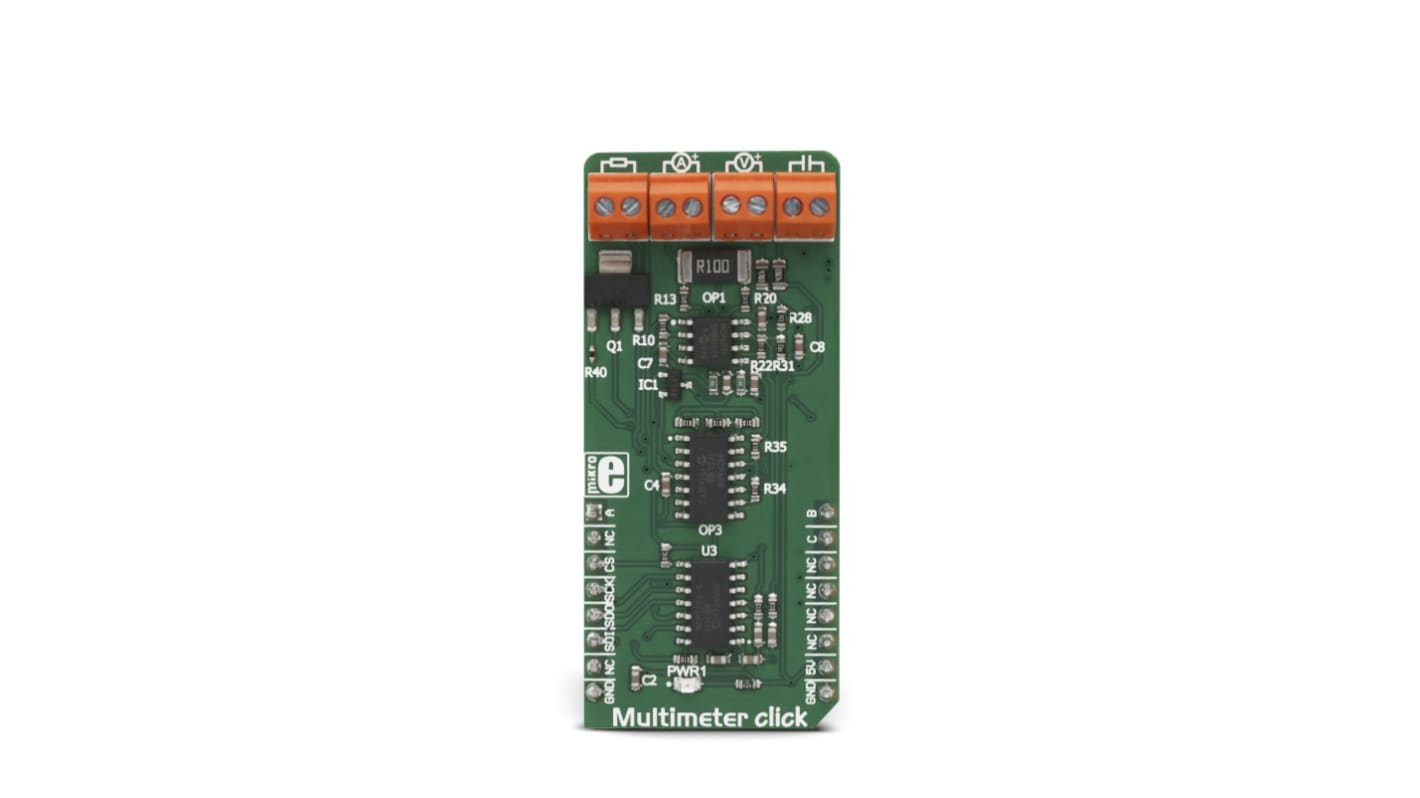

Kit Name | Multimeter Click Board |
