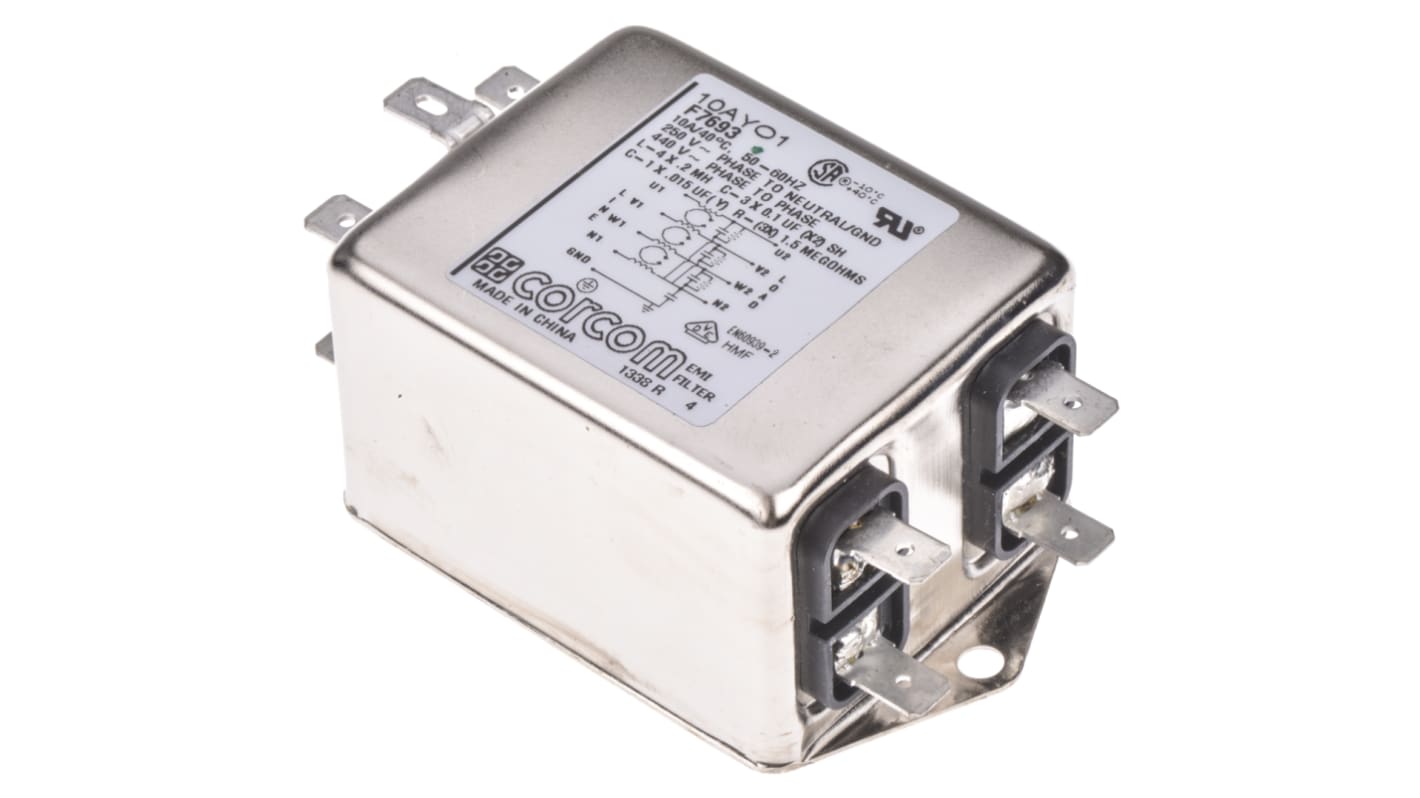

TE Connectivity, Corcom AYO 10A 250 V ac 50Hz, Flange Mount RFI Filter, Spade 3 Phase
- RS Stock No.:
- 881-3813P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 6609066-3
- ผู้ผลิต / Manufacturer:
- TE Connectivity
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 04/07/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (Supplied in a Box)
THB1,242.45
(exc. VAT)
THB1,329.42
(inc. VAT)
| Units | Per unit |
| 3 - 4 | THB1,242.45 |
| 5 + | THB1,223.34 |
- RS Stock No.:
- 881-3813P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 6609066-3
- ผู้ผลิต / Manufacturer:
- TE Connectivity
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
Corcom AYO Series Compact Low Current 3-phase WYE RFI Filters
Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.
AYO Series 3-phase filters offer a space saving design with easy to connect terminals and low leakage current. Designed for 3-phase, four wire, WYE applications, these RFI filters are suitable for use in gaming machines, vending machines, food service equipment and small machine tools.
AYO Series 3-phase filters offer a space saving design with easy to connect terminals and low leakage current. Designed for 3-phase, four wire, WYE applications, these RFI filters are suitable for use in gaming machines, vending machines, food service equipment and small machine tools.
Good for attenuation beginning at 100kHz
Filters each of the three lines plus neutral
Single stage
Screw mounting (flange or panel)
Spade terminals
Filters each of the three lines plus neutral
Single stage
Screw mounting (flange or panel)
Spade terminals
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Spade |
| Number of Phases | 3 |
| Number of Stages | Single Stage |
| Series | Corcom AYO |
| Operating Frequency | 50 Hz, 60Hz |
| Length | 85.6mm |
| Depth | 38.7mm |
| Capacitance | 15 nF, 100nF |
| Height | 52.5mm |
| Inductance | 200 μH |
| Dimensions | 85.6 x 38.7 x 52.5mm |
| Minimum Operating Temperature | -10°C |
| Leakage Current | 3 mA |
| Maximum Operating Temperature | +40°C |
| Standards Met | CSA 22.2 No. 0/0.4/8, UL 1283, VDE 0565-3 |
