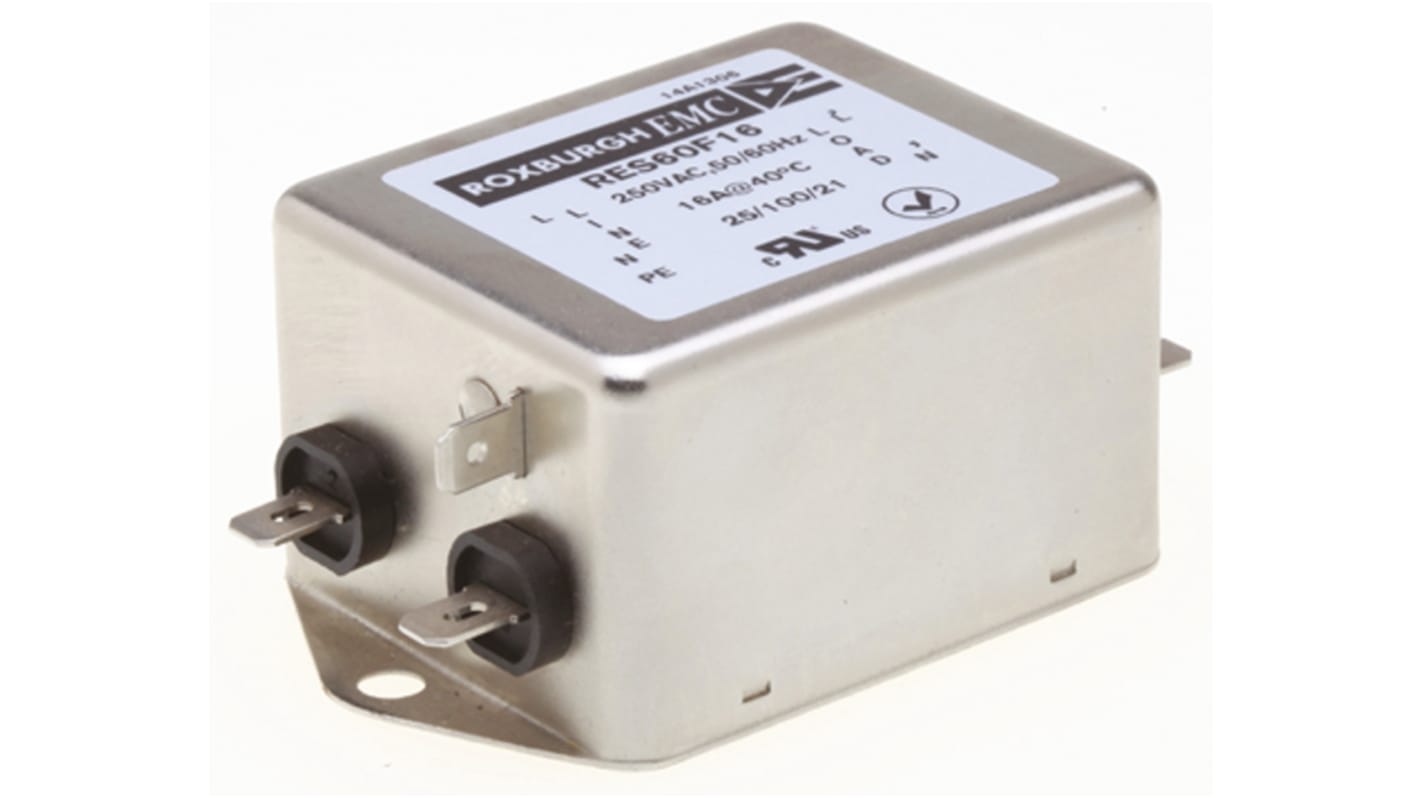

Roxburgh EMC, RES60 16A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On, Single Phase
- RS Stock No.:
- 806-8199
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RES60F16
- ผู้ผลิต / Manufacturer:
- Roxburgh EMC
18 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB2,259.49
(exc. VAT)
THB2,417.65
(inc. VAT)
| Units | Per unit |
| 1 - 4 | THB2,259.49 |
| 5 - 9 | THB2,169.12 |
| 10 + | THB2,078.73 |
- RS Stock No.:
- 806-8199
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RES60F16
- ผู้ผลิต / Manufacturer:
- Roxburgh EMC
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
รายละเอียดสินค้า / Product Details
Roxburgh EMC RES60 Series
Roxburgh EMC RES60 series of multi-stage, single phase EMC filters featuring high differential and high common mode attenuation. The RES60 series is designed for use in general purpose applications where increased RFI noise is present, including: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation
Multi-stage
High differential and high common mode attenuation
For use from DC to 400Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting
High differential and high common mode attenuation
For use from DC to 400Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting
Note
Low leakage version suitable for medical applications
Approvals
UL E191581
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Maximum Current Rating | 16A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | RES60 |
| Number of Stages | Multi Stage |
| Operating Frequency | DC → 400Hz |
| Length | 85mm |
| Depth | 52mm |
| Height | 38mm |
| Capacitance | 9.4 nF, 660nF |
| Dimensions | 85 x 52 x 38mm |
| Inductance | 1.3 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.74 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
