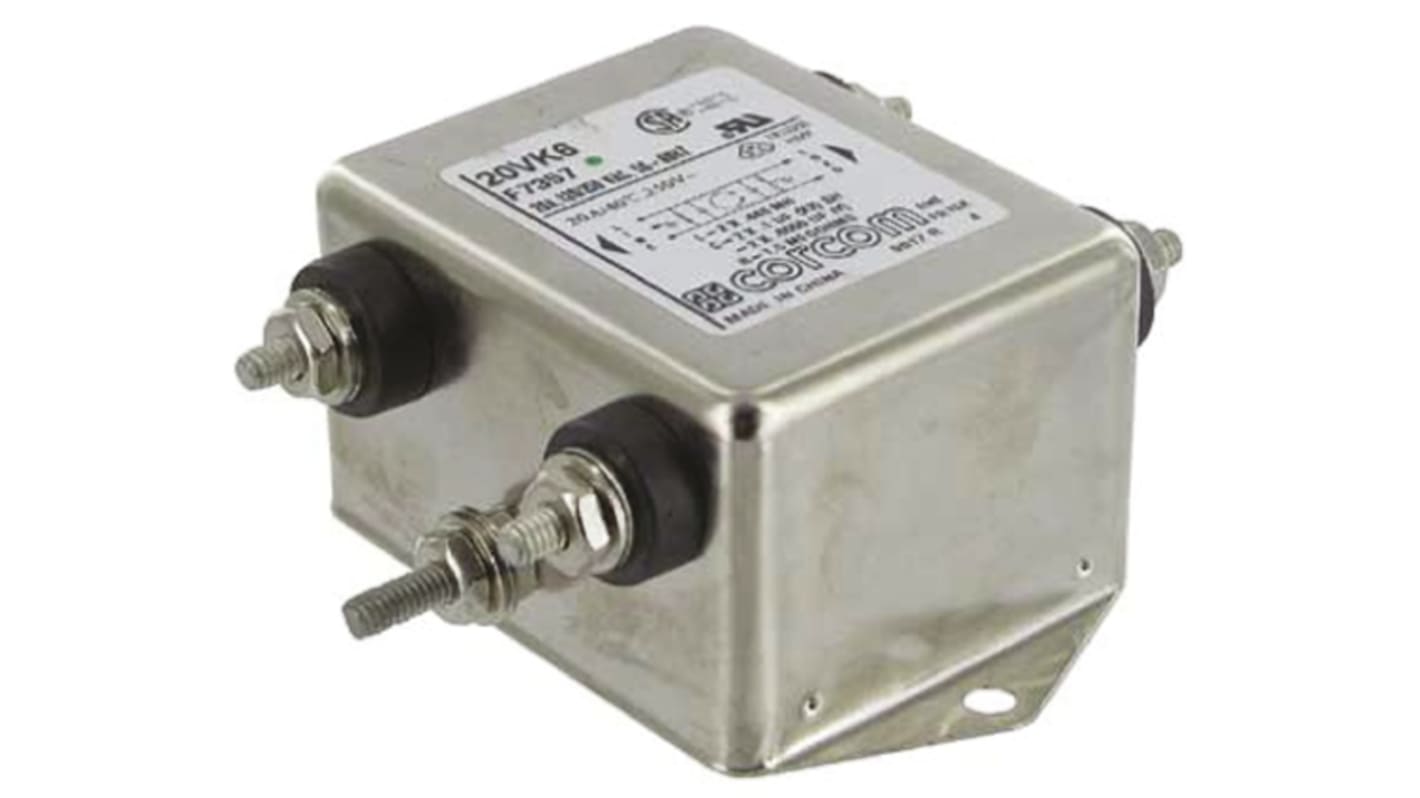

TE Connectivity, Corcom K 20A 250 V ac 50/60Hz, Flange Mount RFI Filter, Threaded Bolt, Single Phase

RS Stock No.:: 782-0977
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 20VK6
ผู้ผลิต / Manufacturer:: TE Connectivity

TE Connectivity, Corcom K 20A 250 V ac 50/60Hz, Flange Mount RFI Filter, Threaded Bolt, Single Phase

4 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)

เพิ่ม / Added

ราคา / Price Each

THB939.08

(exc. VAT)

THB1,004.82

(inc. VAT)

Units	Per unit
1 - 9	THB939.08
10 - 24	THB920.30
25 - 49	THB901.90
50 - 149	THB883.86
150 +	THB866.18

RS Stock No.:: 782-0977
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 20VK6
ผู้ผลิต / Manufacturer:: TE Connectivity

ข้อมูลทางเทคนิค / Technical Data Sheets

RFI Power Line Filters K Series

Legislation and Compliance

รายละเอียดสินค้า / Product Details

Corcom K Series General Purpose RFI Power Line Filters

Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE

Suitable for high impedance loads
Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present
EK models meet the very low leakage current requirements for VDE portable equipment and non-patient care medical equipment
Available with ground line inductor (choke)

Approvals

UL, CSA and VDE

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Maximum Current Rating	20A
Maximum Voltage Rating	250 V ac
Mounting Type	Flange Mount
Termination Style	Threaded Bolt
Number of Phases	1
Series	Corcom K
Number of Stages	Single Stage
Operating Frequency	50/60Hz
Length	3.35in
Depth	1.53in
Dimensions	3.35 x 2.06 x 1.53in
