- RS Stock No.:
- 493-2995
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 55002015
- ผู้ผลิต / Manufacturer:
- Schurter
- RS Stock No.:
- 493-2995
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 55002015
- ผู้ผลิต / Manufacturer:
- Schurter
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

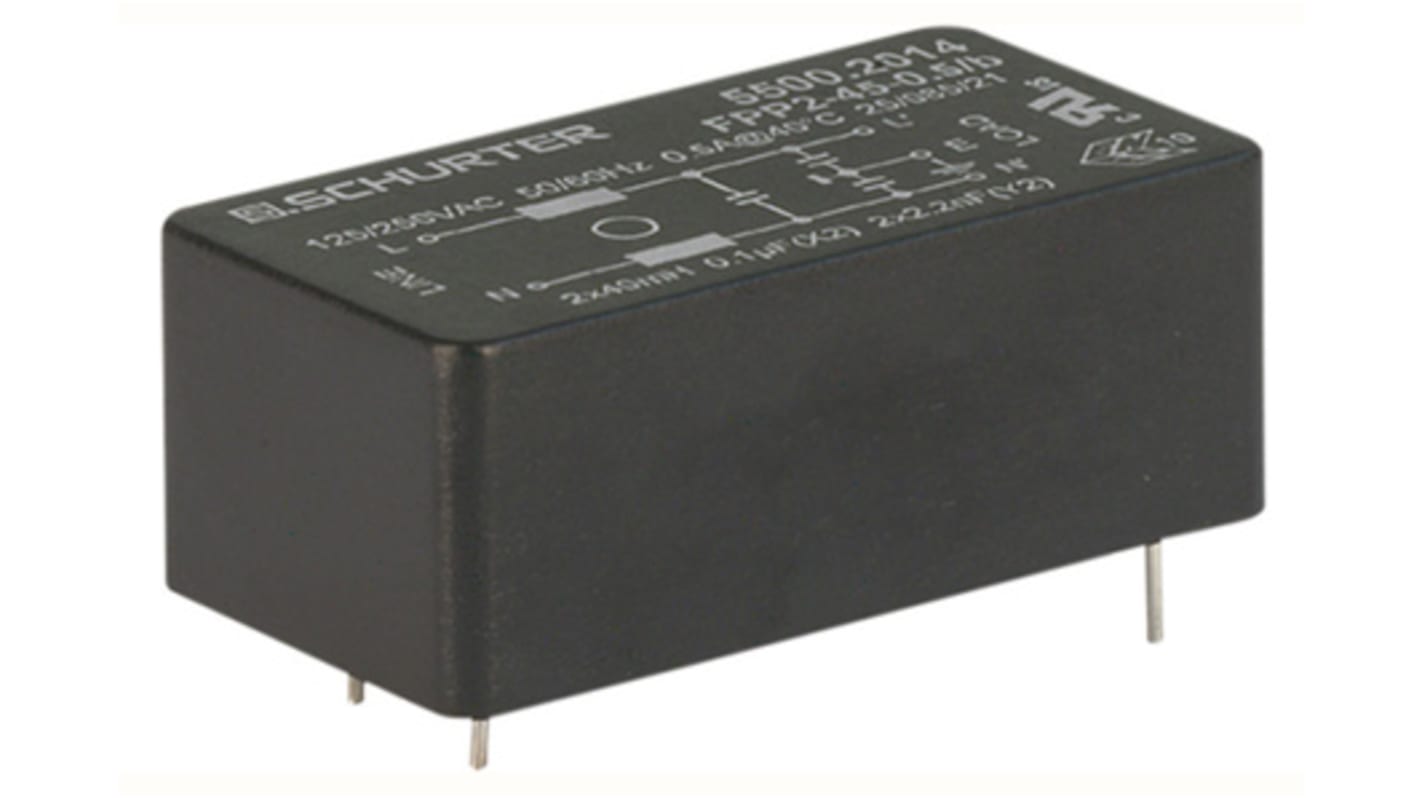

PCB mount mains filters, rectangular housing - FPP2 series
High-performance filters designed for PCB mounting, as close to the circuits concerned as possible.
These filters allow protection of equipment against transient interference from the mains, and also limit unwanted interference voltage from the equipment itself.
These filters allow protection of equipment against transient interference from the mains, and also limit unwanted interference voltage from the equipment itself.
Approvals
UL 1283, EN 133200, IEC 60950
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Maximum Current Rating | 1A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | Through Hole |
Termination Style | Pin |
Number of Phases | 1 |
Series | FPP2 |
Number of Stages | Single Stage |
Operating Frequency | 60Hz |
Length | 24mm |
Depth | 45mm |
Height | 17.5mm |
Capacitance | 2.2 nF, 100nF |
Dimensions | 24 x 45 x 17.5mm |
Inductance | 10 x 2 mH |
Leakage Current | > 0.25mA mA |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +85°C |
Standards Met | UL 1283 |
