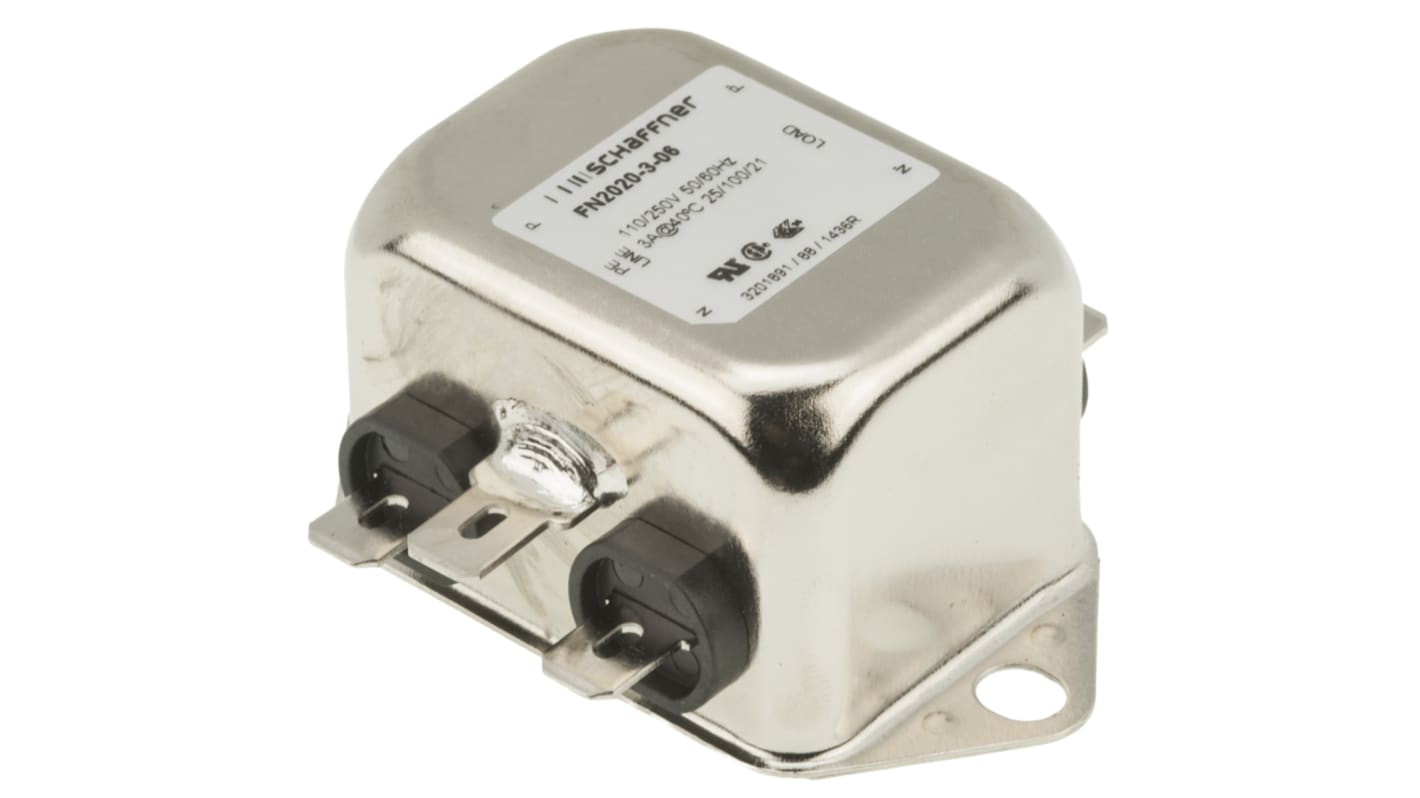

Schaffner, FN2020 3A 250 V ac/dc 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase
- RS Stock No.:
- 219-2836
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FN2020-3-06
- ผู้ผลิต / Manufacturer:
- Schaffner
238 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB610.89
(exc. VAT)
THB653.65
(inc. VAT)
| Units | Per unit |
| 1 - 14 | THB610.89 |
| 15 - 29 | THB595.61 |
| 30 + | THB586.43 |
- RS Stock No.:
- 219-2836
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FN2020-3-06
- ผู้ผลิต / Manufacturer:
- Schaffner
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
FN2020 Series
FN2020 filters are designed for easy and fast chassis mounting and are also avaialble as B versions, the Medical option and A version the Safety option. All FN2020 filters provide a general purpose attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.
Higher phase to neutral capacitance for better differential mode performance
Connection by 0.25in Faston terminals
Connection by 0.25in Faston terminals
Approvals
UL recognised component, CSA certified, VDE
Approvals
UL recognised component, CSA certified, VDE
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | FN2020 |
| Number of Stages | Single Stage |
| Operating Frequency | 400Hz |
| Length | 64mm |
| Depth | 35mm |
| Capacitance | 4.7 nF, 150nF |
| Height | 29.3mm |
| Dimensions | 64 x 35 x 29.3mm |
| Inductance | 2.5 mH |
| Leakage Current | 0.74 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
| Power Loss | 1.2W |
