- RS Stock No.:
- 170-5232
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FN2010-10-07
- ผู้ผลิต / Manufacturer:
- Schaffner
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 17/07/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Box of 60)
THB554.744
(exc. VAT)
THB593.576
(inc. VAT)
Units | Per unit | Per Box* |
60 - 60 | THB554.744 | THB33,284.64 |
120 - 180 | THB542.539 | THB32,552.34 |
240 + | THB530.89 | THB31,853.40 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 170-5232
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FN2010-10-07
- ผู้ผลิต / Manufacturer:
- Schaffner
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
รายละเอียดสินค้า / Product Details

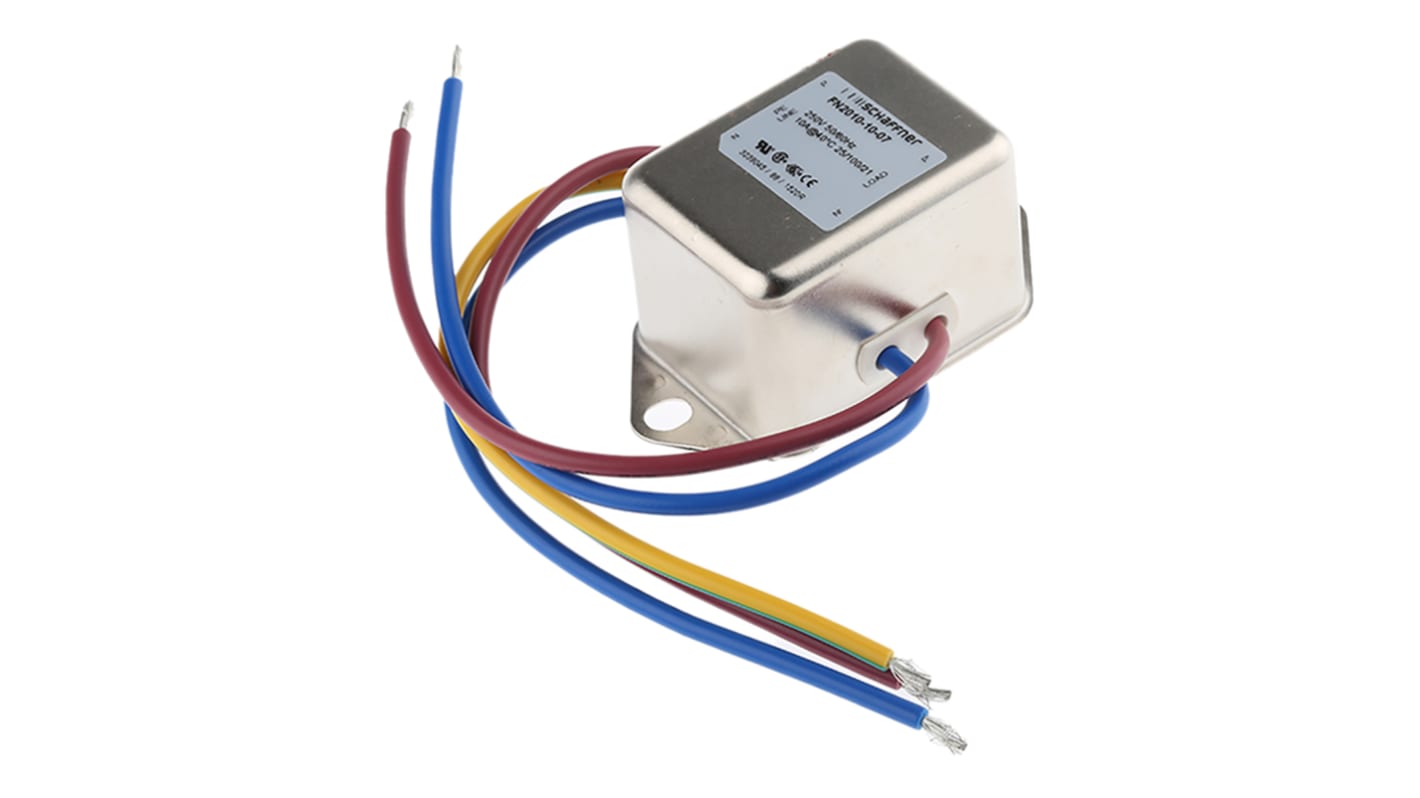

FN2010 Series
Low cost chassis mount filters in an aluminium case
General purpose filtering applications
Connection by Faston type terminals
General purpose filtering applications
Connection by Faston type terminals
Approvals
UL recognised component, CSA certified, VDE
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Maximum Current Rating | 10A |
Maximum Voltage Rating | 250 V ac/dc |
Mounting Type | Chassis Mount |
Termination Style | Wire Lead |
Number of Phases | 1 |
Number of Stages | Single Stage |
Series | FN2010 |
Operating Frequency | 0 → 400Hz |
Length | 64mm |
Depth | 35mm |
Capacitance | 4.7 nF, 100nF |
Height | 29.3mm |
Inductance | 800 μH |
Dimensions | 64 x 35 x 29.3mm |
Minimum Operating Temperature | -25°C |
Leakage Current | 0.74 mA |
Maximum Operating Temperature | +100°C |
Resistance | 1MΩ |
