EPCOS, B84131 35A 250/440 V ac 50 → 60Hz, Flange Mount EMC Filter, Screw 3 Phase
- RS Stock No.:
- 167-8390
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B84131M0001G135
- ผู้ผลิต / Manufacturer:
- EPCOS
66 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Box of 3)
THB10,681.297
(exc. VAT)
THB11,428.988
(inc. VAT)
| Units | Per unit | Per Box* |
| 3 - 3 | THB10,681.297 | THB32,043.891 |
| 6 - 9 | THB10,446.307 | THB31,338.921 |
| 12 + | THB10,222.00 | THB30,666.00 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 167-8390
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B84131M0001G135
- ผู้ผลิต / Manufacturer:
- EPCOS
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

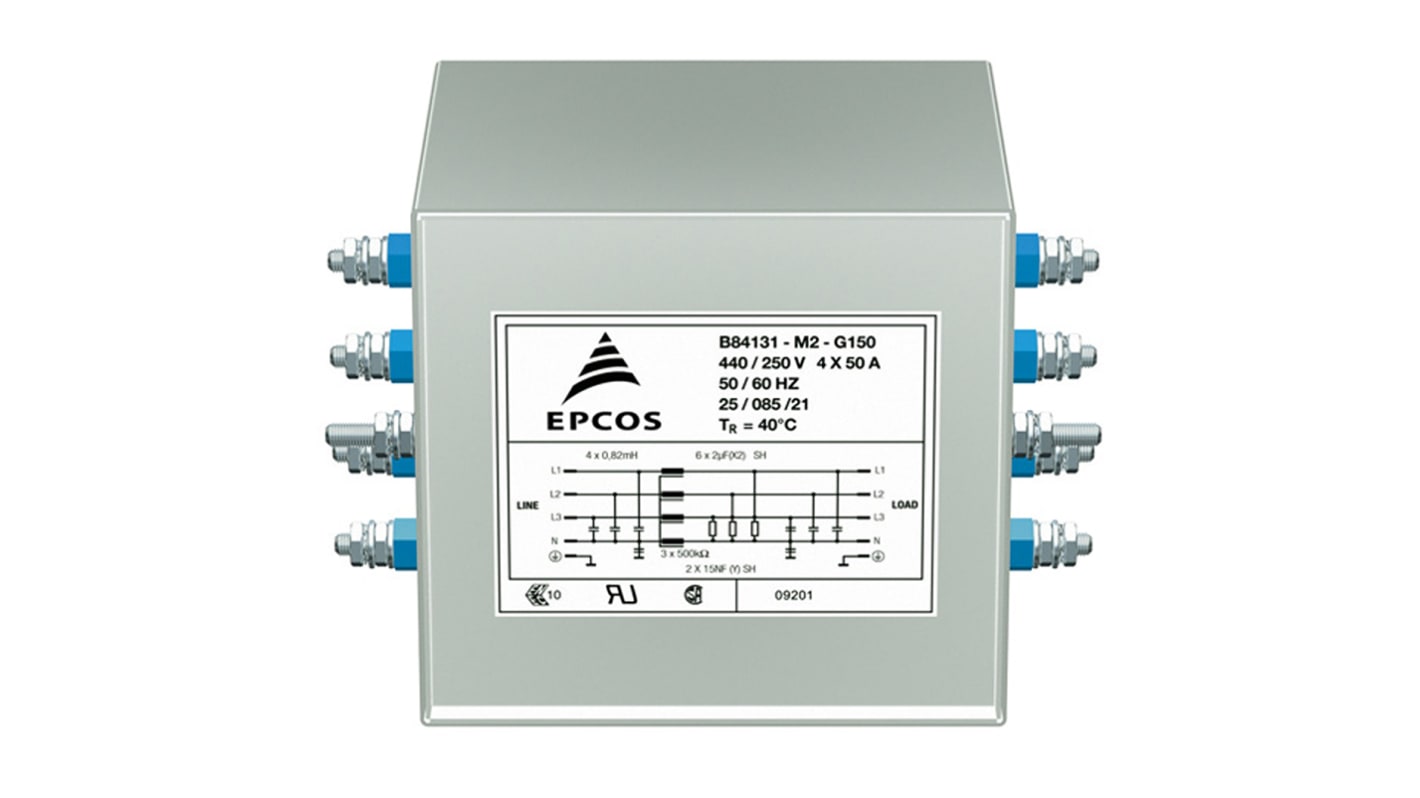

B84131-M Series
B84131 line filters from EPCOS are constructed from 4-line filters and a metal housing. The metal casing allows for easy installation and these line filters provide high insertion loss.
Features & Benefits
Tab terminal and threaded stud terminals are available
Simple to install
Compact design
Cost-saving design
Simple to install
Compact design
Cost-saving design
Product Application Information
These line filters are recommended for use in 3 phase systems with neutral conductors. Typical applications would include power supplies for copiers, industrial installations, medical equipment, telecom systems and data systems.
Brand Information
EPCOS is part of the TDK group and has more than 20 design and production locations. EPCOS develops and manufactures modules, systems and electronic components. EPCOS endeavours to produce electronic components that process electrical signals, protect electronic circuits against faults and ensure a reliable supply of power.
Approvals
IEC 60939, UL 1283, CSA C22.2 NO.8
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Maximum Current Rating | 35A |
| Maximum Voltage Rating | 250/440 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Number of Phases | 3 |
| Number of Stages | Single Stage |
| Series | B84131 |
| Operating Frequency | 50 → 60Hz |
| Length | 104mm |
| Depth | 195mm |
| Height | 80mm |
| Dimensions | 104 x 195 x 80mm |
| Leakage Current | 0.064 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
