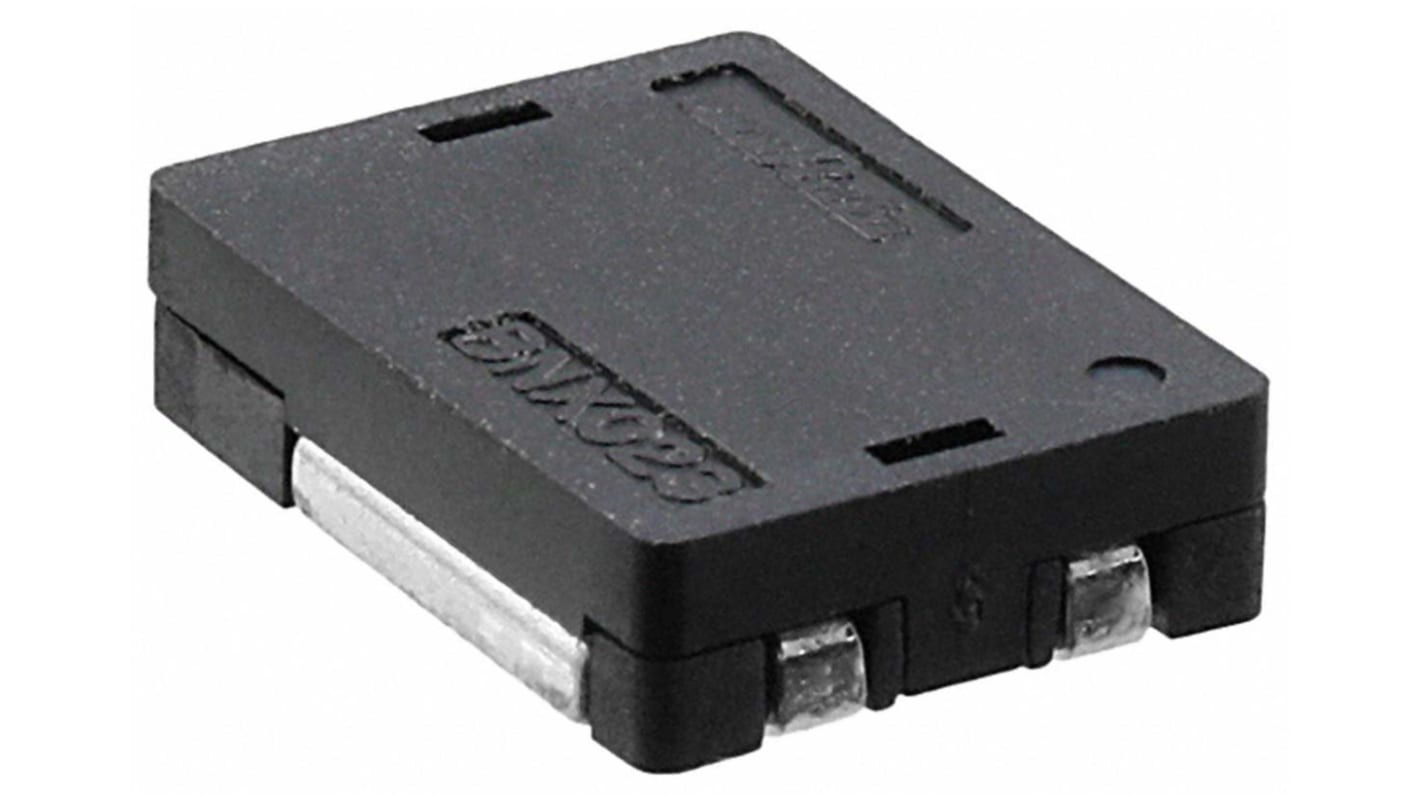

Murata, BNX02 15A 100 V dc 1 MHz → 1GHz, SMD EMI Filter, Flat Contact
- RS Stock No.:
- 167-4995
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- BNX023-01L
- ผู้ผลิต / Manufacturer:
- Murata
2800 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (On a Reel of 400)
THB107.752
(exc. VAT)
THB115.295
(inc. VAT)
| Units | Per unit | Per Reel* |
| 400 + | THB107.752 | THB43,100.80 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 167-4995
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- BNX023-01L
- ผู้ผลิต / Manufacturer:
- Murata
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
รายละเอียดสินค้า / Product Details
BNX02 Series
High performance SMD EMI suppression filter, providing excellent noise suppression on DC power lines.
Large rated current (10A - 15A) and Low DC Resistance. (0.43m ohm - Typ.)
High insertion loss characteristic over a wide frequency range of 1MHz to 1GHz
Mounting area and volume is reduced
Effective for impulse noise such as electro-static discharge or spike noise
High insertion loss characteristic over a wide frequency range of 1MHz to 1GHz
Mounting area and volume is reduced
Effective for impulse noise such as electro-static discharge or spike noise
Applications include:
Displays (PDP/LCD-TV)
Digital AV equipment
Amusement equipment
PC peripheral equipment
Industry equipment, measurement equipment, power supplies
Digital AV equipment
Amusement equipment
PC peripheral equipment
Industry equipment, measurement equipment, power supplies
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Maximum Current Rating | 15A |
| Maximum Voltage Rating | 100 V dc |
| Mounting Type | Surface Mount |
| Termination Style | Flat Contact |
| Series | BNX02 |
| Operating Frequency | 1 MHz → 1GHz |
| Length | 12.1mm |
| Depth | 9.1mm |
| Height | 3.1mm |
| Capacitance | 1µF |
| Dimensions | 12.1 x 9.1 x 3.1mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
