- RS Stock No.:
- 125-9947
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MS4-LR-1/8-D6-AS
- ผู้ผลิต / Manufacturer:
- Festo
3 สามารถจัดส่งได้จากคลังสินค้าในประเทศไทยภายใน (ภายใน) 3 วันทําการ
25 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
26 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB1,819.91
(exc. VAT)
THB1,947.30
(inc. VAT)
Units | Per unit |
1 + | THB1,819.91 |
- RS Stock No.:
- 125-9947
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MS4-LR-1/8-D6-AS
- ผู้ผลิต / Manufacturer:
- Festo
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- HU
รายละเอียดสินค้า / Product Details

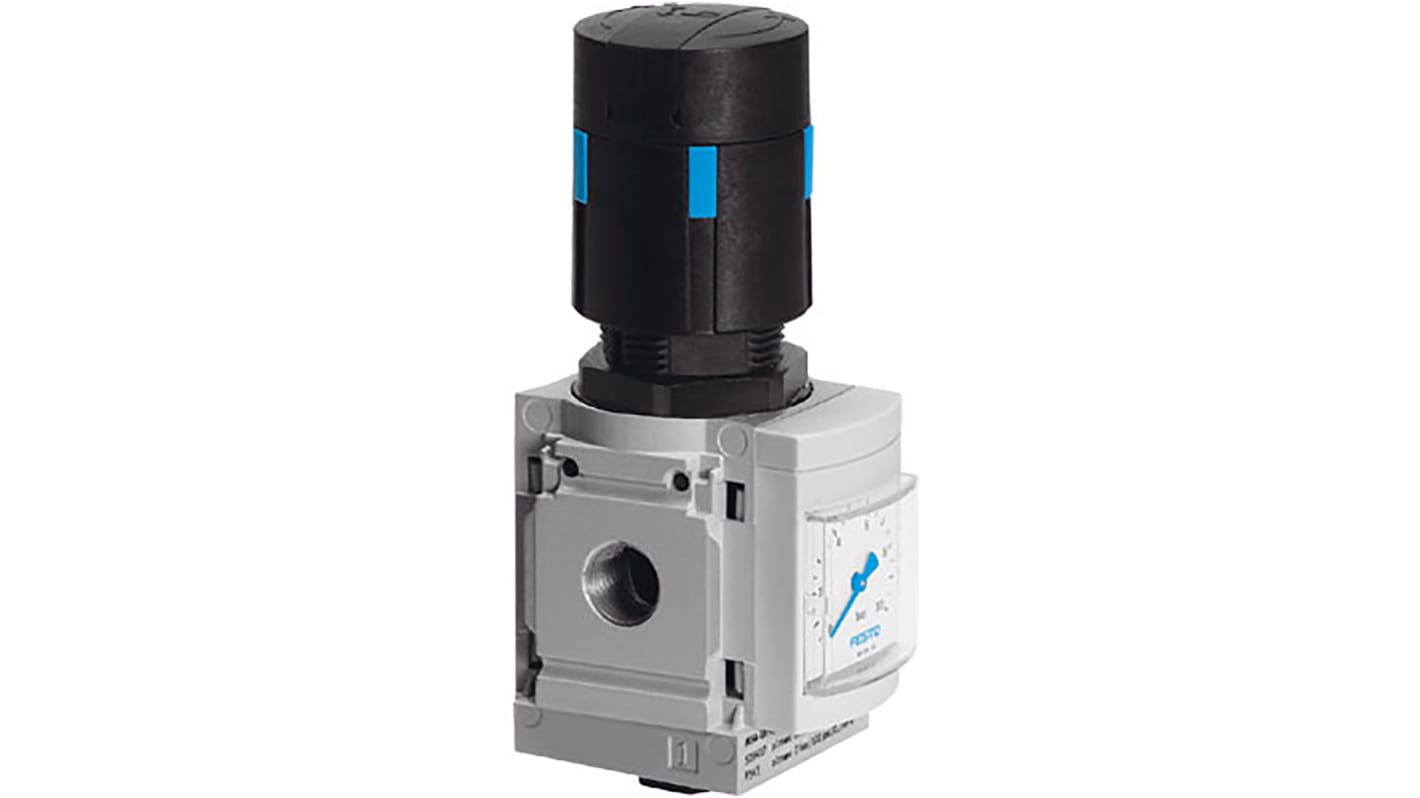

Festo Pneumatic Regulator, 1150L/min Flow Rate, 0.3 to 7 Bar Outlet Pressure - MS4-LR-1/8-D6-AS
Accurately control air pressure in your pneumatic system with this regulator from Festo. Also known as a pressure-reducing valve, it helps to maintain a stable output for your air-controlled devices to prevent leakage and damage to your components. This device can handle up to 14 bar of operating pressure, so it's a good choice for heavy-duty industrial applications. You can use it safely in demanding environments thanks to an operating temperature range between -10°C and +60°C.
• Die-cast aluminium housing and base for durability and resistance to corrosion
• NBR seals prevent air from leaking for optimal performance
• Light weight of 225g adds minimal strain on your equipment
• Integrated pressure gauge for easy monitoring and troubleshooting
• Can be assembled in any position for flexibility
• NBR seals prevent air from leaking for optimal performance
• Light weight of 225g adds minimal strain on your equipment
• Integrated pressure gauge for easy monitoring and troubleshooting
• Can be assembled in any position for flexibility
Applications
• Water treatment facilities
• Oil and gas plants
• Chemical laboratories
• Oil and gas plants
• Chemical laboratories
How do I use this regulator?
The regulator has a rotary knob that you turn to set the appropriate pressure for your setup. This knob is lockable to allow you to carry out maintenance safely.
Regulators and Filter Regulators
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Port Connection | G 1/8 |
Maximum Outlet Pressure | 14bar |
Minimum Outlet Pressure | 0.8bar |
Maximum Input Pressure | 7bar |
Manufacturer Series | MS-LR |
Port Connection Thread Size | 1/8in |
Maximum Flow Rate | 7500L/min |
Typical Flow Rate | 1000 to 7500L/min |
Port Connection Thread Standard | G |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Overall Height | 117.5mm |
Overall Length | 40mm |
Model Number p | 529423 |
Overall Dimensions | 40 x 57 x 117.5mm |
Overall Width | 57mm |
