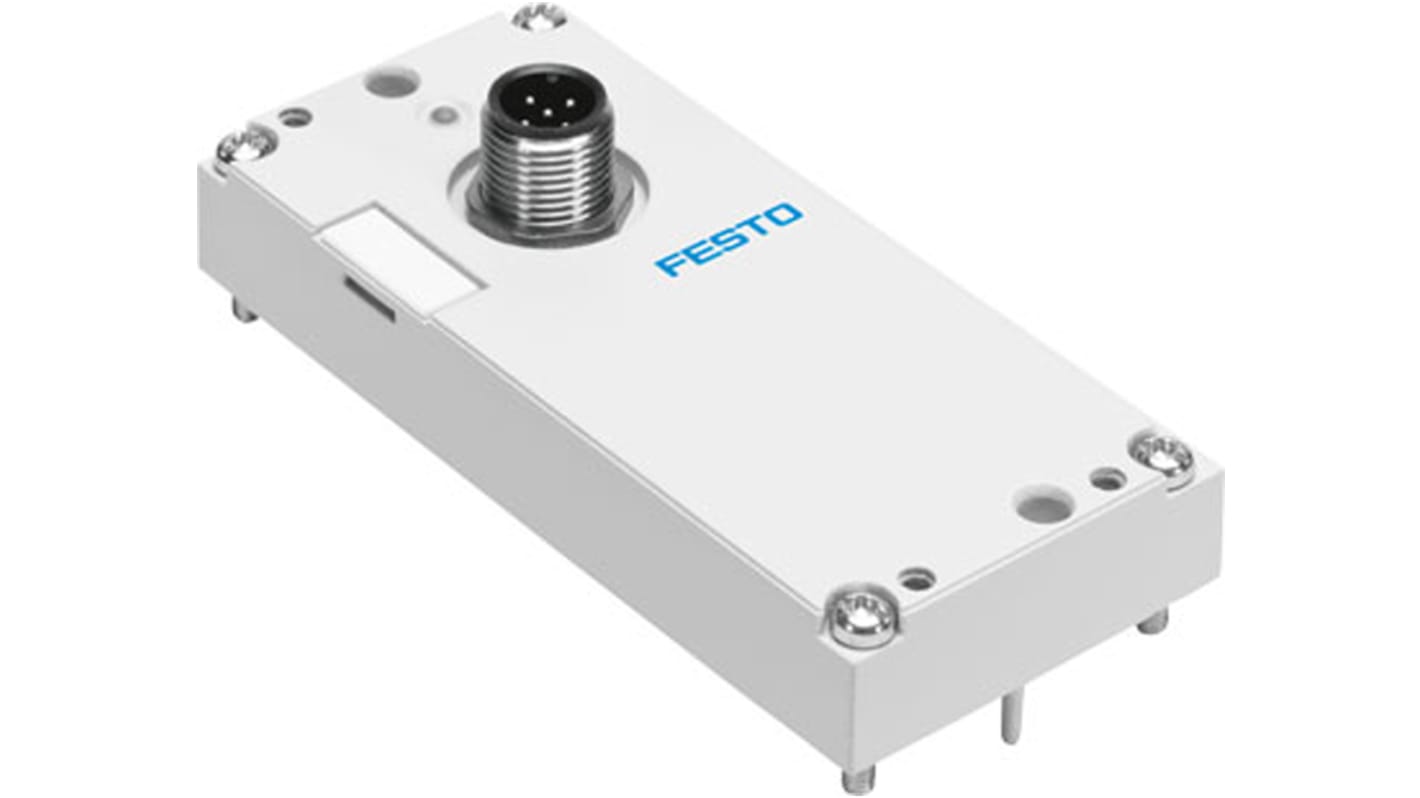

Festo Serial Interface

  • RS Stock No. 136-7000
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. VAEM-L1-S-24-PT
  • ผู้ผลิต / Manufacturer Festo
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
รายละเอียดสินค้า / Product Details

VAEM Manifold Electrical Interfaces

Multi-pin Plug Connection

• 25 pin 136-6947, 44 pin 136-6948
• Standardised interface for direct connection to the fieldbus by mounting the bus node CTEU or to an IO-Link master via a cable
• Each pin on the multi-pin plug can actuate exactly one solenoid coil
• With 24 valve positions, 48 valve functions can be addressed
• The valves can be switched by means of positive or negative logic

I-Port interface/IO-Link

• 8 valve 136-6931, 16 valve 136-6999, 24 valve 136-7000
• I-Port interface for bus nodes (CTEU)
• IO-Link mode for direct connection to a higher-order IO-Link master
• CANopen, DeviceNet, PROFIBUS, CC-LINK, EtherCAT protocols are supported in connection with the associated CTEU bus node
• The electrical supply/transmission of communication takes place via an M12 plug connector

Manifold Sub-bases and End-plates

คุณสมบัติ / Specifications
คุณสมบัติ Value
Manufacturer Series VAEM
Minimum Operating Temperature -5°C
Maximum Operating Temperature +50°C
Connection Type 5-Pin M12 Connector
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 12/06/2020, จัดส่งภายใน (delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 5,684.02
(exc. VAT)
THB 6,081.90
(inc. VAT)
Units
Per unit
1 +
THB5,684.02
