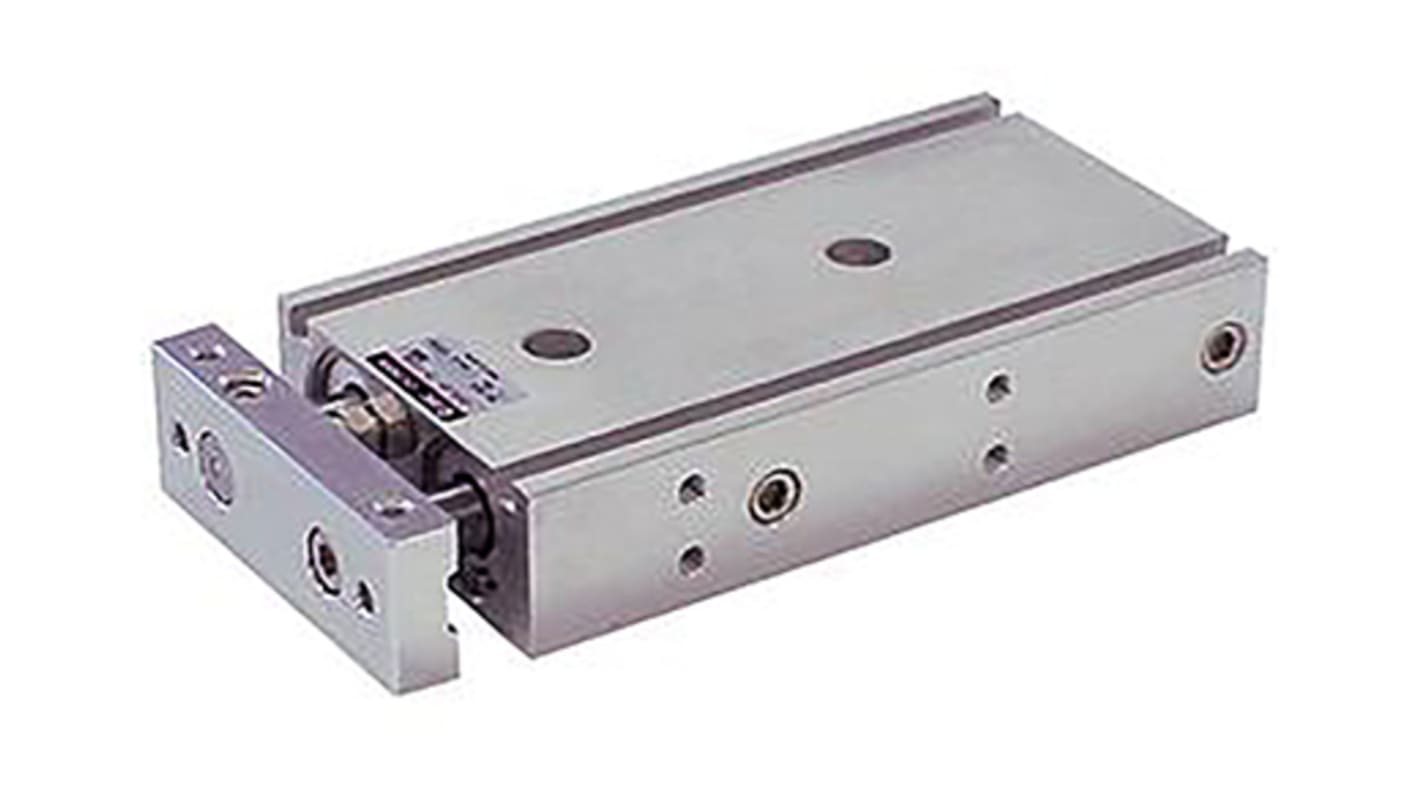

SMC Pneumatic Guided Cylinder - 15mm Bore, 15mm Stroke, CXS Series, Double Acting
- RS Stock No.:
- 838-9027
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- CXSM15-15
- ผู้ผลิต / Manufacturer:
- SMC
3 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB11,671.79
(exc. VAT)
THB12,488.82
(inc. VAT)
| Units | Per unit |
| 1 + | THB11,671.79 |
- RS Stock No.:
- 838-9027
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- CXSM15-15
- ผู้ผลิต / Manufacturer:
- SMC
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
รายละเอียดสินค้า / Product Details
SMC CX2N / CXSJ / CXSL / CXSM / CSXL Dual-Rod Cylinders
The CXS range of Dual-Rod Cylinders come with slide bearings (CXSM type and CXSJM) or ball bearing slides (CXSL and CXSJL type). This range of cylinders is suitable for ’pick-and-place’ applications, operating with non-lubricated, filtered and compressed air. The Dual-Road Cylinders incorporate a recess for auto switches and may be used in operating environments from 5 to 60°C.
High non-rotational accuracy
Dual port locations
Standard magnetic sensing
Buffer cushioning
Operating temperatures 5 to 60°C
Dual port locations
Standard magnetic sensing
Buffer cushioning
Operating temperatures 5 to 60°C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Stroke | 15mm |
| Bore | 15mm |
| Manufacturer Series | CXS |
| Action | Double |
| Maximum Operating Pressure | 0.7 MPa |
| Cushioning Type | Rubber |
| Dimensions | 109 x 20 x 58mm |
| Weight | 265g |
| Maximum Operating Temperature | +60°C |
| Length | 109mm |
| Absolute Maximum Pressure | 1.05MPa |
| Height | 58mm |
| Minimum Operating Temperature | -10°C |
| Width | 20mm |
