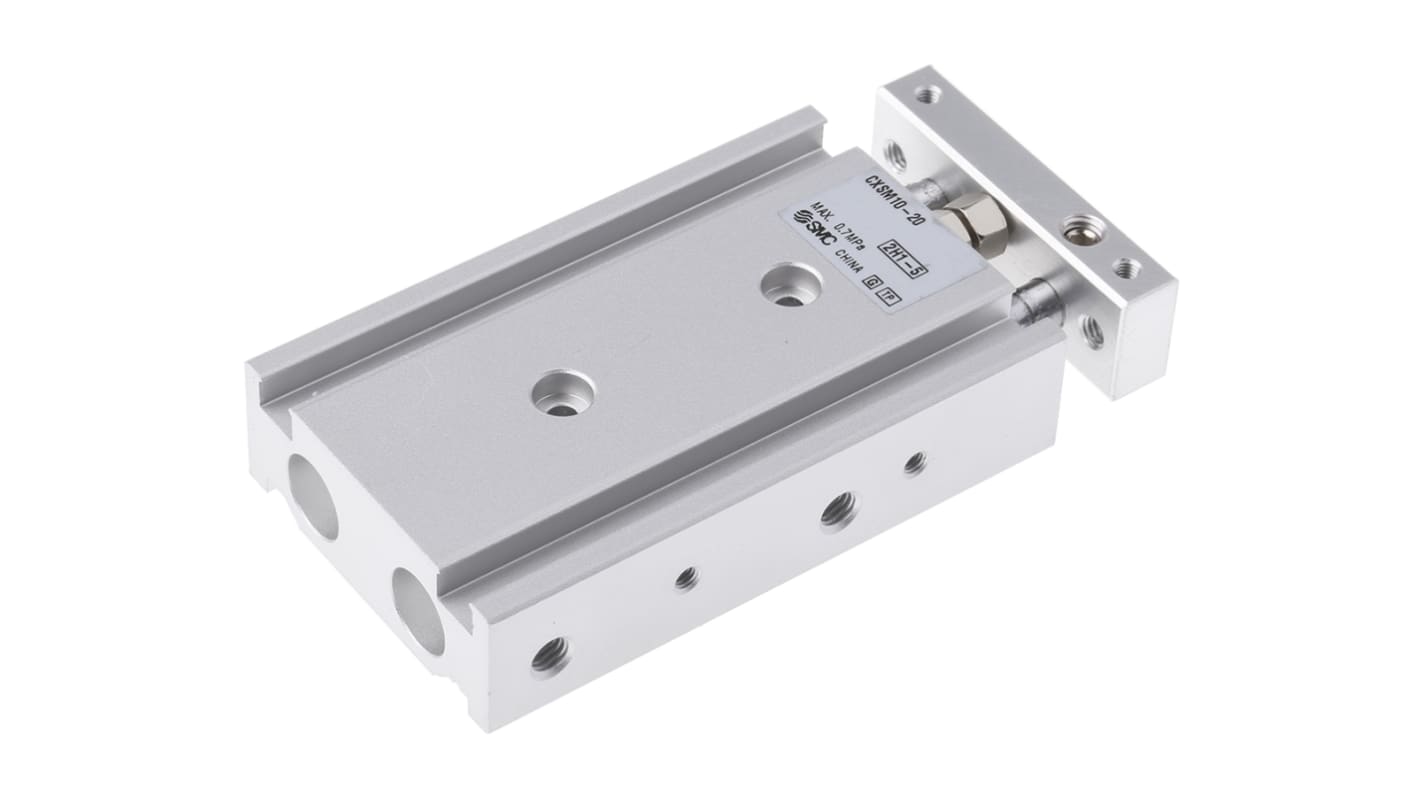

SMC Pneumatic Guided Cylinder 10mm Bore, 20mm Stroke, CXSM Series,

  • RS Stock No. 350-0597
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. CXSM10-20
  • ผู้ผลิต / Manufacturer SMC
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
รายละเอียดสินค้า / Product Details

SMC CXS Dual-Rod Cylinder Range

SMC Dual-Rod Cylinders with slide bearings (CXSM type) or ball bearing slides (CXSL type), suitable for 'pick-and-place' applications, operating with non-lubricated, filtered, compressed air. Dual-Rod Cylinders feature high non-rotational accuracy, dual port locations, and standard magnetic sensing and buffer cushioning. Integral stroke adjustment may be set to standard stroke less 5mm. The cylinders incorporate a recess for auto switches, and may be used in operating environments from 5 to 60°C.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Manufacturer Series CXSM
Bore 10mm
Stroke 20mm
Maximum Operating Pressure 0.7 MPa
Cushioning Type Rubber
Dimensions 92 x 17 x 46mm
Weight 170g
Maximum Operating Temperature +60°C
Length 92mm
Minimum Operating Temperature -10°C
Height 46mm
Width 17mm
4 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 7,186.25
(exc. VAT)
THB 7,689.29
(inc. VAT)
Units
Per unit
1 +
THB7,186.25
