- RS Stock No.:
- 136-6526
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DFM-50-25-P-A-GF
- ผู้ผลิต / Manufacturer:
- Festo
2 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB12,298.48
(exc. VAT)
THB13,159.37
(inc. VAT)
Units | Per unit |
1 + | THB12,298.48 |
- RS Stock No.:
- 136-6526
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DFM-50-25-P-A-GF
- ผู้ผลิต / Manufacturer:
- Festo
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details

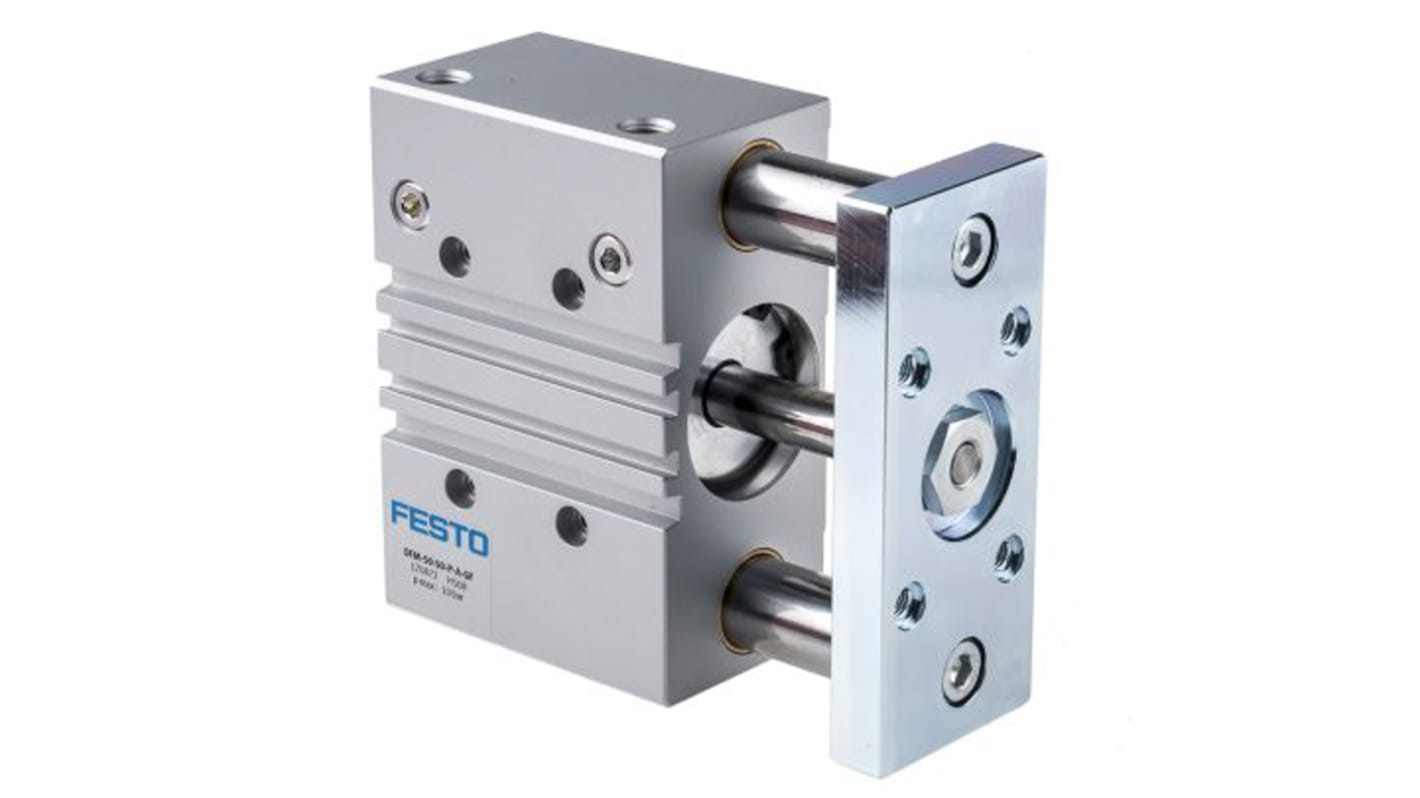

Festo Pneumatic Guided Cylinder, Elastamer Cushioning, 10 Bar Maximum Operating Pressure - DFM-50-25-P-A-GF
Want pinpoint precision from your equipment? Reach for this pneumatic guided cylinder from Festo. It's resistant to twisting and lateral forces, to keep your workpieces on the straight and narrow. You can use it for lifting, clamping and stopping, so it's just the job for handling common pneumatic tasks. Because it's double-acting, it can move loads in both an outwards and inwards direction. The drive and guide units are conveniently contained in a single housing, making this a space-saving choice.
Compact dimensions of 148 (W) x 118 (L) x 64mm (H), so it fits neatly into busy setups
Bore of 50mm and stroke of 25mm, suitable for heavy loads
Four plain side bearings provide high rigidity
Air supply ports on top and sides allow flexible positioning
Bore of 50mm and stroke of 25mm, suitable for heavy loads
Four plain side bearings provide high rigidity
Air supply ports on top and sides allow flexible positioning
Applications
Industrial automation
Production lines
Mechanical engineering
Production lines
Mechanical engineering
Does this pneumatic guided cylinder generate a lot of noise?
No. It has flexible cushioning plates that soften impact to reduce noise and keep your workplace safe.
Is this product suitable for use in extreme conditions?
As it has a wide operating temperature range between -20°C and +80°C, it's well-suited to harsh environments.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Stroke | 25mm |
Bore | 50mm |
Manufacturer Series | DFM |
Action | Double |
Bearing Type | Ball Bearing |
Pneumatic Connection | G 1/4 |
Maximum Operating Pressure | 10 bar |
Cushioning Type | Elastomer |
Model Number p | 170871 |
Weight | 3.4kg |
Maximum Operating Temperature | +80°C |
Length | 118mm |
Width | 148mm |
Minimum Operating Temperature | -20°C |
Height | 64mm |
