- RS Stock No.:
- 121-4351
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- GRLA-3/8-QS-8-D
- ผู้ผลิต / Manufacturer:
- Festo
5 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
17 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB937.42
(exc. VAT)
THB1,003.04
(inc. VAT)
Units | Per unit |
1 - 4 | THB937.42 |
5 - 9 | THB899.92 |
10 + | THB862.42 |
- RS Stock No.:
- 121-4351
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- GRLA-3/8-QS-8-D
- ผู้ผลิต / Manufacturer:
- Festo
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details

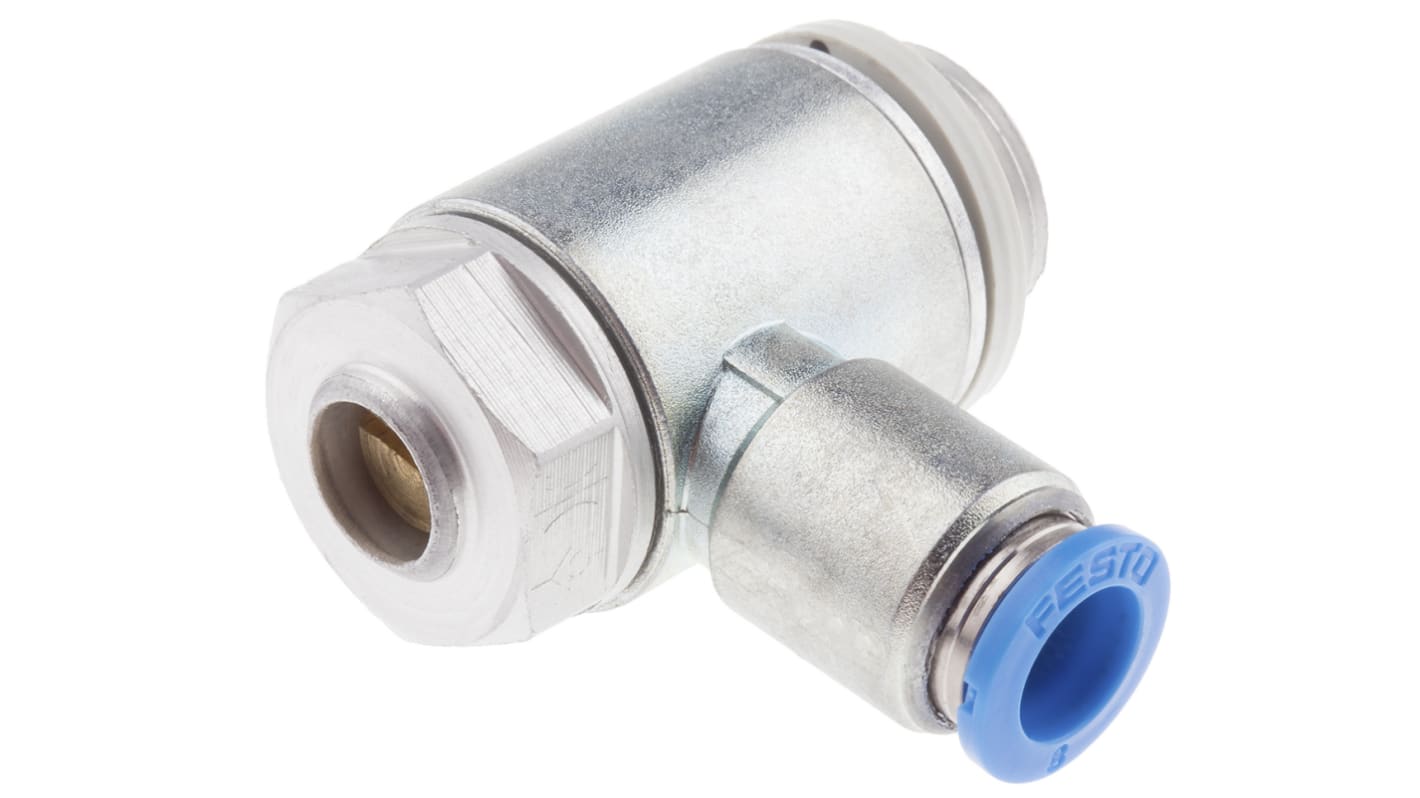

Festo Exhaust Valve, G3/8 Outlet Port, Aluminium Alloy Body - GRLA-3/8-QS-8-D
For consistent control over your pneumatic flow, turn to this one-way exhaust valve from Festo. It fits neatly into an existing system, thanks to an 8mm inlet port and a G3/8 male threaded outlet. Simply push your tube into the inlet port to achieve a speedy and secure connection. You can use the valve to restrict compressed air speed as needed to suit piston movements. All you need is a slotted-head screwdriver to adjust the valve manually and get the settings just right.
Features & Benefits
Sturdy aluminium alloy body and brass adjusting screw stand up to corrosion
Broad operating temperature range between -10°C and +60°C means it works reliably in harsh environments
Nominal tightening torque of 10Nm indicates it's strong enough to withstand demanding applications
Nominal flow rate of 820L/min makes it suitable for use with high-speed piston movements
Maximum operating pressure of 10 bar means it performs safely in industrial systems
Broad operating temperature range between -10°C and +60°C means it works reliably in harsh environments
Nominal tightening torque of 10Nm indicates it's strong enough to withstand demanding applications
Nominal flow rate of 820L/min makes it suitable for use with high-speed piston movements
Maximum operating pressure of 10 bar means it performs safely in industrial systems
Applications
Pharmaceutical production
Aerospace engineering
Food and beverage packaging
Aerospace engineering
Food and beverage packaging
How much does this exhaust valve weigh?
The unit weighs just 60g, which means it won't put much extra strain on your setup.
Flow Regulators & Restrictors - Festo
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Type | Flow Controller |
Inlet Port Type | Tube |
Tube Inlet Port | 8mm |
Manufacturer Series | GRLA |
Outlet Port Type | Threaded |
Threaded Outlet Port | G 3/8 |
Minimum Outlet Pressure | 0.2bar |
Maximum Outlet Pressure | 10bar |
Threaded Outlet Thread Standard | G |
Threaded Outlet Thread Gender | Male |
Threaded Inlet Thread Standard | G |
Body Material | Aluminium Alloy |
Threaded Outlet Thread Size | 3/8 in |
Model Number p | 193150 |
