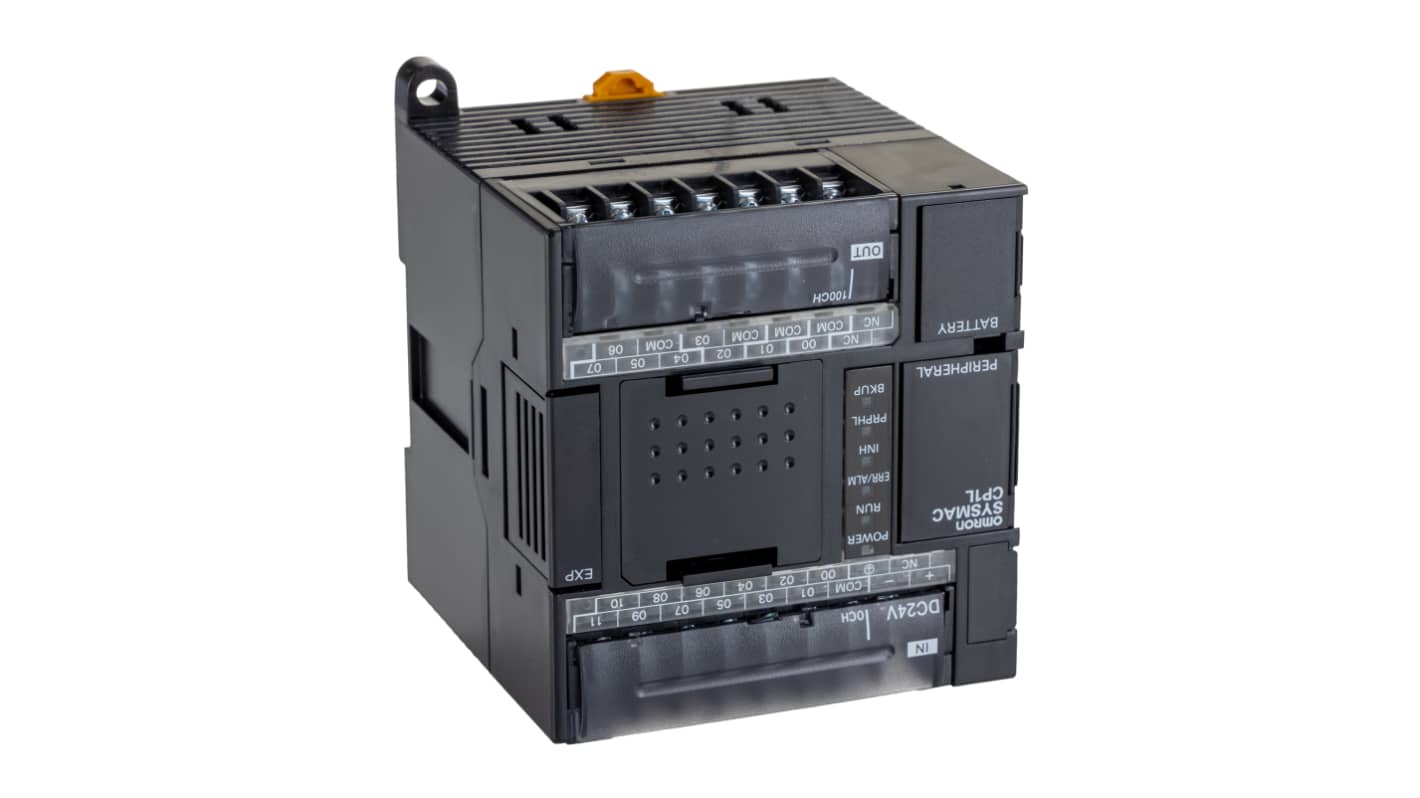

Omron CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Transistor Output, 12 (DC)-Input, DC Input
- RS Stock No.:
- 401-579
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- CP1L-L20DT1-D
- ผู้ผลิต / Manufacturer:
- Omron
14 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB20,080.93
(exc. VAT)
THB21,486.60
(inc. VAT)
| Units | Per unit |
| 1 - 4 | THB20,080.93 |
| 5 + | THB16,526.61 |
- RS Stock No.:
- 401-579
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- CP1L-L20DT1-D
- ผู้ผลิต / Manufacturer:
- Omron
Legislation and Compliance
รายละเอียดสินค้า / Product Details
CP1L CPU
Compatible with all other devices in the Omron PLC line-up
Uses identical software as other Omron controllers
4 high-speed encoder inputs and 2 high-speed pulse outputs
AC or DC supply
Instruction set compatible with CP1H-, CJ1- and CS1 series PLC's
CP1L-EM / CP1L-EL has a standard-feature Ethernet port
CP1L-M / CP1L-L has a standard-feature peripheral USB port
Optional RS232C and RS-422A/485 serial ports
Scaleable with a wide range of I/O units (maximum up to 160 I/O points)
Motion functionality
Uses identical software as other Omron controllers
4 high-speed encoder inputs and 2 high-speed pulse outputs
AC or DC supply
Instruction set compatible with CP1H-, CJ1- and CS1 series PLC's
CP1L-EM / CP1L-EL has a standard-feature Ethernet port
CP1L-M / CP1L-L has a standard-feature peripheral USB port
Optional RS232C and RS-422A/485 serial ports
Scaleable with a wide range of I/O units (maximum up to 160 I/O points)
Motion functionality
Note
Omron CPM1, CPM1A, CPM2A, CPM2C Expansion Modules may be used with the CP1L CPU range.
Standards
UC1, N, L, CE
Omron CP1L CPU's, Expansion Modules and Accessories
Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Manufacturer Series | CP1L |
| Number of Inputs | 12 (DC) |
| Output Type | Transistor |
| For Use With | SYSMAC CP1L Series |
| Input Type | DC |
| Number of Outputs | 8 (Transistor) |
| Voltage Category | 20.4 → 26.4 V dc |
| Network Type | USB |
| Minimum Operating Temperature | 0°C |
| Memory | 10000 (Data Memory) Words, 5000 (Program Memory) Steps |
| Output Current | 3.6 (Per Unit) A, 300 (Per Point) mA, 900 (Per Common) mA |
| Maximum Operating Temperature | +55°C |
| Programming Interface | Computer |
| Mounting Type | DIN Rail |
| Width | 110mm |
| Length | 86mm |
| Depth | 85mm |
| Program Capacity | 5000 Steps |
| Communication Port Type | USB 1.1 |
| Dimensions | 86 x 110 x 85 mm |
| Battery Backup | Yes |
| Programming Language Used | Ladder Logic |
| Number of Communication Ports | 1 |
