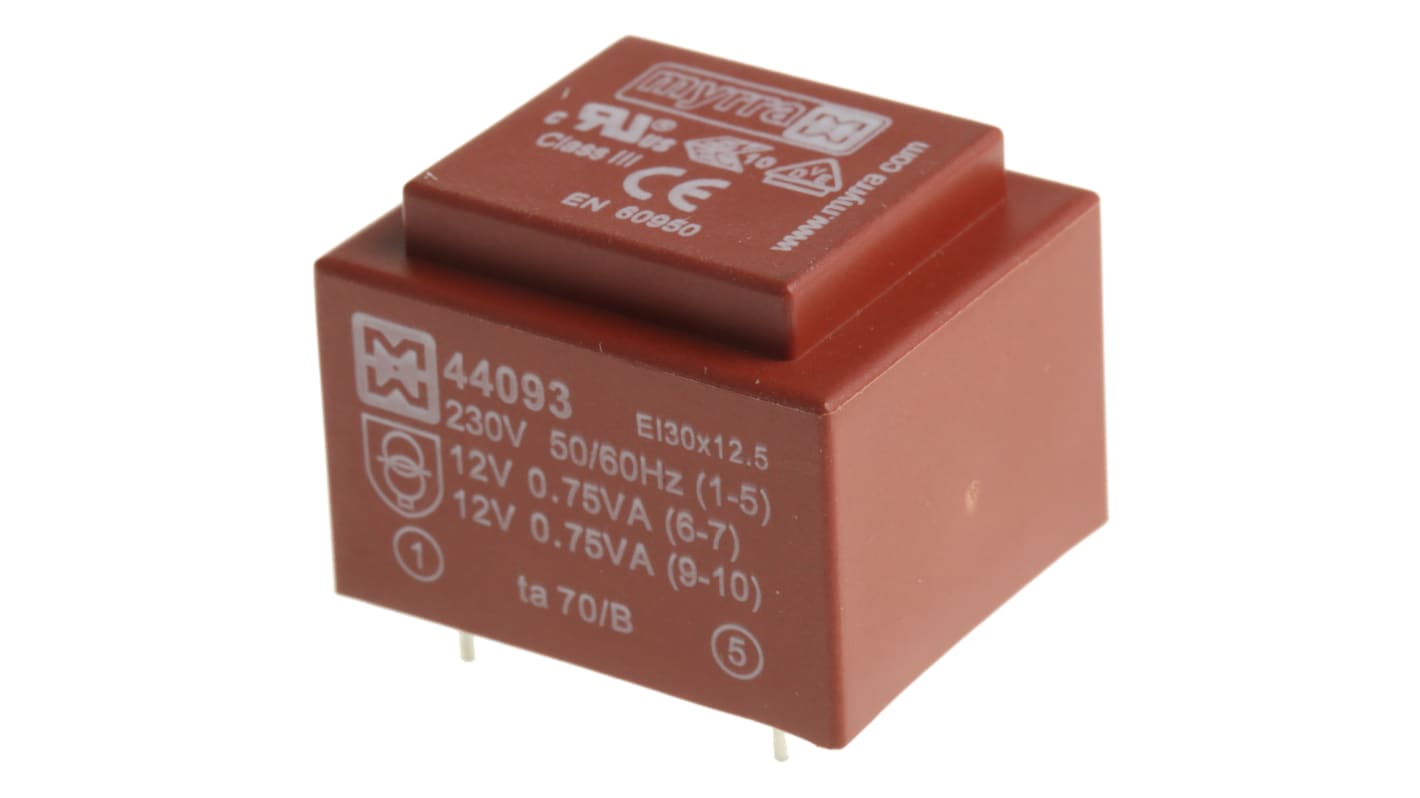

Myrra 12V ac 2 Output Through Hole PCB Transformer, 1.5VA

RS Stock No.:: 173-9670
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 44093
ผู้ผลิต / Manufacturer:: Myrra

Myrra 12V ac 2 Output Through Hole PCB Transformer, 1.5VA

7 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)

เพิ่ม / Added

ราคา / Price Each

THB167.47

(exc. VAT)

THB179.19

(inc. VAT)

Units	Per unit
1 - 24	THB167.47
25 - 49	THB162.45
50 - 99	THB157.43
100 - 249	THB154.07
250 +	THB150.71

RS Stock No.:: 173-9670
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 44093
ผู้ผลิต / Manufacturer:: Myrra

ข้อมูลทางเทคนิค / Technical Data Sheets

Datasheet

Legislation and Compliance

สถานะRoHS: ไม่สามารถใช้ได้

COO (Country of Origin):: FR

รายละเอียดสินค้า / Product Details

Type EI 30 - 1 VA → 2.3 VA series 44000 transformers

From Myyra, the 44000 Series of type EI transformers are professional safety transformers featuring an insulation of above 4000V. Inherently short circuit proof and comprising of non-flammable and self-extinguishing materials, the 44000 series of transformers are extrememly reliable.

Features and Benefits:

• Professional safety transformers with insulation above 4000V.
• For installation on printed circuit boards (according to European grid).
• Coupling in series or parallel.
• Vacuum-filled with resin to ensure materials withstand aging.
• Unit and 100% control on automated line.
• Secondary voltages are nominal load voltages on resistive loads.

Standards

UL 94-V0; VDE 0551; IEC 742

Approvals

UL, VDE

Encapsulated – Toroidal

Note

Fixing screws not provided

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Secondary Voltage Rating	12V ac
Power Rating	1.5VA
Primary Voltage Rating	230V ac
Number of Outputs	2
Length	32.6mm
Width	27.6mm
Depth	24.3mm
Dimensions	32.6 x 27.6 x 24.3mm
Weight	80g
Mounting Type	Through Hole
Maximum Temperature	+70°C
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
