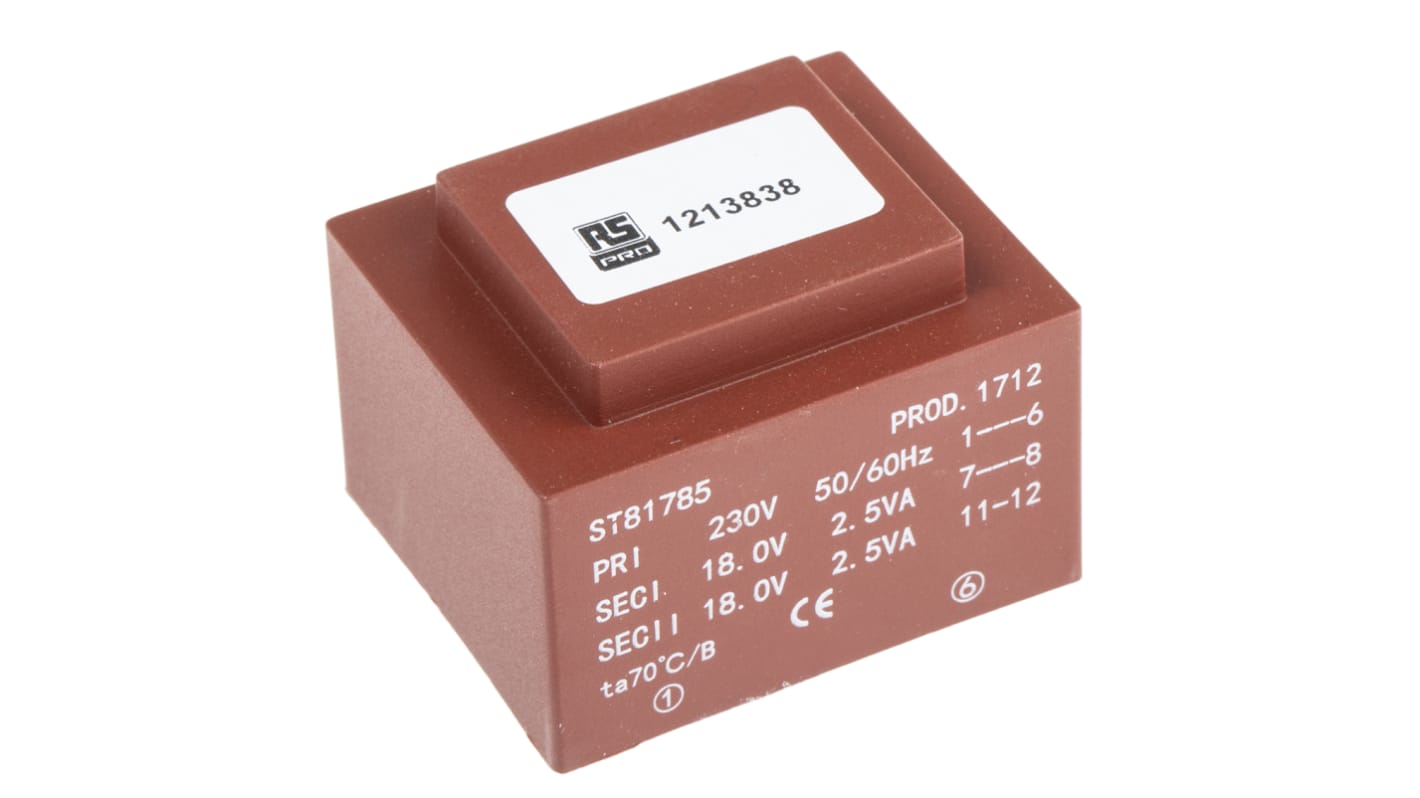

2 x 18V ac 2 Output PCB Mount PCB Transformer, 5VA

  • RS Stock No. 121-3838
  • ผู้ผลิต / Manufacturer RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
รายละเอียดสินค้า / Product Details

RS Pro PCB Standard Transformers

RS Pro PCB Standard transformers are low voltage mains transformers with a single 230 VAC 50/60Hz primary winding
These transformers have secondary windings suitable for series/ parallel connection to give a wide range of current options. They are 100% electric and flash tested. Double section bobbin, high efficiency and low temperature rise. These RS Pro transformers have low interwinding capacity and low radiated noise.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Secondary Voltage Rating 2 x 18V ac
Power Rating 5VA
Primary Voltage Rating 230V ac
Number of Outputs 2
Length 46.3mm
Width 38mm
Depth 32mm
Dimensions 46.3 x 38 x 32mm
Weight 200g
Mounting Type PCB Mount
Maximum Temperature +130°C
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
144 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 182.06
(exc. VAT)
THB 194.80
(inc. VAT)
Units
Per unit
1 - 9
THB182.06
10 +
THB172.96
