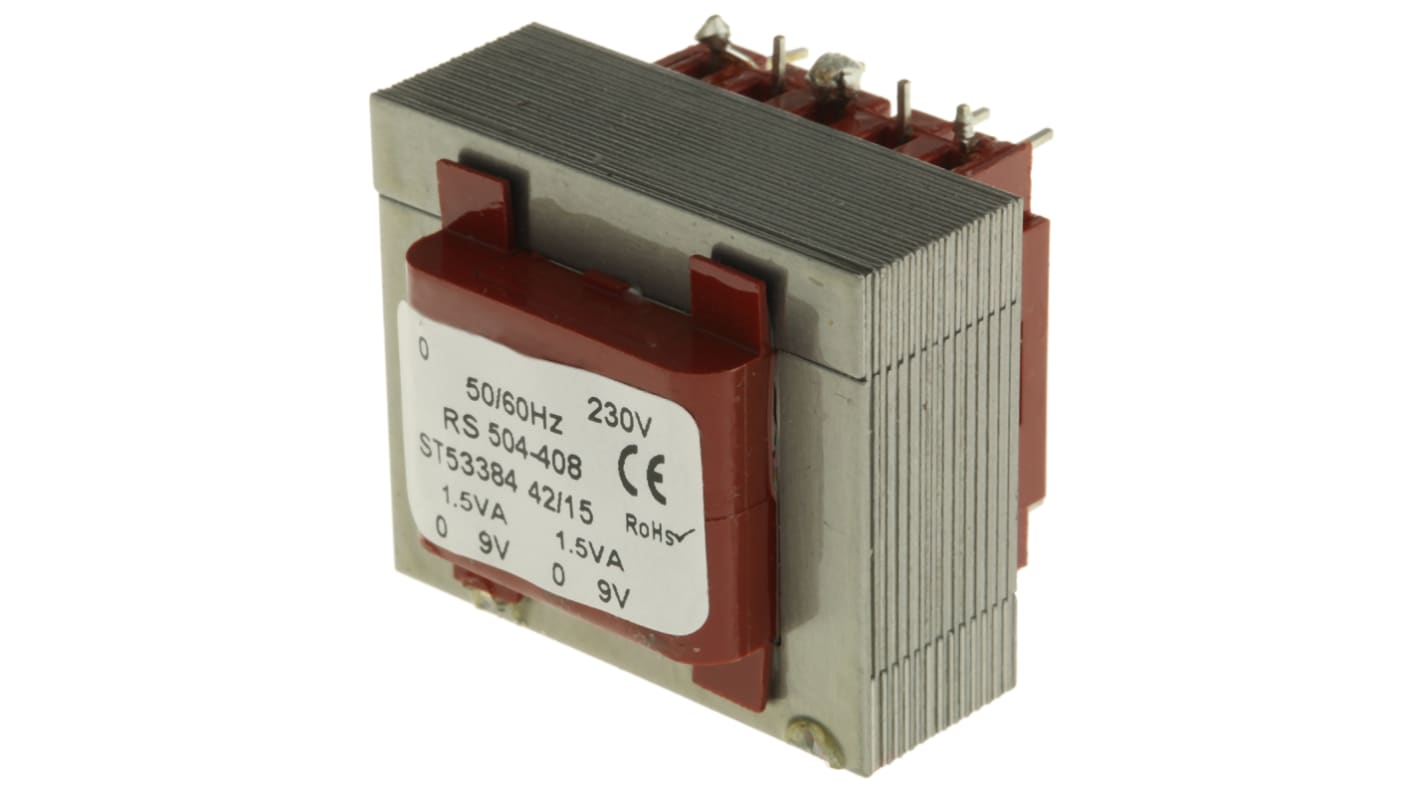

9V ac 2 Output Through Hole PCB Transformer, 3VA

  • RS Stock No. 504-408
  • ผู้ผลิต / Manufacturer RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
รายละเอียดสินค้า / Product Details

PCB Mounting, Flame Retardant Transformer with Thermal Fuse

Thermal fuse in primary providing overload and short circuit protection
Flame retardant materials to UL94-V0
Fully shrouded windings
Extra pins for secure board mounting
Designed and tested in accordance with EN 61558 (EN 60742) EN 60950

Construction Class 2
Insulation Class B (130°C)
Isolation (Primary to Secondary) 4.8 kV rms
Isolation (Windings to core) 2.4 kV rms
Pin Length x Diameter 5 x 1 mm
Maximum Winding Temperature Rise +55°C
Input Voltage 230 Vac
//media.rs-online.com/t_line/L805502-01.gif

Approvals

8888

Standards

EN 61558 (EN 60742); EN 60950

Open Frame - Laminated

PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

Double section metric bobbin construction
Full varnish impregnation

คุณสมบัติ / Specifications
คุณสมบัติ Value
Secondary Voltage Rating 9V ac
Power Rating 3VA
Primary Voltage Rating 230V ac
Number of Outputs 2
Length 38mm
Width 35mm
Depth 30mm
Dimensions 38 x 35 x 30mm
Weight 140g
Mounting Type Through Hole
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
11 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 293.90
(exc. VAT)
THB 314.47
(inc. VAT)
Units
Per unit
1 - 9
THB293.90
10 - 24
THB239.07
25 - 49
THB228.29
50 +
THB204.86
