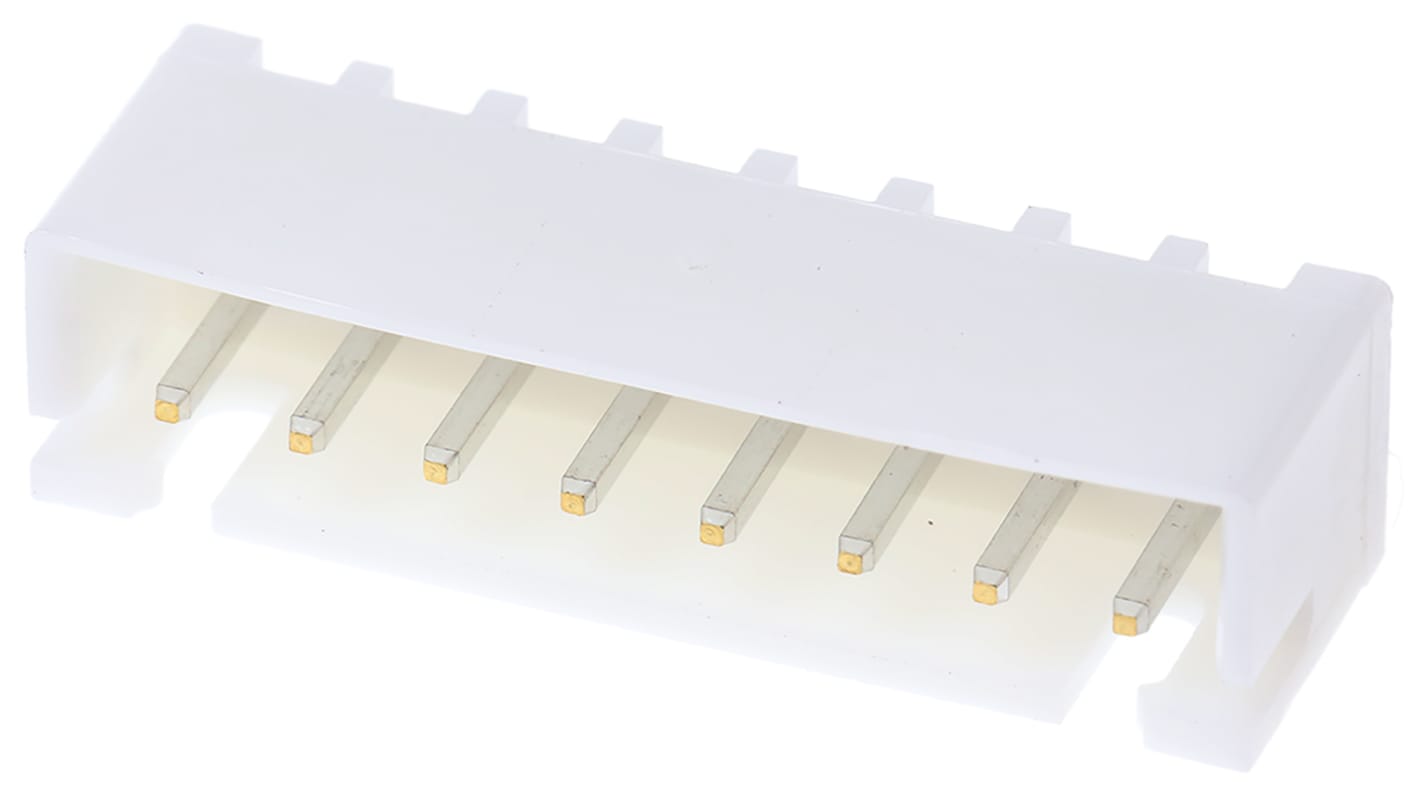

JST XH Series Straight Through Hole PCB Header, 8 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 820-1576
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B8B-XH-A(LF)(SN)
- ผู้ผลิต / Manufacturer:
- JST
980 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 5)
THB16.38
(exc. VAT)
THB17.53
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 60 | THB16.38 | THB81.90 |
| 65 - 120 | THB15.972 | THB79.86 |
| 125 + | THB15.726 | THB78.63 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 820-1576
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B8B-XH-A(LF)(SN)
- ผู้ผลิต / Manufacturer:
- JST
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
XH Shrouded Header
These XH Series Box-Type Shrouded Headers are available in Top Entry and Side Entry configurations. The wafer material of these XH Series Box-Type Shrouded Headers is PA66 with a rating of UL 94V-0, colour is natural (White). Posts are Tin plated Brass for these XH Series Box-Type Shrouded Headers.
For mating XH Series Receptacle Housings see stock number 820-1611 typical.
For mating XH Series Receptacle Housings see stock number 820-1611 typical.
Features
Wire size of 30AWG to 22AWG
Number of contacts varies from 2 to 20 pins
Voltage rating of 250VAC/DC
Applications
Industrial
Number of contacts varies from 2 to 20 pins
Voltage rating of 250VAC/DC
Applications
Industrial
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Series | XH |
| Pitch | 2.5mm |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Connector System | Wire to Board |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Brass |
| Series Number | B8B |
| Current Rating | 3.0A |
| Voltage Rating | 250.0 V |
